Features and Reference¶

The complete feature and reference material for HammerForge. For a quick overview and installation, see the home page.

Core Workflows¶

Draw and Shape Brushes¶

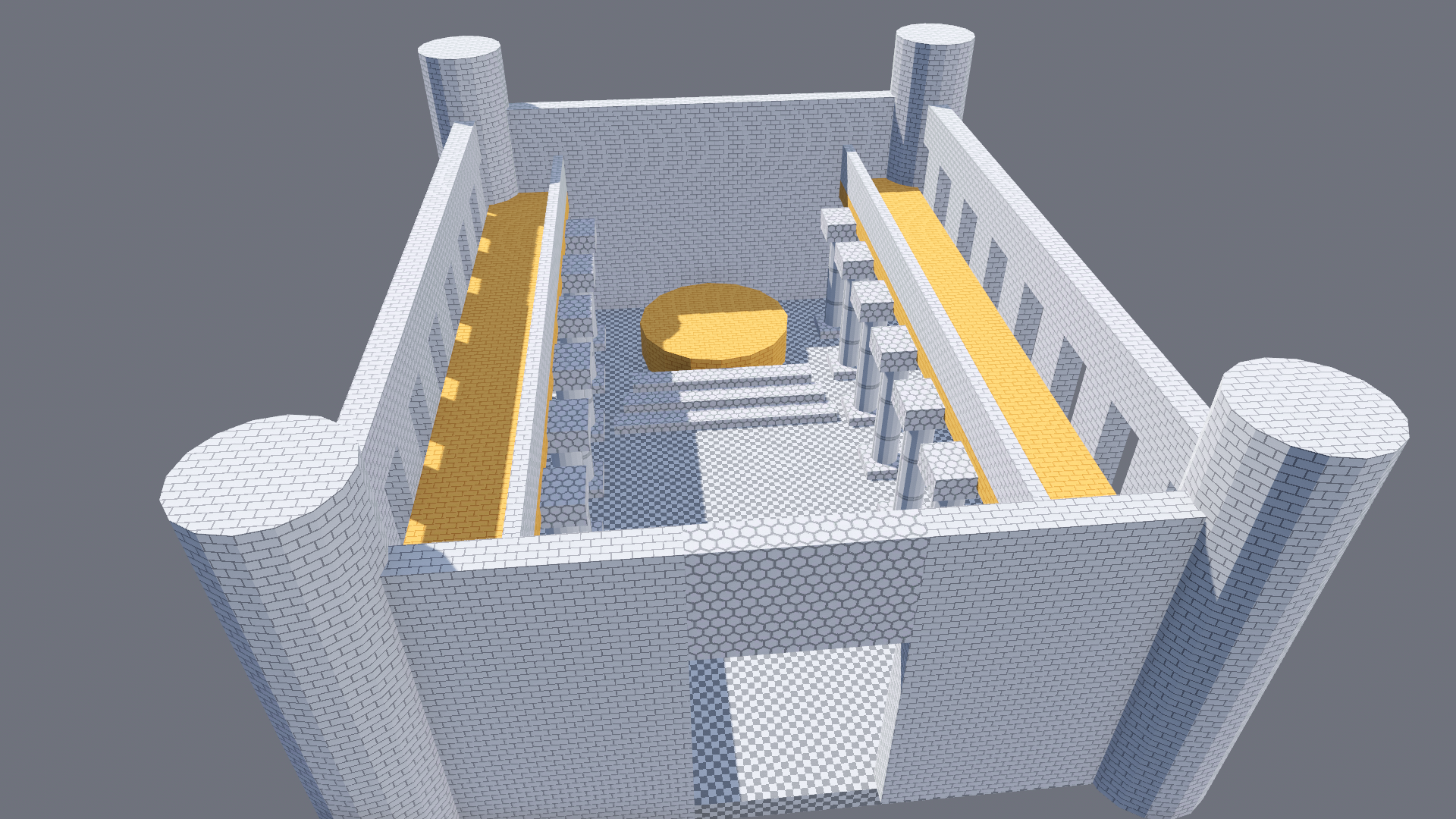

A HammerForge level seen from above: a rectangular hall with window bays along both side walls, corner towers, a colonnade and a galleried upper level

Two-stage CAD drawing: drag base, click height. Brushes support Add and Subtract operations with pending cut staging, so you can preview subtractions before committing.

15 shapes -- box, cylinder, sphere, cone, wedge, pyramid, prisms, ellipsoid, capsule, torus, and platonic solids, with Sides setting how smooth a round one is
Repeat Last Brush (Shift+D, or Repeat in the context toolbar) -- a stamp of the brush the last Draw made, its shape, size, Sides, Solid or Cutout and material; each click places a copy standing on the face or grid under the cursor, one undo step each, until Esc, a right click or another tool
Extrude Up/Down (E / U or Shift+E / J) -- click any face and drag to extend; a rectangle grows a box, any other face a prism of its own outline, and the new brush takes the face's texture; with Shift the drag moves the face itself along its normal on any brush, box or not, with the faces in its plane of the other selected brushes, and stops short of turning a brush inside out (#1712)
Hollow (Ctrl+H) -- shell a brush into walls of a configurable thickness. Any convex brush at any rotation; a cylinder becomes a tube
Structure section (Ctrl+Shift+A) -- pick a type and build it. The shortcut builds whatever the section is showing. Save a type's settings as a named preset, kept in the project so a team shares its house styles
Arch -- a parametric arch, one brush per segment. Radius, wall thickness, depth, arc degrees, segments and start angle
Stairs -- a flight, one brush per step, straight or turning L or U at a landing. Width, tread, rise or a total height, step count, solid-underneath or floating treads, nosing, and ramp collision for a player with no step up
Spiral stairs -- a flight that turns as it climbs, each tread the wedge that radius makes, with an optional newel post and ramp collision
Dome -- a hemisphere in rings, one brush per panel. Adjustable arc and sweep, and a wall that can go all the way to solid
Ring -- a round tube swept round a centre, one convex brush per segment. Radius, tube radius, ring and tube segments, start and sweep, for a pipe bend, a moulding or a handrail
Door Frame -- two posts and a flat or arched head round a clear opening, and the cut for the opening as a Pending Cut. Width, height, wall, frame, proud, head and segments; an Update resizes the cut with the frame
Trim Run (Shift+Alt+T) -- a skirting or cornice along wall faces picked in Face Select, mitred at every corner, inside and out, and stopped square at every doorway a Cutout makes. Edge, offset, and the Path tool's trim profiles; Update keeps the run and Re-pick reads it again from the faces picked now
Live structures -- every structure remembers what made it. Select a piece and the Structure section becomes an editor: change a number and it rebuilds in place, where you moved it to, keeping the materials painted on it and the brush entity its pieces were tied to. It says first if a rebuild would overwrite hand edits. Detach when it should stop being live
Clip (Shift+X) -- split a brush along a plane. Any convex brush, at any rotation; a piece that is still a box stays a box unless it is thinner than 0.1, and every piece keeps its faces' textures, surface paint and sculpts
Clip to Face Plane (Shift+Alt+X) -- cut along the plane of a selected face, which is the cheapest route to an angled wall or a chamfered corner
Sweep Faces -- carry the faces picked in Face Select along a straight run, an arc or an S bend as convex pieces that meet face to face, repeated with Iterations, narrowing or widening to an End width and height scale; a bend too tight is drawn red and refused, and the pieces keep the faces' materials, grouped in one undo step; an Arc's pivot and end are handles in the viewport, and the sweep stays a structure whose values the Structure section changes after
Carve (Ctrl+Shift+R) -- boolean-subtract one brush from all intersecting brushes, using the carver's real face planes, so the carver can be rotated or a cylinder. A doorway carved through a painted wall leaves the paint on the wall
Merge (Ctrl+Shift+M) -- combine 2+ touching brushes into the one convex solid they make, centred on it, keeping each outer face's material and UVs; an L or a doorway is refused
Hull of Selection -- replace 2+ brushes with one brush, the convex hull of all their corners, touching or not; faces on an old face's plane keep its look, new faces take the Active Material, with a green preview and one undo step
Hull Tool -- click points, double click a face for its corners or Shift drag a face to pull them out, and Enter makes one brush around them; a flat set is refused with the reason
Intersect (Ctrl+Shift+I) -- keep only the volume 2+ brushes share, as one convex brush: the first selected is cut down by the planes of the others, and each face keeps the look of the brush whose plane it lies on. A quarter round column from a box and a cylinder in one step
Rotate (R / Shift+R) -- turn the selection by a configurable step about the locked axis, or Y. Texture Lock carries the texture round with the brush, upright, the same way it carries one you move. Turn it off and the texture keeps its place in the level
Flip (Shift+M) -- mirror the selection across the locked axis, or X. Winding is preserved, so a mirrored brush never bakes inside out, and a sculpted displacement is mirrored with its face
Shear -- lean the whole selection, from a handle on a side of its box or typed in metres per metre or degrees; every corner moves by the one shear, so brushes that met still meet, and point entities move without turning
Mirror Copy (Alt+M) -- keep the selection and add a mirrored copy across each axis ticked in Selection Tools, and each combination of them: X and Z give three. With Selection Edge each copy lands flush beside the original; without it the planes go through the Pivot. One undo step
Offset (Alt+G) -- move the selection by a typed X, Y and Z, along the world's axes or its own: brushes and entities, or in vertex mode the picked vertices, or in Face Select the picked faces by their corners. Exact, one undo step, and a move that would dent a brush is refused with the reason. Alt+G then Enter repeats it
Pick Pivot (Alt+P) -- click a brush vertex, edge midpoint or face centre to turn, flip, ring an array and mirror about it, marked with a cross and saved with the level. Clear Pivot (Shift+Alt+P) goes back to the selection's centre
Reset Rotation (Alt+R) -- clear a rotation and keep the geometry. A quarter turn folds into the brush size losslessly, and any scale set with Godot's own gizmo is left alone, because that is not rotation
Apply Rotation and Scale -- fold a brush's rotation and scale into its shape, so its size reads in metres and nothing moves. A box stays a box and an uneven sphere becomes an ellipsoid; anything else becomes CUSTOM and the toast says so
Convert to Brushes (palette, or the Space menu on a mesh or CSG node) -- a convex mesh or a CSG primitive becomes a brush where it stands, with its material and UVs; one Ctrl+Z brings the node back
Arrays -- Linear, Radial (copies around an axis) and Grid (a 3D lattice) layouts in the Duplicate Array section. Select any piece of one to load it back: Create becomes Update Array, with Detach beside it, and Update says how many copies it would move back or rebuild over, a stroke painted on one included, before it does
Bevel -- round off sharp edges with configurable segments and radius (vertex/edge mode); a sculpt on a face it trims is trimmed with it
Face Inset -- shrink a face inward and optionally extrude along its normal; a sculpt stays on the surface it was on
Numeric input -- type exact dimensions during any drag or extrude; a base takes width, depth and height as 6,4,3, with Tab or a comma between them
Cancel preview with undo -- Ctrl+Z cancels an unfinished draw or extrusion and keeps earlier actions in history
Drawing plane -- Grid Up/Down, Reset and Align Grid to Selection place an axis-aligned plane; the HUD shows its axis and position
Turned grid -- the floor grid turns about up to a picked edge, a turned brush or a typed Angle, for a part of a level set at an angle; draws build square to it, and the resize handles, vertex drags, Snap to Grid and the arrow nudges follow its lines
Draw hover preview -- before the click, the face a draw would start on is tinted for the grid's level, a raised face or one that is not flat, and a cross and two bright grid lines mark the snapped start
Draw on Face (L) -- a draw that starts on a brush face builds on that face's plane and pulls along its normal: a Solid grows out of a wall and a Cutout cuts into it
Resize gizmo with world-space grid snap, opposite-face anchoring under rotated/non-uniformly scaled parents, and shape-aware sizing: spheres stay uniform, cylinder/cone/capsule X/Z handles change one shared radius, and capsules can never be resized shorter than their diameter

Vertex Editing¶

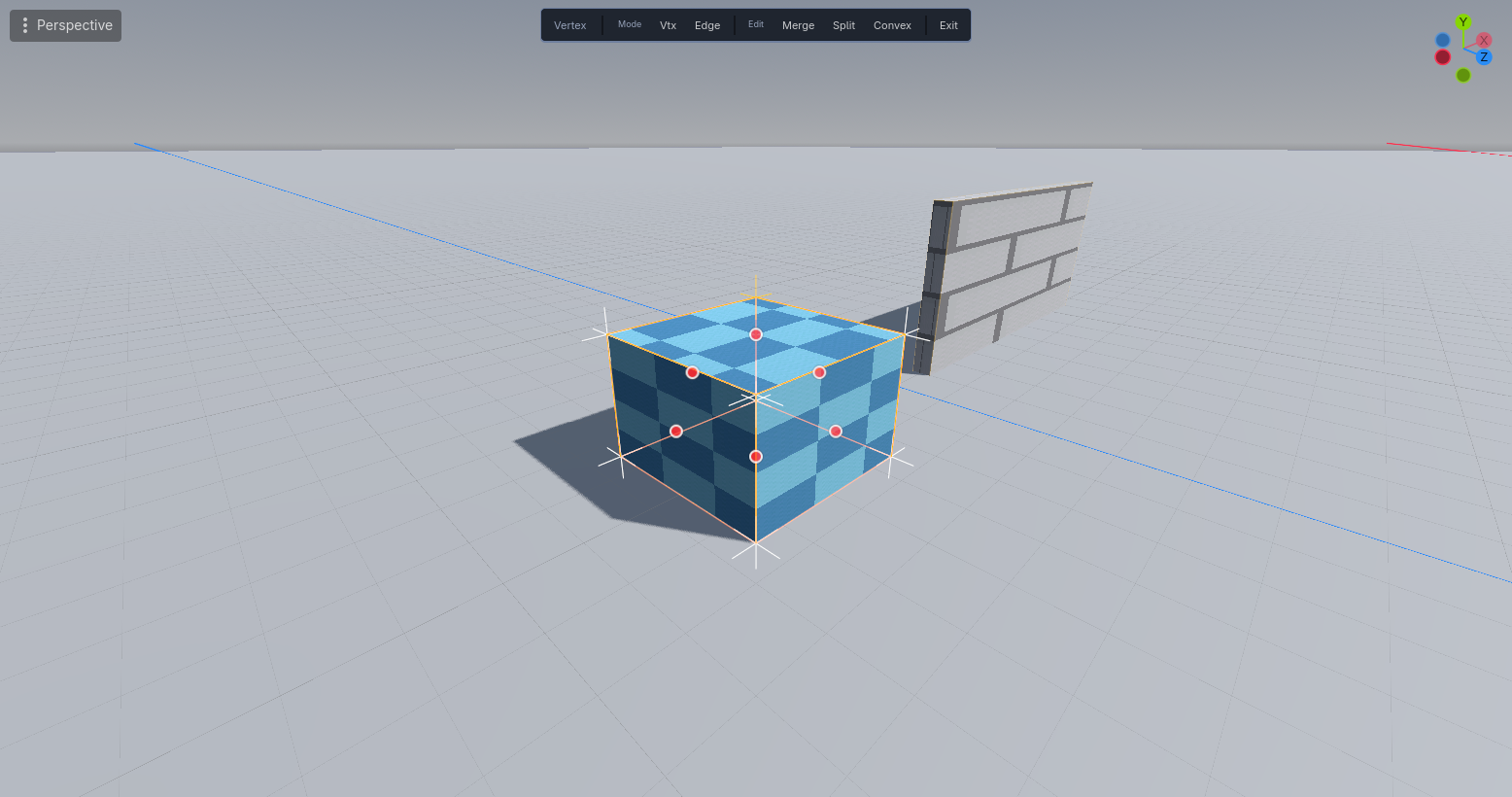

Vertex mode on a box: a cross at each corner and the box's edges, with the Vertex toolbar above

Precision vertex-level editing for fine-tuning brush geometry:

Vertex mode (V) -- select and move individual brush vertices with convexity enforcement
Edge sub-mode (E) -- toggle to select, move, split, and merge edges
Edge splitting (Ctrl+E) -- insert midpoint vertex on a selected edge
Vertex merging (Ctrl+W) -- merge selected vertices to their centroid
Wireframe overlay -- color-coded edge display (gray default, orange selected, yellow hovered)
Clip to Convex -- repair non-convex brushes by recomputing the convex hull with UV inheritance
Many corners at once -- a corner several selected brushes share moves as one, a drag on empty space box selects corners, Delete removes them and Alt+Click adds one, and the arrows, R and Scale Vertices move, turn and scale the selected corners (#1713)

Polygon Tool¶

Draw any outline that does not cross itself and extrude it into brushes:

Polygon tool (P) -- place the first vertex on an exact visible surface or the forward construction plane, then add vertices from that horizontal placement plane; Enter or auto-close to finish
Concave outlines -- split into convex brushes on close, cut along the line of a wall where possible, grouped and made in one undo step; an outline that crosses itself is refused with a toast
Segment lengths -- each edge shows its length while placing; hold Shift to lock an edge to X or Z
Height extrusion -- drag to set height after closing the polygon
Shared snapping -- placement uses the active Grid, Vertex, Center, Edge, Perpendicular, and reference-line snap modes

Path Tool¶

Create corridors and paths by placing waypoints:

Path tool (;) -- place the first waypoint on an exact visible surface or the forward construction plane, then add waypoints from that horizontal placement plane; Enter to finalize
Segment lengths -- each segment shows its length while placing; hold Shift to lock a segment to X or Z
Rectangular cross-section -- configurable width and height per path
Mitred corners -- each segment is one brush cut on its corners' bisector planes, so neighbours meet on one plane with no overlap and no extra brush; a corner sharper than about 29 degrees has its outside tip cut flat
Closed loops and Side -- click the first point to close the path and build it; Side stands the cross-section Left or Right of the clicked line instead of centred on it, so a room's walls can keep the room the size it was drawn
Curves -- Curve Smooth runs the path through the points as a Catmull-Rom curve, cut into Curve Segments convex pieces a span that meet face to face; click and drag to pull out a tangent handle; a bend tighter than the path can turn is outlined red and refused by name
Auto-grouping -- all segment brushes share a group ID
Auto-stairs -- step brushes along sloped segments with configurable step height
Auto-railings -- top rails + posts on both sides with configurable height, thickness, and post spacing
Auto-trim strips -- edge strips alongside path with material auto-assign
Trim profiles -- Flat, Chamfer, Round, Cove, Ogee or Stepped, a concave profile cut into convex horizontal bands; Trim Flip hangs it from the path's top for a cornice

Snap and Align¶

Geometry-aware snapping goes beyond a simple grid:

Mode	Key	What it snaps to
Grid	G	Regular grid intersections
Vertex	V	Corners of existing brushes (8 per box, a wedge's or a polygon's own corners)
Center	C	Center points of existing brushes
Edge	E	Midpoints of existing brushes' edges
Perpendicular	P	Closest point on an existing brush's edge

Closest candidate within threshold wins. Modes combine freely. A marker on the snapped point says by its shape, and a word beside it, what the point is on, and Tab steps to the next kind in reach; Next Pick: Vertex Only and its siblings limit one pick to one kind (#1691). Resting the pointer on a snap point runs dotted guides from it along the world axes; a point lands on a guide or where two cross, a typed number puts it that far along one, and Point Filter: X and Z from Here builds a point from two others (#1692). A brush of more than 64 faces snaps to its box. Hold Ctrl during a draw, a resize handle or a vertex drag to turn grid snap the other way for that drag, and the HUD says Snap off or Snap on. With V on, or Alt held, a vertex drag lands on the nearest vertex of another brush within 10 pixels, and a resize handle stops level with one, with a marker on the target. Alt+Arrow nudges a tenth of the grid step. The Measure tool can set a custom snap reference line with Ctrl+Click for alignment along arbitrary axes. Texture Lock preserves UV alignment for HammerForge move and resize actions, including nudge and Move to Floor/Ceiling. Godot's native Node3D transform widget leaves the UV settings alone, so a brush moved with it behaves as though Texture Lock were off and the texture keeps its place in the level. Move to Floor/Ceiling (Ctrl+Shift+F/C) moves the selection straight down or up as one piece until it touches a shown brush. Snap to Grid (Ctrl+B) puts each selected brush's bounds corner, or entity's origin, on the nearest grid point, keeping size and rotation; in vertex mode it does the same for the selected vertices. UV Justify offers fit/center/left/right/top/bottom/stretch/tile alignment for selected faces, Align to Edge turns the texture to run along a face's edge, Fit Repeats shows a whole number of repeats, and Fit Strip fits one strip of a trim sheet.

Paint Floors and Terrain¶

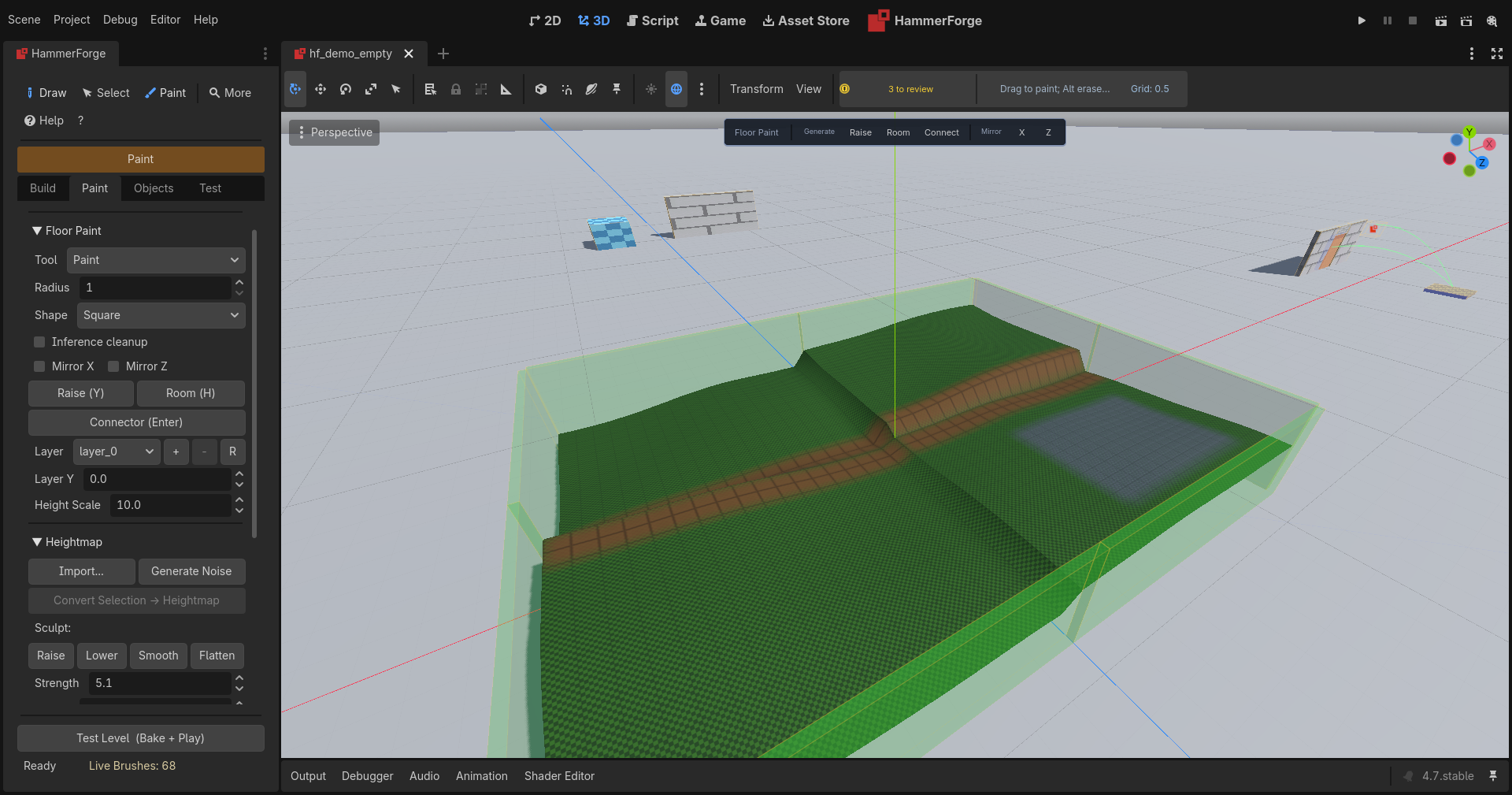

Painted ground on a noise heightmap with a path and a patch blended in, and the Floor Paint and Heightmap sections open in the dock

Grid-based paint layers with chunked storage for large worlds:

Tools: Brush (B), Erase (E), Rect (R), Line (L), Bucket (K), Blend (N)
Fast viewport loop: Shift+P enters Paint mode; R then LMB-drag creates a rectangular walkable room without opening the dock
Stroke modifiers: Alt+LMB temporarily erases, Shift+LMB locks the first dominant grid axis, Ctrl/Cmd+LMB samples a cell material, and Esc restores a cancelled stroke
Live feedback and undo: the existing banner shows hovered cell/footprint plus live cells and metres; each changed stroke is one undo entry, including lost-release recovery
Paint-then-raise: Y adjusts wall height for the last Brush/Rect footprint as a clearly chained second undo; unrelated wall runs keep their own height
Mirrored paint: X and Z toggle grid-origin mirroring, off by default and combined with the source stroke in one undo
Room stamp: H repeats the last Rect dimensions as a filled floor with raised boundary walls in one undo
Opt-in inference: default-off one-cell denoise, hole/gap repair, and corridor widening, scoped to the stroke's dirty chunks and local halo
Sculpting: Raise, Lower, Smooth, Flatten brushes for interactive terrain editing with configurable strength, radius, and falloff
Shapes: Square, Circle with adjustable radius
Heightmaps: import PNG/EXR or generate procedural noise -- per-vertex displacement via SurfaceTool
Displacement surfaces: Source-style subdivided face grids (power 2-4) with Raise/Lower/Smooth/Noise paint modes, sew adjacent displacements, elevation scale
Convert Selection to Heightmap: select brushes → rasterize top faces → create sculptable terrain layer
Material blending: four-slot shader with per-cell blend weights painted directly on the grid
Live connectors: touched cross-layer boundaries show ramp/stair ghosts; Enter commits persistent definitions in one undo and Esc dismisses them
Auto-connectors: optional bake-wide ramp/stair detection with mode selection (Ramp/Stairs/Auto), configurable step height and width; confirmed boundaries also bake when automatic detection is off
Foliage & Scatter brush: circle/spline shapes, density preview via MultiMesh (Dots/Wireframe/Full), slope/height filtering, align-to-normal, commit as permanent MultiMeshInstance3D
Region streaming: sparse chunk loading for open worlds

Materials and Surface Paint¶

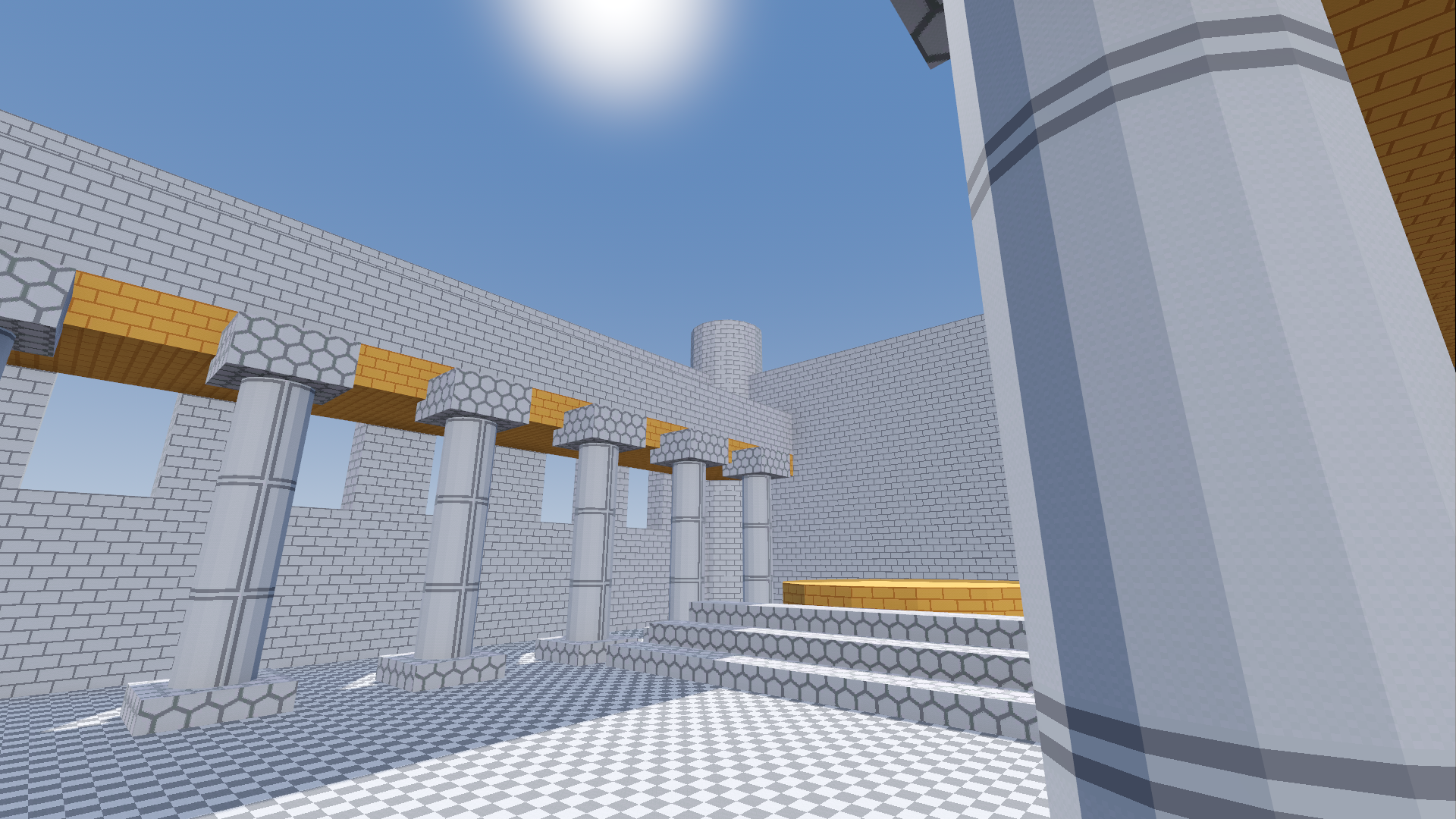

Low view up through a HammerForge colonnade toward the gallery overhead, lit by sunlight

Visual material browser -- thumbnail grid with search, pattern/color filters, and Prototypes/Palette/Favorites views; marks what the level uses with a face count, an In Use view with the most used first, a search that takes every word, Select Faces and Select Brushes Using This, and a thumbnail size slider (#1725)
150 built-in prototype textures (15 patterns x 10 colors) -- click Refresh Prototypes for instant greyboxing with visual browsing
Add Texture Folder -- a folder of images becomes palette materials in one step, brick_albedo, brick_normal and brick_roughness one brick with all three maps; an image dropped on a face paints it with its set's material
Texture Picker (T key) -- eyedropper tool samples material from any face
Apply Picked Look (Alt+T) -- gives the selected faces the picked face's material, projection, scale, offset and rotation in one undo step, so faces on separate brushes line up
Hover preview -- hovering a thumbnail temporarily previews it on selected faces
Replace Material -- swaps one material for another on every face that wears it, across the level, the selection or shown brushes, in one undo step; the faces it changed become the face selection
Right-click context menu -- Apply to Faces, Apply to Whole Brush, Set as Active Material, Replace Material, Toggle Favorite, Copy Name
Recent row -- the last eight materials applied to faces or brushes, newest first, kept per user beside the favorites; a favorite whose file is gone and an empty palette slot show as "!"
Apply Favorite (Alt+1 to Alt+9) -- applies favorite N to the selected faces or brushes in one undo step; the context toolbar strip and the Favorites view show the same numbers
Modal Face Select mode for painting individual faces; entering hides object transform/resize gizmos, manual exit restores the prior object selection, and selecting an object in the Scene tree returns directly to object editing
Surface paint with per-face splat layers, weight images, and live preview; Alt erases and each stroke is one undo step
UV editor with per-vertex drag handles and reset-to-projection, the face's texture drawn under its outline, x2 and /2 with a U and V link, Flip U, Flip V, Rotate 90, Fit U and Fit V, and UV Snap with a grid; a corner drag is one undo step. It sits under Face Tools on the Paint tab with Displacement and Face Inset, where faces are picked
Face projection with Align to Face and Align to World -- lays a texture in the face's own plane, U level and V down the slope, so a ramp repeats as a wall does
Wrap -- carries the selected face's texture over an edge onto each face clicked, one undo step a click, round a pillar or along a corridor
Linked surfaces -- Link, Unlink and Select Group; linked faces share one mapping that a move, resize, cut or vertex edit keeps, and a fitted surface is fitted again
Texture Gizmo (UV Editor, or Giz on the context toolbar) -- drag in the viewport to slide, stretch and turn the texture on the faces picked in Face Select, one undo step a drag
Drop a material file -- drag a .tres or .material from Godot's FileSystem dock onto a brush face to paint it, or every picked face; a file new to the palette is added in the same undo step
Hidden faces -- mark a face nobody will see, such as the underside of a floor or the back of a wall against another, with the striped Hidden swatch, Alt+T or Hide Faces Against Solids; the bake leaves it out of the mesh, the lightmap and the occluders and keeps its collision, says how many faces and how much area it left out, and a .map writes it as skip
Smoothing groups -- round brushes and the curved faces of arches and domes shade smooth, the same on every bake path and through cuts; the UV Editor's Smoothing box sets a face's group
Material library persistence -- Save Library and Load Library in the Paint tab write and read the palette as JSON resource paths, reporting the slots they could not record or resolve

Entities and I/O¶

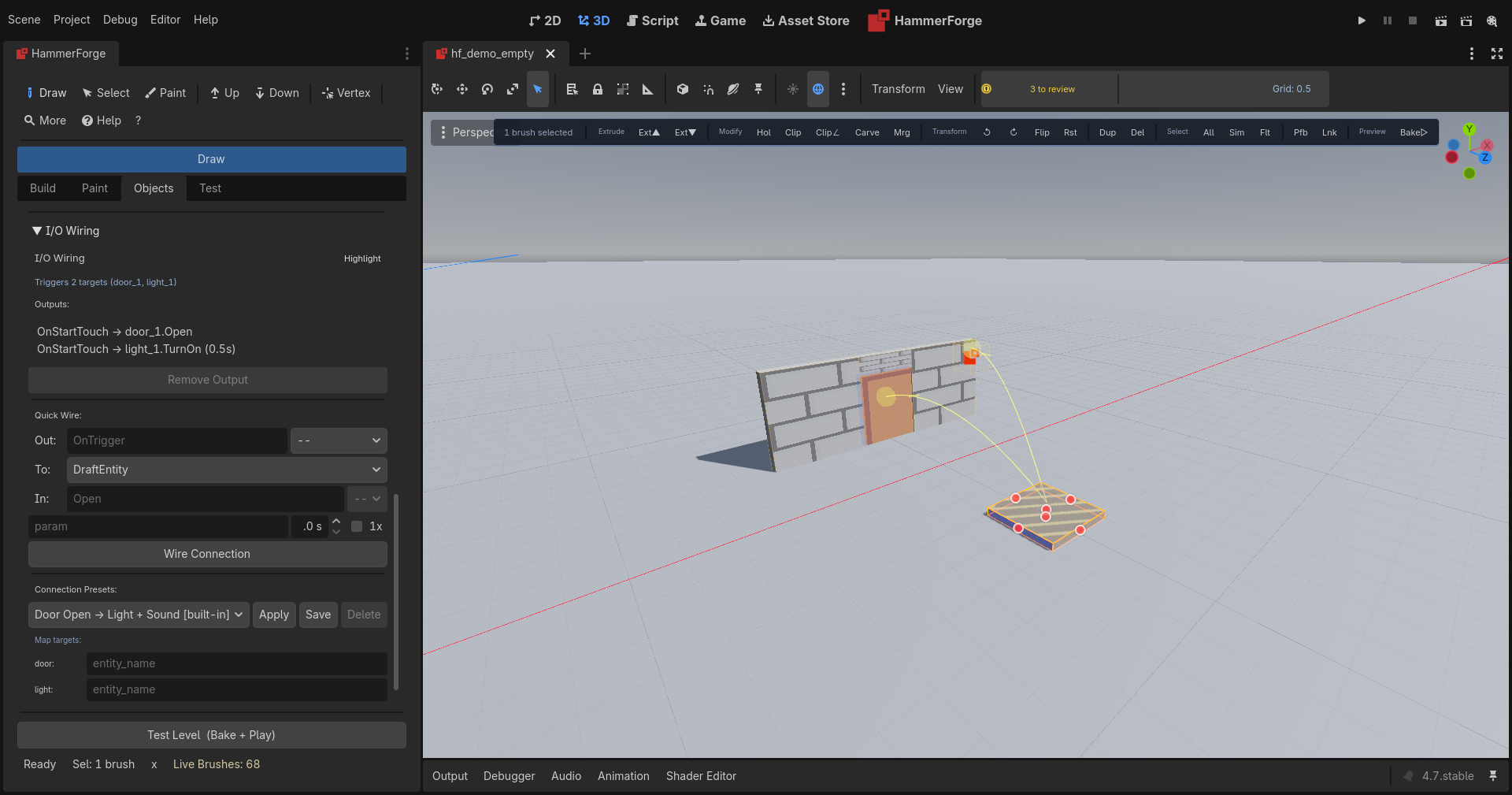

A trigger wired to a door and a lamp: the I/O Wiring panel lists both outputs and the viewport draws the wires

Entity classes from an FGD -- point, solid and base classes, typed properties with choices and flags, inputs and outputs, several files in order, and Convert to JSON
Data-driven entity types from entities.json plus a per-project res://hammerforge_entities.json overlay (point entities, brush entities like func_detail, func_wall, func_clip, func_physbox, func_illusionary, trigger volumes)
Clip brushes (func_clip) -- collision with no mesh, for a smooth slope over steps or rubble or a barrier along a ledge. A clip draws violet in the editor, bakes as a convex hull on its Layer, cuts the navmesh, and comes in from and goes out to a .map as clip faces
Source-style I/O connections -- wire output events to target inputs with parameter, delay, and fire-once options; automatically translated to Godot signals on bake/export via HFIORuntime dispatcher (direct method calls, snake_case fallback, generic handler, or user signal emission)
Smart auto-routed connection lines -- quadratic Bezier curves with arrowheads, parallel route offset, color-coded by output type (cyan=OnTrigger, red=OnDamage, yellow=OnUse, etc.) and dimmed by delay
I/O wiring panel -- quick-wire form (output/target/input/param/delay/once), connection summary, and preset picker embedded in the Objects tab. A named brush entity is offered once by its name, and a wire aimed at any brush of a door or a trigger reaches the whole of it in the game
Connection presets -- 4 built-in patterns (Door+Light+Sound, Button→Toggle, Alarm Sequence, Timer Lights) plus user-saved presets with target tag mapping
Highlight Connected -- toggle to pulse-highlight all entities linked to the selected one, with summary counts in the context toolbar
Declarative property forms -- dock auto-generates typed controls (string, int, float, bool, enum, color, vector3) from entity definitions
Drag-and-drop placement from the entity palette, with a button per preset such as a warm ceiling lamp
Light presets and projectors: named property sets per class, and a projector texture that shapes a point or spot light's beam
Sound preview: pick a sound's file and play it in the editor from the Entity panel
Clean operation styling -- solid brushes use an uncluttered green-tinted surface, subtractors retain a clear red semantic outline, and brush entities use an understated blue tint, a clip brush violet. Hover and selection use sparse, shape-specific structural profiles; render-triangle topology is reserved for explicit editing and bake-preview modes

Organize Your Level¶

Adjust Last -- after Hollow, Clip, Nudge, Rotate or an array, the settings it ran with in a corner of the viewport; a change undoes the step and makes it again, as one step; settings saved by name
Accessibility -- follows the system's motion, contrast and transparency settings, a Motion setting of its own, every dock button in reach of Tab, every control named for a screen reader, and toasts read out
View Filters -- hide a kind in the editor: world, cut or clip brushes, triggers, brush entities and point entities by kind or class, structures, prefab copies, decals, I/O wires or cordons; a rule, so one made later is hidden too, never saved, ignored by the bake, with a footer chip while any is on; Show Face Direction draws every face's front blue and back red, so a face pointing into its brush shows from outside
Visgroups -- named visibility groups ("walls", "detail", "lighting") with per-group show/hide. Current makes one the group new work joins, Leave out of bake keeps one in the editor only, and Locked keeps every tool and the agent bridge off its members. Isolate, Hide Sel, Previous and saved Views change what is shown without changing the level
Grouping (Ctrl+G / Ctrl+U) -- persistent named groups that select and move together, groups inside groups, a Groups list with member counts, Open Group to change one member without ungrouping, and a duplicate of a whole group as a group of its own
Cordon -- restrict bake to one or more AABB regions with yellow wireframes; skip everything outside them. Two rooms at opposite ends of a level bake without the space between. Each cordon has a name and its own switch, so one can sit out a bake and keep its bounds. A min/max pair entered in either order means the same region, and a cordon with a non-finite corner is refused rather than stored
Reference cleanup -- deleting brushes auto-cleans group/visgroup membership and warns about dangling entity I/O connections
Duplicator -- create N copies of a brush with progressive offset
Prefabs -- save brush + entity groups as .hfprefab files with variants, tags, and live-linked propagation. Drag from library to instantiate with new IDs and remapped I/O; each placed copy's entities get names and ties of their own, so two placed doors are two doors, and a variant switch or a Pull keeps the copy's names. Brush and entity ids, group membership and visgroup membership are all left behind on capture, because they only mean something in the level the selection came from. A linked copy can Keep chosen properties through a Pull, Copies selects every copy of its prefab, and Unlink makes one ordinary brushes and entities
Measurement (M key) -- persistent multi-ruler with angle display, Shift+Click chaining, and snap reference alignment
Clip tool (C key) -- cut the selected brushes along a plane placed with two or three points, keeping either piece or both, as one undo step (#1711)
Decal placement (N key) -- raycast decals onto brush surfaces with live preview
Real-time cut preview -- toggle overlays of the cut between additive and cut brushes, only where the bake cuts: a brush tied to an entity class is never cut, and a cutter tied to one cuts nothing
Geometry previews before commit -- carve and intersect (green), clip (cyan + orange plane), and hollow (yellow) show wireframe overlay of resulting pieces with confirmation dialog before executing, which says when a sculpt cannot follow the cut

Bake and Export¶

Option	What it does
Bake	CSG assembly to merged meshes + collision (trimesh, per-brush convex, or per-visgroup partitioned)
Bake profiles	Editing and Shipping set the bake options in one undoable step; save your own to keep every option under a name, on your machine or in the project for the team
Chunked bake	Split output by spatial chunks
Cordon bake	Restrict to one or more AABB regions
Face materials	Bake per-face materials without CSG
Heightmap floors	Bypass CSG, bake displaced meshes directly with collision
LODs	Auto-generate level-of-detail meshes, including brush entities that keep their own nodes
Lightmap UV2	Unwrap static geometry, including named brush entities; warn with the path of static meshes missing UV2
Navmesh	Bake navigation mesh; it runs through doors and around `prop_static` collision
Dry run	Preview bake counts without building. Counts through the cordon and Bake Visible Only, so the number matches what the bake takes
Bake Selected	Bake only selected brushes (merged into existing output, in place of their earlier selection bake; a brush the last full Bake holds bakes the whole level)
Bake Changed	Rebuild the level when brushes or painted ground were dirty-tagged since the last successful bake, and nothing when none were; with Navmesh on, a prop moved, added or deleted counts too, and so does a paint connector confirmed or undone
Preview modes	Full / Wireframe / Proxy toggle for ultra-fast iteration
Material Atlas	Pack albedo textures into a single atlas to reduce draw calls (face materials mode)
Collision Mode	Trimesh (legacy), per-brush convex hulls, or per-visgroup partitioned convex bodies
Bake Visible Only	Skip hidden visgroups and invisible brushes
Unwrap UV0	Per-vertex planar UV projection for surfaces without UVs
Check Issues	Flag degenerate, floating, overlapping, non-manifold, open-edge, non-planar, and micro-gap brushes, and faces pointing into their brush. Auto-fix: vertex weld + planarity correction, and inward faces turned back on a convex brush
Bake estimate	Time estimate scaled from the brushes the last bake took, with a tip to chunk a large level so the game can cull it
Validate	Check level integrity before bake, including brush stairs, doorways and ramps measured against the playtest player, and brushes that add nothing to the bake: a cut that cuts nothing, a solid wholly inside another, two the same to within a millimetre; findings are listed with Select on the object each names, can be accepted with a note so they stop coming back, and follow an edit within a second; Checks chooses which kinds run for the project (#1731)
.map export	Classic Quake or Valve 220 format
.glb export	glTF binary for external tools
Compare With	What changed since another `.hflevel`, in the viewport and the Console; `tools/compare_levels.gd` prints the same list for CI or a pull request
Test Level	Check, bake, validate spawn (including a spawn inside a brush, with Fix & Play to move it clear), and run with the FPS controller
Play from Camera	Test from the editor camera position and yaw
Play Selected Area	Auto-cordon to selection, bake + play that region only
Export Playtest	Bake + pack a playable scene with player, spawn pose, nested geometry/collision, lighting, and auto-wired I/O; exported levels initialize only the runtime core, not editor tools
Export Game Scene	Bake + write the `.tscn` a game loads, beside the level scene, on the profile picked under Export with (Shipping to start); the Profile list and its options hold while it bakes, and the level's own options come back afterwards
Wire I/O	Auto-translate entity I/O connections to Godot signals in baked output
Cast Shadows	On, Off, Double Sided or Shadows Only for the level, for a visgroup, or for a brush in Selection Tools; a brush's own beats its visgroups', which beat the level's
Lightmap Scale	Per brush, 0.125 to 8, so a floor the player looks at gets more lightmap texels than a ceiling nobody does
Ramp collision	Stairs and Spiral Stairs set to Ramp bake a smooth slope in place of their steps' collision, with the steps still drawn; a stair the ramp cannot fit keeps its steps and the Console says why

Moving doors use Dynamic GI, so static lightmaps leave them out. Named brush entities retain their brush material override.

Core Loop¶

The default editor is the five-step greybox path. Extra overlays stay off until you opt in.

Draw brushes (Add / Subtract)
Assign materials from the Paint tab
Place entities and wire I/O
Bake
Test Level

Turn on Power-user overlays for the radial menu, coach marks, and operation replay timeline — in the Console's Controls tab, or in the dock under Test → Settings. Command palette, context toolbar, tutorial, Space context menu, and HUD stay available either way.

Editor UX¶

The HammerForge Console¶

The HammerForge Console Status tab: eight checks, each with a lamp, what was measured and the button that resolves it

Open it from HammerForge in the main-screen switcher at the top of the editor, beside 2D, 3D and Script, wearing the HammerForge mark. It is the addon's front door, with six tabs:

Status: a red / amber / green board of eight checks, each one saying what was measured, what the threshold is, and offering the single button that resolves it: Create Starter Level, Bake Now, Check + Fix, Load Palette, Add Spawn Point, Set chunk size 64. Green is "nothing to do", amber is "works, but will cost you later", red is "will not do what you expect", and grey is "not measured yet" — never a fault. Every lamp carries a shape as well as a colour, so the board reads the same with a red/green deficiency. A legend sits under the board, and Needs attention only hides what is already fine. After an editor session that did not close cleanly, a Did not close cleanly row comes first, with the report folder the next start made from that session's journal (When the editor crashes). When a newer HammerForge is on the Asset Library, a grey line at the top says so, with What's New, Skip This Version and Later; it never downloads anything (#1656).
Controls: every HammerForge switch on one screen, grouped into Viewport, Bake and Safety net, each captioned with what it actually does. Search by name or by description ("pathfinding" finds Bake navmesh). Switches with nowhere to write are disabled rather than shown at a made-up default. The Console writes through the dock's own controls, so both surfaces always agree.
Log: HammerForge's own messages, out of the Output panel's shared stream. Level counts double as the filter, repeats collapse to (x4), a text filter narrows further, and Copy / Save… take what is on screen.
Entities: every entity class in the level with how many there are, most first, counted in the active cordons or one visgroup if you choose. Click a class to select every one of it. Export Entities... writes them to a CSV with every property (#1709).
Notes: a Note entity is text left in the level: a note, a to do or a playtest finding, with its title in the viewport and its body on hover. The tab lists them by kind, and they never bake or export (#1700).
Compare: what changed between the open level and another .hflevel, an older save, an autosave or a file out of git, picked with Compare With... in the dock: a summary, then each change, such as "brush 'stair_03': moved 0.5 m up". Clicking one selects what it names, and the viewport outlines what was added, changed and removed, each with its own line as well as its own colour. The open level is only looked at; End Compare takes it all off (#1701).

Report a Problem in the header opens the bug form in the browser filled in with the versions, the level's stats, the last undo steps and log lines, and a crash report when there is one; nothing is sent until you submit it (#1655).

The header carries the overall lamp, the live scope line (Arena · 74 brushes · 9 entities · ~3120 verts · 256 KiB paint) and when the board was last checked. Counts refresh once a second while the panel is open; the two reads that walk the whole level go on a slower beat, or on Re-check.

Because the Console is a screen of its own, the same lamp also sits in the 3D viewport toolbar with the one-line summary beside it — so the answer to "is anything wrong" is visible while you are building, and clicking it opens the board that explains why.

The dock¶

HammerForge's dock is designed to stay out of your way while keeping everything reachable:

4-tab dock (Build, Paint, Objects, Test) with collapsible sections -- persisted state, separators, indented content, context-hidden panels (entity I/O sections appear only when an object is selected)
Dark/light theme sync -- all custom panels adapt to Godot's theme setting automatically
Overlay colours -- Test → Settings → Colours sets the selection, hover, brush, cordon, vertex and extrude colours, with a High Contrast set and Reset; kept with your preferences, never in a bake
Tool settings kept -- each tool, the Build tab's controls and each structure type come back as you left them next session; Test → Settings → Reset Tool Settings puts the defaults back
Mode indicator banner -- color-coded strip shows current tool, gesture stage ("Step 1/2: Draw base -- 64 x 32"), and numeric input buffer
Toast notifications -- transient messages for save/load/bake/error results
Focused first-run guide -- two-step Draw → Test Level walkthrough with signal-driven auto-advance and persistent progress
Dynamic contextual hints -- viewport overlay hints that appear when switching tools (e.g. "Click to place corner → drag to set size → release for height"), auto-dismiss after 4s with per-hint persistence
Searchable shortcut dialog -- "?" button opens a filterable, categorized shortcut reference (replaces static popup)
Smart contextual toolbar -- floating mini-toolbar in the 3D viewport shows context-sensitive actions (brush ops when brushes selected, UV tools when faces selected, shape picker in draw mode, axis locks while dragging)
Dimensions -- K in the Measure tool keeps a ruler in the level as a dimension that follows the brushes its ends are on, held to the player's width, height, jump or step or to a length; red when the check fails, amber when an end comes loose, listed by Validate, never baked
Translatable interface -- HammerForge's words have a translation domain of their own, so the editor's catalogs leave them alone; a .po file in addons/hammerforge/translations/ shows the dock, the Console and the palette in the editor's language (Translating HammerForge)
Command palette (Shift+? or F1 or Ctrl+K) -- searchable action palette with fuzzy search, other words for commands ("shell" finds Hollow, plus your own in hammerforge_presets/aliases.txt), "Did you mean" suggestions, Repeat Last Command, Repeat Run and recent commands at the top, and live gray-out for unavailable actions
Repeat Run -- plays the commands, moves and turns made since the selection last changed by hand again on the current selection, as one undo step: Duplicate, move up, turn, then one press per step of a stair. A refused step takes back the rest and says which step it was; the palette shows what the run holds
Viewport context menu (Space) -- context-sensitive right-click-style menu with grid snap presets, UV operations, draw shapes, and toggle items; sections adapt to current selection, and Place Here puts the prefab selected in the library at the cursor
Predictable camera navigation -- plain RMB always controls Godot's 3D camera while HammerForge is idle, regardless of selection or persistent tool mode; while held, native WASD flight and mixed mouse input cannot trigger HammerForge actions. Only an active gesture or modal interaction may consume the initial press
Radial menu (`, opt-in) -- 8-sector pie menu for quick tool switching (Box, Cylinder, Select, Paint, Vertex, Tex Pick, Measure, Clip). Enable Power-user overlays in the Console's Controls tab or Test → Settings
Quick property popups (double-tap G G / B B / R R) -- inline numeric entry for grid snap, brush size, and paint radius without leaving the viewport
Grid size indicator -- persistent "Grid: N" display in viewport HUD with flash-on-change feedback; [ / ] keys halve/double grid snap instantly
Coach marks (opt-in) -- first-use step-by-step guides for advanced tools (Polygon, Path, Carve, Vertex, Extrude, etc.) with "Don't show again" persistence
Undo history browser -- thumbnail-equipped history panel (Test tab) with double-click navigation to any undo point
Operation replay timeline (Ctrl+Shift+T, opt-in) -- visual timeline of recent operations with undo/redo replay to any recorded point
Example library -- 5 built-in demo levels (Test tab) with difficulty ratings, annotations, and one-click loading for learning
Auto-mode hints -- "Drawing in Add mode" bar appears during drag with one-click Add/Subtract toggle
Tool poll system -- buttons gray out with inline hints when an action can't run ("Select a brush to use these tools")
Native Object Select -- Godot owns ordinary object clicks, empty-space box selection, modifiers, and transform/property widgets. A widget claim wins the complete mouse and keyboard gesture before HammerForge can start a marquee or nudge; buttonless motion and focus recovery clear stale ownership. Shift keeps Godot's native additive/active-selection behavior; Ctrl/Cmd remain available to Godot instead of becoming a HammerForge toggle. Filled face-triangle gizmo targets make brush and visible entity surfaces easy to select; geometry-less or visibly broken preview assets receive a restrained local pick marker, while hidden previews leave no invisible target
Focused Face Select -- face click/marquee is a separate modal state that switches to Select, turns Paint off, and temporarily hides object transform/resize gizmos. Shift adds faces and Ctrl/Cmd toggles them; leaving Paint or choosing an incompatible tool exits cleanly
X-ray face box (Alt+X) -- the checkbox beside Face Select Mode makes the face marquee take every face of a visible brush inside the box, covered or facing away: the inside walls of a room from outside it in one drag. The HUD says X-ray and the box turns amber
Grow / Shrink Selection (Ctrl+] / Ctrl+[) -- add every face sharing an edge with the selected faces, on the same brush or the brush beside it, or every brush whose solid touches the selected ones; Shrink takes the edge back off. Same plane only and Max angle in Selection Filters keep a grow on a floor or round a curved wall
Exact non-box picking -- hover, face tools, and surface-placement fallbacks hit the real cone, wedge, pyramid, curved, or custom mesh instead of empty space inside its AABB
Managed brush/entity editing -- Delete, Duplicate, and keyboard nudge operate consistently on both brushes and DraftEntity nodes through HammerForge undo/state handling
Mixed-selection action safety -- selection-dependent HammerForge edits pass through for native-only selections and stop with a clear warning for mixed HammerForge + Godot selections across keyboard, context toolbar, viewport menu, command palette, and radial entry points
Select All / Deselect All (A / Shift+A) -- Blender-convention quick selection; clears face selection and transitions to object context
Performance monitor -- health summary, brush/entity/vertex counts, chunk recommendations, color-coded ProgressBar; amber above 100 brushes and entities, red above 1,000, from the numbers on Performance and Limits
Contextual selection tools -- hollow, clip, move, tie, and duplicator appear in Build only when brushes are selected
Live dimensions -- real-time W x H x D display during drag gestures
Size at cursor -- a size label beside the pointer through both stages of a Draw, and the depth during an Extrude; Test → Settings turns it off
Show Selection Size (Alt+D) -- width, depth and height labels on the selection's bounds in the viewport, coloured by axis, following a nudge, a drag and an undo
Texture on many faces -- a typed UV box goes to every selected face and only that box, a box the faces disagree on shows mixed, and in Face Select the arrows slide each face's texture the way they point on screen by the grid step, Alt a tenth, with Shift turning it 15, 1 or 90 degrees
Selection Info -- a Build tab section with one brush's centre and size, one vertex's X, Y and Z to type into, one edge's length or one face's normal and area, in World or Local; a mixed selection lists its kinds with counts, and a click keeps one kind
Select Similar by choice (Shift+S) -- tick what must match in Selection Filters: material, shape, add or cut, size, visgroup, group, structure or entity class for brushes, material, UV scale or normal for faces, class or a named property for entities; the ticks are kept
Quick Select -- select brushes or entities by a typed rule such as class is light_point and energy > 2, to replace, add to or take from the selection, over the level or within the selection; the same tests the MCP bridge filters by
Active Material -- new brushes, Polygon and Path pieces and structures take the Build tab's Active Material, saved with the scene; Clear empties it, and a Cutout never takes it
Operation feedback -- actionable error toasts with fix hints ("Wall thickness 6 is too large -- Use a thickness less than 5")
Instant sync -- paint, material, and surface paint changes reflected immediately via signals (no polling)
Customizable keymaps -- rebind any shortcut via JSON; toolbar labels auto-update. A binding on a key HammerForge takes ahead of the keymap, the command palette's F1, Shift+? and Ctrl+K, Escape and the nudge keys, is reported as a clash
User preferences -- grid defaults, recent files, UI state persist across sessions

Agent Bridge (MCP)¶

An agent that speaks MCP can build in the open level through hammerforge-mcp. The Agent Bridge guide covers setting it up:

Off until you say -- tick Allow agent connections (MCP) under Test → Agent Bridge. It is off again every time the editor starts, and a lamp shows whether it is listening, connected or working
Local and checked -- listens on 127.0.0.1 only, with a new token each time it is turned on, written to .godot/hammerforge_mcp/, a folder closed to other users where git and exports do not look
One undo step per change -- each change is a single MCP: ... step in the editor's history, and a failed one leaves the level as it was
Safe retries -- a change sent again with the same operation_id returns the first answer instead of running twice
Aimed at the right level -- switch scene tabs and the agent's next change is refused until it reattaches with hf_get_status
Build and change -- hf_create_starter, hf_place_brush (with a material, a rotation, sides and a name in the same step), hf_transform_brush (absolute position and angle), hf_resize_brush, hf_delete_brush, hf_extrude_face (by index, side or normal), hf_assign_material, hf_set_spawn, hf_place_entity for lights, sounds, props and logic entities, and hf_transform_entity, hf_set_entity_properties, hf_delete_entity, hf_add_entity_output and hf_remove_entity_output to move, retune, delete, wire and unwire them, and hf_set_brush_entity to make a brush a trigger, a door, a button, a wall, a detail or a clip brush
Cordons -- hf_get_cordons lists them, hf_set_cordon adds one round brushes or at a box, or moves, names or switches one by index, and hf_remove_cordon takes one out. Each is one step, a refused or undone batch puts the cordons back with the rest, and the dock's Cordon section follows every edit
Look -- hf_get_status (with the playtest player's size, step and eye height), hf_get_brushes (faces with world normals and centres, and the structure a brush is a piece of), hf_get_materials, hf_get_entities, hf_get_cordons
Its own undo -- hf_undo and hf_redo move only the agent's MCP: ... steps, and refuse once anything else has touched the level
Bake and check -- hf_bake writes <scene>_mcp.tscn with the bake id on its root (the whole level, or with cordons: true only what the switched-on cordons take, marked partial), for a runtime tool such as gda to load and check; hf_validate lists what a bake would warn about, by brush, stairs and doorways the player cannot use among them
Measure and plan -- hf_measure gives sizes, gaps and angles in one small answer, and hf_plan a top down plan of the level as a PNG or SVG, from a headless editor too
What it changed -- the viewport outlines what the agent's last change made or changed, and Show agent changes under Test → Settings turns that off
See it -- hf_viewport_screenshot gives the viewport, or a clean picture framed on some brushes from a side the agent picks, or from a camera it places, with brushes or cuts left out or only the last bake drawn, as an image the agent can look at
Palette commands -- hf_list_commands lists the palette commands an agent may run, with their params as JSON Schema, and hf_run_command runs one on the brushes it names, never on the selection: hollow, clip, clip to a face's plane, carve, merge, intersect, snap to grid, build stairs, arches, spiral stairs, domes, rings or door frames, change or detach one by its generator_id (keeping its paint and names), place a prefab from the library by name, turned and linked or not, cycle or propagate a placed one, move to floor or ceiling, reset rotation, and paint floor by cell: a rectangle painted or erased on a layer named by index or name, its walls raised, a room stamped from a corner and a size, a connector between two layers confirmed where their cells meet (#1299). It refuses in the palette's own words and opens no dialog
Several at once -- hf_batch runs up to 100 changes as one undo step, all or nothing, and a later change can name a brush or a structure an earlier one made
Easy to check -- hammerforge-mcp --check says whether it can reach the editor without displacing a working agent, says when the server is not the one for the editor's HammerForge, and prints the client configuration to paste, and the panel says what the agent last did
Starting points -- three prompts a client can list: block out a room, review the level, bake for a playtest

Architecture¶

HammerForge uses a coordinator + subsystems pattern:

LevelRoot always initializes the brush, entity, bake, paint, and file core needed to load and run a level. Grid, drawing, snapping, selection, previews, prefab authoring, validation, undo, and the remaining editor services are loaded only by editor builds. Export templates therefore avoid constructing the editor tool graph.

plugin.gd            EditorPlugin lifecycle, composition, discovery, and undo wiring
  ├─ plugin_*.gd     Input, numeric entry, selection, commands, HUD, overlays, edits, and drops
  ├─ dock.gd         Four-tab UI coordinator with focused handler modules
  ├─ HFToolRegistry  Plugin-owned external tool loading and dispatch
  └─ level_root.gd   Public level facade; owns containers, exports, and signals
       ├─ HFBrushSystem     Brush CRUD, hollow, clip, tie, move, UV justify, caching
       ├─ HFDragSystem      Two-stage draw lifecycle + preview management
       ├─ HFExtrudeTool     Face extrusion (Up/Down) via FaceSelector
       ├─ HFPaintSystem     Floor paint layers, heightmaps, blend, surface paint
       ├─ HFBakeSystem      CSG assembly, mesh merge, LOD, navmesh, collision, Bake Changed and Bake Selected, preview modes
       ├─ HFEntitySystem    Entity CRUD, I/O connections, definition loading, fire_output()
       ├─ HFIORuntime       Runtime I/O-to-Signal dispatcher (auto-injected on bake/export)
       ├─ HFStateSystem     Undo/redo snapshots, transactions, autosave
       ├─ HFFileSystem      Threaded .hflevel / .map / .glb I/O
       ├─ HFValidationSystem Level integrity checks, bake issue detection
       ├─ HFGridSystem      Grid rendering and follow mode
       ├─ HFVisgroupSystem  Named visibility groups + brush grouping
       ├─ HFCarveSystem     Boolean-subtract carve and intersect (progressive remainder over the other brush's face planes)
       ├─ HFConvexClip      Plane/convex-solid split shared by clip, carve and hollow; winding-safe surfaces
       ├─ HFArchBuilder     Parametric arches: one description, one brush per voussoir
       ├─ HFStairsBuilder   Flights, straight or turning at a landing: solid underneath or floating treads
       ├─ HFSpiralStairsBuilder  Annular treads about an axis, with a newel post
       ├─ HFDomeBuilder     Hemispheres in rings, because a patch of sphere is not planar
       ├─ HFRingBuilder     A tube swept round a centre, one convex brush per segment
       ├─ HFDoorFrameBuilder  Posts and a head round an opening, and the cut that makes it
       ├─ HFTrimRunBuilder  A trim profile swept along picked wall faces
       ├─ HFStructurePresets  Named Structure settings per type, read through the schema
       ├─ HFGeneratorSchema What a generator's settings are, so the dock can build them
       ├─ HFGeneratorSystem Records of what each generator made, so structures stay editable
       ├─ HFTransformSystem Rotate, flip, mirror copy, reset rotation and apply rotation and scale, with winding-safe mirroring and stable pivots
       ├─ HFIOVisualizer    Entity I/O connection lines in viewport (curved, color-coded, highlight pulse)
       ├─ HFIOPresets       Reusable I/O connection presets (built-in + user-saved)
       ├─ HFSnapSystem      Grid / Vertex / Center / Edge / Perpendicular snap + custom reference lines
       ├─ HFSubtractPreview Live CSG cut overlay with wireframe AABB fallback
       ├─ HFVertexSystem    Vertex/edge selection, move, split, merge with convexity validation
       ├─ HFSpawnSystem     Player spawn lookup, validation, auto-fix, debug visualisation
       ├─ HFPrefabSystem    Instance registry, variant cycling, live-linked propagation
       ├─ HFDisplacementSystem  Displacement surface create/destroy/paint/sew/elevation
       └─ HFBevelSystem     Edge bevel (chamfer) and face inset

HFToolRegistry
  ├─ HFMeasureTool   Multi-ruler measurement + snap reference (tool_id=100)
  ├─ HFDecalTool     Decal placement with live preview (tool_id=101)
  ├─ HFPolygonTool   Polygon → extruded brushes, split convex (tool_id=102)
  └─ HFPathTool      Waypoint path → mitred walls, trim, stairs and railings (tool_id=103)

Key design choices:

No live CSG -- brushes are Node3D with box metadata; CSG runs only during bake
RefCounted subsystems -- concrete systems receive a LevelRoot reference; editor-only systems use dynamic loading so export templates avoid the authoring graph
Signal-driven UI -- signals on LevelRoot replace polling; batched emission prevents UI thrash
Tag-based invalidation -- exact dirty tags on transform, material, UV, paint, and vertex mutations; an ID-keyed change tracker reconciles Godot-owned Inspector/gizmo commits and native undo/redo, so Bake Changed knows whether anything changed
Command collation -- rapid operations merge into single undo entries within a 1-second window
HFOpResult -- failable operations return structured results with actionable fix hints
Explicit state machine -- HFInputState manages IDLE / DRAG_BASE / DRAG_HEIGHT / SURFACE_PAINT / EXTRUDE / VERTEX_EDIT modes
Stable public facade -- editor and dock code use LevelRoot's public operations; focused plugin adapters use deliberate dynamic access where GDScript cannot type the EditorPlugin implementation without creating preload cycles

Keyboard Shortcuts¶

Commands lists every command with its default key, what it needs selected and what it does.

Shortcuts marked with * are rebindable in the shortcut dialog (? on the toolbar), which can also give a key, or a second key, to any command that ships without one; the changes are kept in user://hammerforge_keymap.json. The keys that start Clip, Measure, Decal, Polygon and Path are keymap actions like the rest (#1820). Keys a tool takes only while it is active (A in Measure mode and Tab in Clip mode) are the tool's own and are not keymap-backed. The command palette's keys, Escape and the nudge keys are fixed as well: the keymap reports a binding on one of them as a clash.

Key	Action
D *	Draw
S *	Select
U *	Extrude Up
J *	Extrude Down
E *	Extrude Up (alt)
Shift+E *	Extrude Down (alt)
Shift+D *	Repeat Last Brush
Q *	Toggle Solid / Cut
Shift+P *	Toggle Paint Mode
Ctrl+Enter *	Quick Play
Ctrl+Shift+Enter *	Validate Level
Del *	Delete
Ctrl+D *	Duplicate
Ctrl+C *	Copy
Ctrl+V *	Paste
Ctrl+Alt+V *	Paste at Cursor
Shift+; *	Command Line
Ctrl+G *	Group
Ctrl+U *	Ungroup
Ctrl+H *	Hollow
Alt+H *	Hide Selection
Shift+Alt+H *	Show Hidden
Shift+X *	Clip
Shift+Alt+X *	Clip to Face Plane
Ctrl+Shift+A *	Create Structure
Shift+Alt+T *	Run Trim Along Faces
Ctrl+Shift+R *	Carve
Ctrl+Shift+M *	Merge Brushes
Ctrl+Shift+I *	Intersect
Ctrl+Shift+P *	Save Selection as Prefab
Ctrl+Shift+V *	Cycle Prefab Variant
Ctrl+Shift+F *	Move to Floor
Ctrl+Shift+C *	Move to Ceiling
Ctrl+B *	Snap to Grid
R *	Rotate CCW
Shift+R *	Rotate CW
Shift+M *	Flip Selection
Alt+M *	Mirror Copy
Alt+R *	Reset Rotation
Alt+G *	Offset
Alt+P *	Pick Pivot
Shift+Alt+P *	Clear Pivot
B *	Paint Brush
E *	Erase
R *	Ramp / Rect
L *	Line
K *	Bucket Fill
N *	Blend
Y *	Raise Painted Walls
X *	Toggle Paint Mirror X
Z *	Toggle Paint Mirror Z
H *	Stamp Painted Room
Enter *	Confirm Paint Connector
V *	Vertex Edit
E *	Edge Mode
Ctrl+W *	Merge Vertices
Ctrl+E *	Split Edge
Ctrl+B *	Snap Vertices to Grid
T *	Texture Picker
Shift+T *	Apply Last Texture
Alt+T *	Apply Picked Look
Alt+1 *	Apply Favorite 1
Alt+2 *	Apply Favorite 2
Alt+3 *	Apply Favorite 3
Alt+4 *	Apply Favorite 4
Alt+5 *	Apply Favorite 5
Alt+6 *	Apply Favorite 6
Alt+7 *	Apply Favorite 7
Alt+8 *	Apply Favorite 8
Alt+9 *	Apply Favorite 9
A *	Select All
Shift+A *	Deselect All
Shift+S *	Select Similar
Alt+F *	Selection Filters
Ctrl+] *	Grow Selection
Ctrl+[ *	Shrink Selection
Alt+X *	Toggle Face X-ray
Alt+D *	Show Selection Size
X *	Lock X
Y *	Lock Y
Z *	Lock Z
L *	Draw on Face
] *	Grid Increase
[ *	Grid Decrease
Alt+PgUp *	Grid Up
Alt+PgDn *	Grid Down
Alt+Home *	Reset Grid
Alt+End *	Align Grid to Selection
Space *	Context Menu
` *	Radial Menu
Ctrl+Shift+T *	Operation Replay Timeline
Ctrl *	Invert Grid Snap (hold)
Alt *	Snap to Vertices (hold)
I *	Sweep Select (hold)
Alt+Arrow / Alt+Shift+PgUp/PgDn	Nudge a tenth of the grid step
C *	Clip Tool
Tab	Keep side in Clip
M *	Measure
N *	Decal Tool
P *	Polygon Tool
; *	Path Tool
A	Align mode in Measure
Shift+? / F1 / Ctrl+K	Command palette

Floor Paint mouse modifiers are deliberately not keymap actions: LMB paints, Alt+LMB temporarily erases, Shift+LMB locks the stroke axis, Ctrl/Cmd+LMB picks the cell material, and Escape cancels. Plain RMB remains Godot camera navigation.

Paint mode contextually claims X/Z for mirror toggles, Y for raising the last footprint, H for a room stamp, and Enter to confirm a connector. Outside Paint mode, X/Y/Z retain their normal axis-lock role.

R appears twice on purpose. Paint mode claims it for Rect; everywhere else it rotates. The viewport dispatches the paint tools first and skips the whole transform group while paint mode is on, so only one of the two is ever live.

Testing¶

The verified Godot 4.7 suite on October 21, 2026 contains 6,064 tests across 334 scripts: 6,057 passing tests, seven intentional no-assert safety tests, and 37,085 assertions. All checks run on every push and pull request via GitHub Actions.

How to run the suite and the lint jobs on your own machine is in CONTRIBUTING.md. It is kept in one place so it cannot drift from what CI runs.

# Reset prefs for the editor smoke checklist
godot --headless -s res://tools/prepare_editor_smoke.gd --path .

Roadmap Highlights¶

See ROADMAP.md for the full plan.

Recently shipped: - Displacement & Bevel (Source-style displacement surfaces with paint/sew/elevation, edge bevel with slerp arc, face inset) - Quality-of-Life & Polish (theme sync, undo history browser, multi-ruler measure tool, performance monitor, export playtest) - Terrain & Organic Enhancements (brush-to-heightmap, foliage scatter, path tool extras) - Learning & Discovery Aids (coach marks, operation replay timeline, fuzzy command palette, example library) - I/O-to-Signal runtime bridge (auto-wire entity I/O connections to Godot signals on bake/export) - I/O Connections & Entity Polish (curved auto-routed lines, connection presets, wiring panel, Highlight Connected) - Bake & Test Level optimizations (Bake Selected, Bake Changed, preview modes, Play from Camera, Play Selected Area) - Prefab & Group Enhancements (variants, live-linked, tags/search, quick group-to-prefab) - Improved selection & multi-select (marquee, selection filters, Select Similar, Apply Last Texture) - Smart contextual toolbar + command palette with fuzzy search

Recently shipped (also): - Check Bake Issues as a list with Select and one-step fixes for the spawn, and Validate's findings in the same list - Export Game Scene on a chosen bake profile, with the level's own options put back - Light presets, projector textures, and a sound picker with in-editor preview - Bake profiles: Editing and Shipping in one step from Test > Advanced Bake, and profiles of your own or the project's - Material atlas packing and merge-selected-brushes - Exact-surface Polygon and Path placement through the shared snap pipeline - Reliable prefab member tracking across Draft, Pending Cuts, Committed Cuts, and entity containers - Runtime-only LevelRoot initialization in exported levels - Snap-to-edge (dock E) and snap-to-perpendicular (dock P) - Bake func_detail meshes and trigger Area3D volumes - Playtest exports with a spawned FPS player, recursive nested-node ownership, and preserved source transforms

Current tracked work: - Open work is on the issue tracker.

Later: - Bezier patch editing - Preference packs for one-click workflow presets

Troubleshooting¶

Symptoms, their causes and their fixes are in one table: Troubleshooting in the User Guide.

MIT License
_{Built for Godot 4.7+ | Last updated October 24, 2026}
