HammerForge User Guide

Last updated: October 18, 2026

This guide covers the current HammerForge workflow in Godot 4.7: brush-based greyboxing, bake, entities, floor paint, and per-face materials/UVs. The glossary gives the one word this guide and the editor use for each idea.

Quick Start

1. Enable the plugin: Project -> Project Settings -> Plugins -> HammerForge.
2. Open any 3D scene. HammerForge now appears in the main-screen switcher at the top of the editor, beside 2D, 3D and Script, and the left dock is titled HammerForge.
3. In the empty-state banner, click Create Starter to add a LevelRoot, floor, sunlight, and player spawn. Use Create Empty when you want only the root.
4. In Build, choose Draw and drag in the viewport to set the base; click again to set the height.
5. Open Test and click Test Level (Bake + Play). HammerForge checks the spawn, bakes, and launches the playtest.

If anything is not behaving, open the Console (the HammerForge entry in the switcher) and read the Status board. It is the fastest way to find out what is wrong and what fixes it.

World Scale

One world unit is one metre. That is the convention Godot's own 3D physics uses, and it is the one the project's physics/3d/default_gravity of 9.8 already assumed. Every size in this guide and every SpinBox in the dock is in metres.

The numbers that make it concrete:

	in metres
The playtest player, standing	1.6
The playtest player, crouched	0.9
Player width	0.7
Default grid snap	0.5
Default brush	2 x 2 x 2
Highest ledge the player can jump onto	about 2.1

So a default brush is a little taller than a person, a room is eight to twelve metres across, and a doorway is about two metres high and one wide. If you are coming from Hammer, Radiant or TrenchBroom, divide the numbers you know by about 45: a 128-unit Quake room height is roughly 3 m.

Earlier versions drew on a Quake-family grid: a 16 unit snap and a 32 unit brush, while the player and the shipped examples were already metres. A default brush was twenty player heights tall. Levels saved before this change keep the grid and sizes they were built with, because those are stored on the LevelRoot; only the defaults for a new level moved.

HammerForge Console

Open it from HammerForge in the main-screen switcher. The overall lamp also sits in the 3D viewport toolbar while you build; clicking it opens the Console.

Six tabs, and a command line under them.

Status

Eight checks, each a red / amber / green lamp with what was measured, what it means, and the one button that resolves it.

Check	Green	Amber	Red
Level root	A LevelRoot is in the open scene	—	No LevelRoot, so every tool is inert — Create Starter Level
Geometry budget	100 brushes + entities or fewer	Above 100; an edit takes longer than a frame to settle	Above 1,000; every edit pauses the editor (measured)
Bake	Baked meshes match the drafts	Never baked, or brushes edited since — Bake Now	—
Level check	Scanned, no faults	1–5 issues — Check + Fix	6 or more
Material palette	Every slot loaded	Empty (fine for greyboxing), or some slots did not resolve — Load Palette	No slot resolved, or empty and face-material bake is on
Player spawn	At least one spawn point	None, so Test Level makes one at the origin — Add Spawn Point	—
Autosave	On, and a snapshot exists	Off, or nothing written yet — Turn On	—
Session log	No warnings	Warnings this session — Open Log	Errors this session

A grey lamp means not measured yet — usually because no level is open. It is not a fault.

After an editor session that did not close cleanly, a Did not close cleanly row comes first, with Open Folder, Copy Report and Dismiss. See When the editor crashes.

When a newer HammerForge is on the Asset Library, a grey line at the top says so, such as "HammerForge 0.4.2 is out", with What's New, Skip This Version and Later. It never downloads anything, and grey never colours the headline. See Upgrade (#1656).

A level with notes in it gets a grey Notes row, counting the open ones by kind, with Show Notes. See Notes.

Every lamp carries a shape as well as a colour (tick, exclamation, cross, dash), so the board reads the same with a red/green colour deficiency. Hover any row for the thresholds behind it. Needs attention only hides the checks that are already fine.

The header carries the overall lamp, the live scope line (Arena · 74 brushes · 9 entities · ~3120 verts · 256 KiB paint), and when the board was last checked.

Report a Problem in the header asks what happened, what you expected and how to get there, all optional, and opens the bug form in your browser filled in with them and with what the editor knows: the HammerForge and Godot versions, the system, the renderer and graphics adapter, and, if you leave them ticked, the level's counts, the tool in use, the last 10 undo steps, what a level check finds and the last 50 HammerForge log lines. After a crash, the crash report goes in its own field. Paths are cut down to res://, user:// and ~. A report too long for a link opens the form with the title and versions, and puts the whole report on your clipboard to paste. Save a viewport screenshot writes one to user://hammerforge/reports and opens that folder, so you can drag it into the form. Nothing is sent until you submit the form yourself (#1655). Counts refresh once a second while the Console is open; the two measurements that walk the whole level refresh on a slower beat or when you press Re-check.

Controls

Every HammerForge switch on one screen, grouped by what it affects:

• Viewport — show grid, grid follows cursor, shortcut HUD, power-user overlays, size at cursor, draw hover preview, name the snap, show selection size, I/O connection lines, cut preview, spawn debug, texture lock, cordon
• Bake — merge meshes, LODs, unwrap UV0, lightmap UV2, face materials, navmesh (cell size and height, agent height, radius, climb and slope), visible only, material atlas, auto connectors, wire I/O, occluders, worker threads, freeze on commit, chunk size
• Safety net — autosave (with interval and backups kept), compress saves, auto-spawn player (off by default; adds a debug player when this level's own scene is run on its own, never in a release build), Validate warns about open To Do notes (off by default, kept in the level, see Notes), check for a newer HammerForge (once a day, from the Asset Library, see Upgrade), debug logging

Each switch is captioned with what it does, and Find a setting searches those captions as well as the names, so "pathfinding" finds Bake navmesh. Turn Descriptions off to fit more on screen; the text stays on the tooltips. A switch with nowhere to write — no level open — is disabled rather than shown at a made-up default.

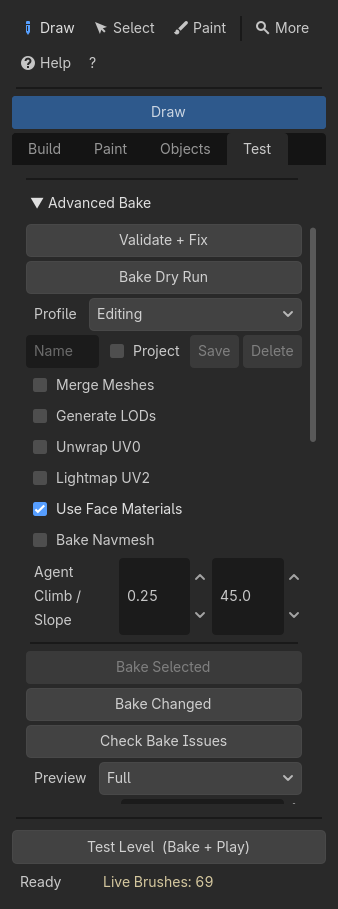

These are the same settings as Test → Settings and Test → Advanced Bake in the dock. The Console writes through the dock's own controls, so the two always agree.

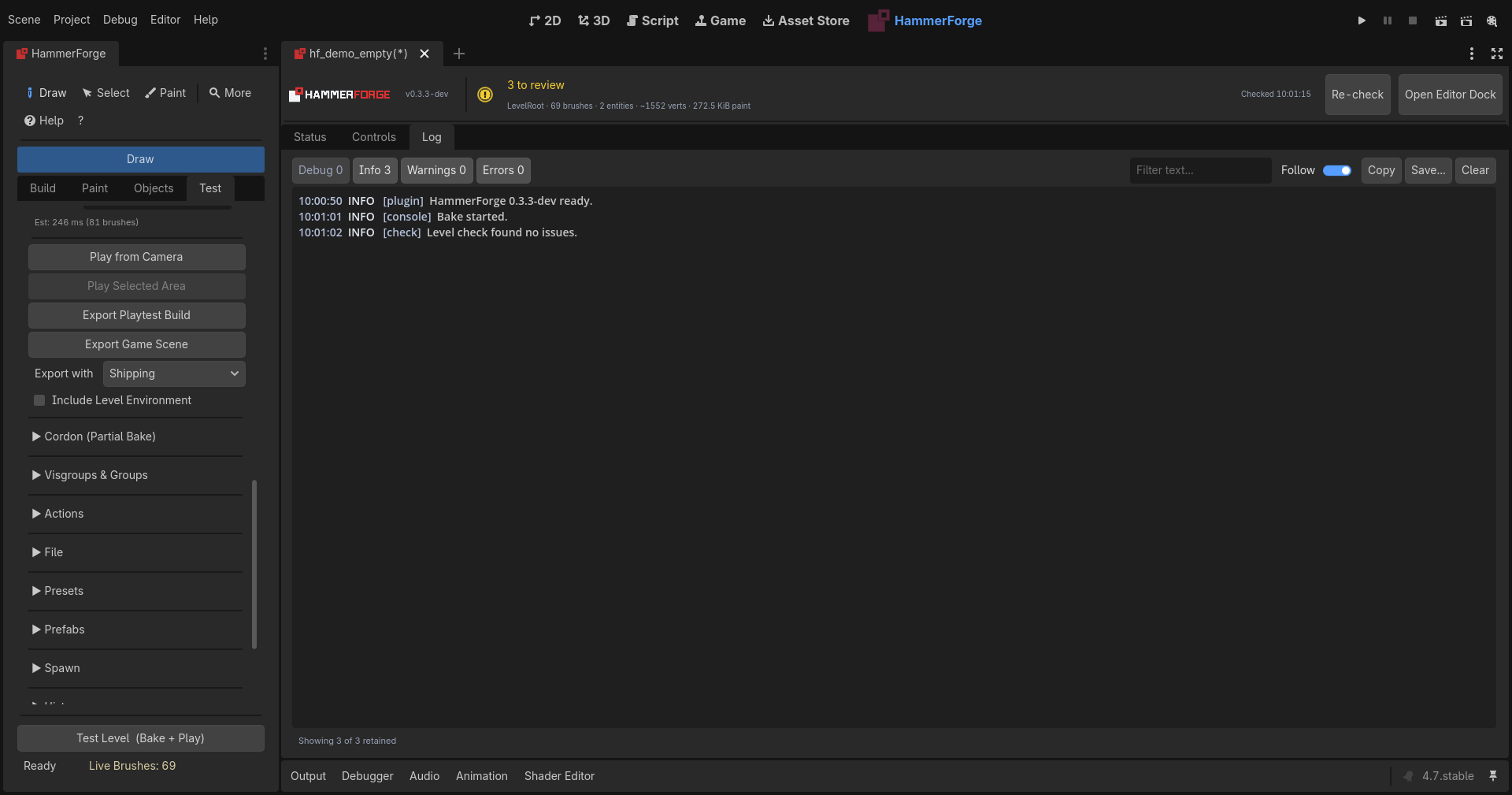

Log

HammerForge's own messages, separate from Godot's Output panel where every addon's output is mixed together. The level buttons show how many of each arrived this session and double as the filter — click Errors 2 to see just those two. Follow keeps the newest line in view, and Copy / Save… take whatever is currently shown.

A message that repeats collapses to one row with a count ((x4)) rather than filling the buffer. The buffer trims down to the most recent 600 entries in batches, so it holds up to 663; the footer says how many it holds and how many older ones were dropped.

Entities

Every entity class in the level with how many there are, most first: point entities and brush entities both, so a trigger counts as a trigger_once (#1709), and a door of two brushes counts once (#1958). Count in narrows it to what stands inside the active cordons or to one visgroup. Click a class to select every one of it.

Export Entities... writes the entities in that scope to a CSV: one row each, with its kind, class, name (its node name when it has no name of its own, as the wiring lists it), position, rotation, a brush entity's bounds over all of its brushes, its visgroups, how many outputs it has and how many aim at it, then one column per property, blank where a class has none. A property named like one of the columns before it goes under property:, as a note's property:kind (#1984, #1988). Numbers use a decimal point whatever your system's language, a colour is #rrggbb and a vector x y z, and a value with a comma or a quote in it is quoted, so the file opens cleanly in any spreadsheet. The same table comes from the command line, for a build script:

godot --headless -s res://tools/export_entities.gd --path . -- level.hflevel out.csv

Notes

A Note is text left in the level for the people working on it: "the lift goes here", "temporary wall, remove after the art pass", "players get stuck on this ledge" (#1700). Place one from the Editor category of the entity palette, or from Place Entity Here in the viewport menu. It has a Title, a Body, a Kind (Note, To Do or Playtest), an Author and Done. A new note is signed with the author of the last note you signed, so you type your name once.

In the viewport a note is a marker with its title over it: a sphere for a Note, a diamond for a To Do, a cylinder for a Playtest. Its body shows under the title while the cursor is over it, and a done note fades.

The Console's Notes tab lists every note under its kind, with how many are open, and clicking one selects it, so F frames it. The Status board counts open notes in a grey Notes row, which never colours the headline. Turn on Validate warns about open To Do notes under Safety net in the Console's Controls and Validate lists each open To Do note as Open To Do note: <title>, with Select on its row; Note and Playtest notes never warn. The setting is kept in the level and the scene, off by default, so everyone's check of a level agrees (#1818).

Notes save with the level, the scene and a prefab like any entity, and never reach a bake, a playtest, a running game, a .glb or a .map export; either export says how many it left out. An agent can place, change and list notes over the bridge with hf_place_entity, hf_set_entity_properties and hf_get_entities.

Compare

Compare With... in the dock's File section, beside Load .hflevel, shows what changed between the open level and another .hflevel: an older save, an autosave, or a file taken out of git with git show HEAD~3:level.hflevel > old.hflevel (#1701). Compare with File in the palette does the same.

The Compare tab names the file and sums up, such as "3 brushes, 1 face, 1 entity changed", then lists each change: "brush 'stair_03': moved 0.5 m up", "brush 'wall_12': face +x: material changed from brick to plaster", "entity 'lamp' (light_point): added". A point entity's or a brush entity's wires, settings and class count too, as "entity 'button': wires: 1 added, 0 removed" or "brush 'door': brush entity changed from none to func_door" (#1941). Click one to select what it names, and F frames it.

The viewport outlines the same changes: what the open level added is drawn solid, what changed is drawn twice, and what it removed is drawn dashed where the file has it. Each has its own line as well as its own colour, and the colours are in Settings with the other overlay colours, so High Contrast covers them. The brushes that did not change are faded, so the changes stand out in a big level (#1864). How far they fade is Compare: unchanged in Settings, beside the compare colours, 70% unless you change it, and 0% leaves them as they are. The fade is drawn and nothing more: the brushes, their materials, a scene saved meanwhile and the undo history are all left as they were, and End Compare brings them back.

Brushes are matched by id, and a brush whose id changed but whose shape and place did not is still the same brush. Entities are matched by name, then by class and place. A rename counts, of a brush, an entity or the name a wire is aimed at, as "entity 'ceiling_lamp': renamed from lamp to ceiling_lamp", and so do a brush's or an entity's visgroups and group. A wire that a rename left aimed at nothing says so, as "entity 'button': wire OnPressed to door_1 reaches nothing now" (#1982). Visgroups, groups, cordons and paint layers are counted too. A face reads "texture moved" when it shows its texture somewhere else on its brush, so a move with Texture Lock on, which keeps the texture where it is on the brush, reads as the move alone (#1989).

The compare only looks: the open level is not changed and nothing goes into the undo history. End Compare, in the tab or the palette, takes the outlines and the list off.

For CI or a pull request, godot --headless -s res://tools/compare_levels.gd --path . -- old.hflevel new.hflevel prints the same list. It exits 0 when nothing changed, 1 when something did and 2 when a file does not read, as diff does.

Command Line

A line at the bottom of the Console takes a command and its values as you would say them: hollow 0.125 hollows the selected brush with walls 0.125 m thick, in one undo step (#1696). Shift+; (a colon) opens the same line over the 3D viewport, so you can type without leaving the level, and Escape on an empty line closes it.

• The command is its id, its name or an alias: move_to_floor, move to floor and Move to Floor are the same command, as in the palette.
• Values go in by place, in the order the command takes them, or by name: hollow 0.125 and hollow thickness=0.125 are the same. A vector is three numbers with commas, position=1,2,3; a floor cell two, at=4,-2; yes and no are yes, no, on, off, true or false; a structure's settings are JSON, {"steps": 8}. Quote a value with spaces in it: place_prefab "corner desk" position=0,0,4.
• What it asks. A command typed with no values asks for each one, with the default in angle brackets, Thickness <0.25>:; Enter takes the default and Escape cancels. A command given some values asks only for what it cannot do without.
• Help while typing. Up to eight commands are offered under the line as you type, the one you typed exactly first, and Tab takes the top one. Once the command is named, a hint lists what it takes and in what range.
• Refusals name the value, as the Agent Bridge does: hollow 500 says the thickness is past 128.
• History. Up and Down step through the lines run this session, on either line, and Enter on an empty line runs the last one again. Each line run goes into the Log as > hollow 0.125, with what it did, so it can be copied into a report.
• Scripts. Run Script... beside the line, or Run Command Script in the palette, runs a text file of such lines, one command a line, each its own undo step. A line starting with # is a comment. It stops at the first line that does not read or is refused, and says which line and why.

The commands the Agent Bridge runs (hf_list_commands) are read and checked by the bridge's own code, on the selection, so a line and an agent's request mean the same thing. Any other command, such as Toggle Paint Mode, takes no values and runs as the palette runs it. A step typed on the line is yours, not the agent's: the bridge's hf_undo will not take it back.

Viewport Mouse Controls

Plain RMB uses Godot's native 3D camera look whenever HammerForge is idle. It works the same whether nothing, a brush, a face, an entity, a camera, or another scene node is selected, and persistent tool modes do not claim it just by being enabled. While RMB is held, native W/A/S/D camera flight and mixed mouse input stay with Godot and cannot accidentally switch tools, draw, or change selection. MMB and the mouse wheel also remain available to Godot for camera navigation.

Outside Floor Paint and Surface Paint, Alt+LMB is reserved for Godot's alternate viewport navigation and transform schemes. HammerForge does not begin a selection or box-select gesture from that press. Both paint modes deliberately own Alt+LMB as their temporary erase while they are active.

In Select mode, every ordinary LMB click or drag uses Godot's native Object Select pipeline. HammerForge contributes accurate filled gizmo hit targets for brush faces and visible entity preview meshes; it does not draw a second object rectangle or guess whether the press was on a transform/property widget.

Press starts on	Result
Empty viewport space	Godot handles the empty click or its native object box selection
A visible HammerForge brush/entity surface	Godot selects it through the filled face/preview hit target, then HammerForge normalizes its owner or group
A selected brush, resize handle, or transform/property widget	Godot or the custom brush gizmo owns the complete drag; no competing HammerForge selection appears
A native Godot object or gizmo, such as a camera or light	Godot owns the click and drag; HammerForge remains available for the level but does not edit through it

Object selection follows Godot's modifiers, not a second HammerForge rule set. Shift keeps Godot's native additive/active-selection behavior for clicks and adds native box-selection results. Ctrl/Cmd are left to Godot's configured viewport transform and navigation behavior; HammerForge does not turn them into an Object Select toggle.

Once a transform/property widget or yellow resize handle claims a press, it owns the whole gesture—including Escape and keyboard modifiers—until release or recovery. HammerForge will not start a box selection, nudge with Ctrl+Arrow, paint, or trigger another tool underneath it.

Godot's visible EditorSelection is authoritative. HammerForge reads native click and region results after Godot finishes them, maps internal entity-preview children back to their object, and expands brush groups as one selection unit. Clearing the Scene tree or clicking empty space remains a real empty selection; HammerForge does not preserve a hidden stale selection behind it.

Face Select Mode is a focused modal state rather than a second object-selection layer. Enabling it switches to the Select tool, turns Paint off, saves the current object selection, and temporarily clears it. That hides Godot's transform widget and HammerForge's resize handles so they cannot overlap a face click or marquee. Face Select has its own deliberate modifiers: Shift adds faces; Ctrl/Cmd toggles faces. Each picked face is tinted orange and outlined, drawn through any brush in front of it, until it is deselected. Turning the mode off manually clears the face selection and restores still-valid objects from the snapshot. Leaving the Paint tab, choosing an incompatible built-in or external tool, or entering Vertex Edit closes Face Select through the same restore path. That is why the tools that act on picked faces, the UV Editor, Face Inset and Displacement, sit on the Paint tab under Face Tools. Selecting an object in the Scene tree exits immediately and keeps that newly selected object instead of restoring the old snapshot. Escape clears selected faces first; press it again to exit and restore objects, or press it once to exit when no faces are selected.

During an interaction that already owns the pointer, RMB keeps its local meaning: it cancels an active draw, extrusion, Face Select marquee, or vertex drag, and steps back one point while Polygon or Path placement is active. An active paint stroke keeps pointer ownership until LMB is released. Explicitly cancelled releases and buttonless motion restore or settle HammerForge-owned transient edits. On application/window focus loss, HammerForge clears its transient owners while Godot settles any native or custom gizmo it owns, so one gesture is never committed and restored by two systems. In the Measure tool, use Ctrl+Click (or Cmd+Click on macOS) to set a snap reference. Press Space for HammerForge's contextual viewport menu.

Top, Front and Side Views

HammerForge has no orthographic panes of its own because Godot's 3D editor already has them. View > 2 Viewports, 3 Viewports or 4 Viewports splits the view, and each pane's menu at its top left turns it into a Top, Front or Right view; with the mouse over a pane, Numpad 7, 1 and 3 do the same, and Numpad 5 switches between perspective and orthogonal. The panes share the selection and the grid. HammerForge reads the camera of the pane under the mouse, and vertex and edge drags follow front, side and top orthographic views (see Vertex Editing). A side view is the quick way to check that a doorway lines up with its corridor.

LevelRoot

LevelRoot is required because it owns the containers and systems HammerForge uses: - DraftBrushes, PendingCuts, CommittedCuts - PaintLayers and Generated (floors/walls) - Entities - Baker and paint systems

The empty-state banner is the clearest way to create it. In a new 3D scene with nothing in it yet, a left-click while the Draw tool is active also creates an empty root. A scene that already has nodes in it, such as a player or a prop, is not turned into a level by a click: the click selects as usual, and the dock says once where to create a level. Camera navigation, right-clicks, and other passive viewport input never mutate the scene. LevelRoot stays active even when you select other scene nodes (sticky root discovery) -- you do not need to re-select it after clicking a camera, light, or other node.

First-Run Tutorial

On first launch, a short tutorial guides you through the essential two-step loop:

Step	Goal	Trigger
1	Draw something	Place any brush
2	Test your level	Complete a successful bake with Test Level Now

Each step auto-advances when you complete the required action. You can go back, skip, or hide the guide. Progress persists across sessions if you close and reopen the editor.

Use Don't show at startup to hide it on future launches. Reopen or restart the guide from Help; you do not need to edit preference files.

Coach Marks (First-Use Tool Guides)

Opt-in. This is one of the power-user overlays, off by default so the core loop stays quiet. Turn on Power-user overlays in the Console's Controls tab, or in the dock under Test -> Settings.

When you activate an advanced tool for the first time, a floating overlay appears with step-by-step instructions. Coach marks are available for 10 tools:

Tool	Trigger	Steps shown
Polygon	P key	Click vertices → close loop → set height → confirm
Path	; key	Place waypoints → Enter → set height → confirm
Vertex Edit	V key	Select → multi-select → edge mode → merge/split
Extrude	E/U/J keys	Select brush → click face → drag → confirm
Carve	Ctrl+Shift+R	Select brushes → preview (green wireframe) → confirm → delete fragments. A carver that overlaps nothing says so without asking
Clip	Shift+X	Select → preview (cyan wireframe + orange plane) → confirm → split
Hollow	Ctrl+H	Select solid → preview (yellow wireframe walls) → confirm → hollow. Select a wall afterwards and press Ctrl+H or Re-hollow to shell it again at a new thickness
Measure	M key	Click start → click end → Shift+Click to chain → Ctrl+Click for snap ref
Decal	N key	Click surface → resize/rotate → assign material
Floor Paint	Shift+P toggle	R Rect; X/Z mirror; Y raise; H room; Enter connector

Each guide has a "Don't show again" checkbox. Dismissed guides are persisted in user prefs. Guides trigger from keyboard shortcuts, the command palette, and context toolbar actions.

Operation Replay Timeline

Opt-in. This is one of the power-user overlays, off by default so the core loop stays quiet. Turn on Power-user overlays in the Console's Controls tab, or in the dock under Test -> Settings.

Press Ctrl+Shift+T to toggle a compact timeline showing your recent operations (up to 20). Each operation appears as a color-coded icon:

Color	Action Type
Blue	Draw / Create brush
Red	Delete / Remove
Orange	Subtract
Green	Extrude
Yellow	Carve / Clip
Purple	Vertex / Merge / Split

Hover an entry to see its name and elapsed time. Click an entry, then click Replay to undo or redo the history to that point. The timeline records every action that passes through the undo/redo system.

Undo History Browser

The Test tab → History section contains a visual undo history browser with viewport thumbnails. It replaces the plain text history list:

• Up to 30 entries are recorded, each with a color-coded action icon and an 80x48 viewport thumbnail captured at the time of the action.
• Hover an entry to see an enlarged thumbnail preview.
• Double-click an entry to navigate the undo/redo system to that point in history.
• Undo/Redo buttons are integrated into the browser header, with disabled state automatically tracking the undo/redo manager.
• Action icons reuse the same color scheme as the Operation Replay Timeline (blue=draw, red=delete, etc.).

Error Prevention & Forgiveness

HammerForge prioritizes non-destructive workflows so you can experiment freely:

Geometry Previews (Preview Before Commit)

Destructive geometry operations show a wireframe preview overlay before permanently modifying brushes:

Operation	Preview Color	What It Shows
Carve (Ctrl+Shift+R)	Green wireframe	All resulting slice pieces
Intersect (Ctrl+Shift+I)	Green wireframe	The one brush that is kept
Hull of Selection	Green wireframe	The one brush that wraps them all
Clip (Shift+X)	Cyan wireframe + orange plane	Two resulting halves + the cut surface
Hollow (Ctrl+H)	Yellow wireframe	6 wall pieces at the chosen thickness
Extrude (U/J)	Semi-transparent brush	New brush being extruded from the face

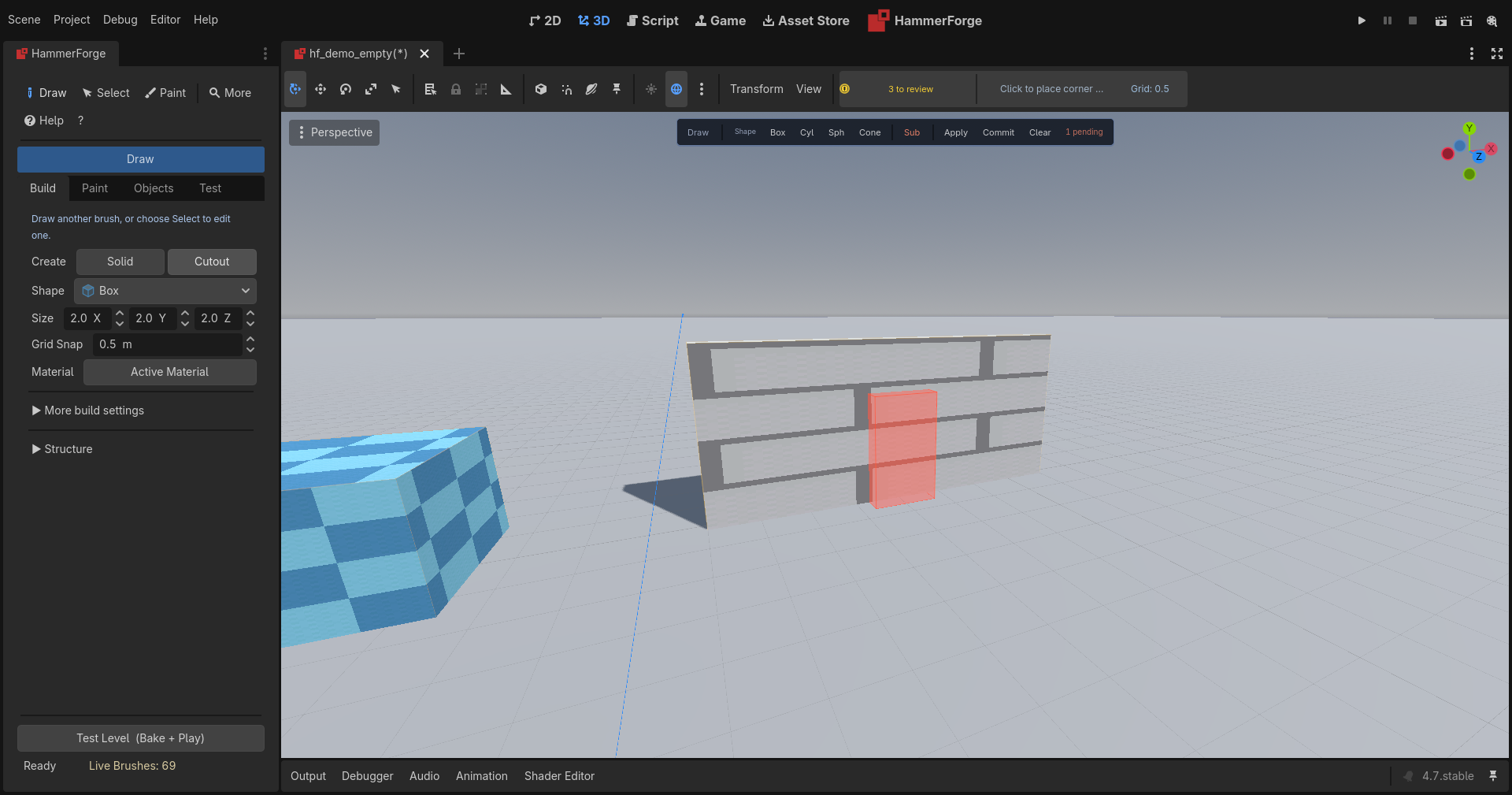

Cut Preview (toggle)	Red CSG cut	Live intersection of overlapping cut and solid brushes

Each preview appears immediately, then a confirmation dialog gives you the option to Cancel and abort without changing anything.

Bulk Delete Safeguard

Deleting 3 or more brushes at once prompts a confirmation dialog. The dialog reminds you that Ctrl+Z can undo the deletion. Deleting 1-2 brushes remains instant (no friction for common operations).

Undo Everything

During an unfinished Draw or Extrude, Ctrl+Z cancels the preview and leaves earlier brushes and undo history unchanged. Press it again when idle to undo the last committed action.

All brush operations (draw, delete, carve, clip, hollow, extrude, move, resize, merge, intersect, material assignment, UV changes) are fully undoable via Ctrl+Z. The Undo History Browser (Test tab) provides visual navigation with thumbnails.

Measure Tool (Multi-Ruler)

Press M to activate the Measure tool. It supports persistent multi-ruler measurements with angle display and snap references:

• Click to set point A, click again to set point B — a ruler line appears with distance, dX/dY/dZ decomposition.
• Shift+Click chains a new ruler from the last ruler's endpoint. Consecutive chained rulers that share a vertex display the angle between them in degrees.
• Up to 20 rulers can be active simultaneously, each drawn in a cycling color palette.
• Ctrl+Click near a ruler to set it as a snap reference line. The snap system will project nearby points onto that line.
• Press A to toggle align mode on/off. Turning it off keeps the ruler you chose, so turning it back on snaps to the same line. With no reference chosen, A uses the newest ruler. A ruler with both ends on the same point has no direction and sets no snap line.
• Press Delete/Backspace to remove the last ruler.
• Press Escape to clear all rulers.
• The HUD shows ruler count, distance of the last ruler, and alignment status.
• Press K to keep the last ruler as a dimension (or Keep Ruler as Dimension in the palette).

Dimensions

A dimension is a length kept in the level (#1699): this doorway is 1.2 m, that corridor is 2 m wide, this jump is 3 m. Each end attaches to the brush vertex, edge middle or face centre it lies on, and a free end stays where it is. A dimension follows the brushes it is attached to through every move, turn and undo, and needs no step of its own. A resize keeps each end on its corner, edge or face, found again by the faces that meet there, so a doorway measured between two walls reads the new width when one is made thicker or longer (#1898). If a Clip cuts away the corner an end was on, that end comes loose: it stays where it was and the dimension is drawn amber. A dimension an older build kept saved no faces for its ends, so it still comes loose on a resize until it is kept again.

A dimension is an entity, like a note: select it to set its Title and its Check in Entity Properties, put it in a visgroup, move it or delete it. Its check is one of At least player width, At least player height, At most jump height, At most step height, or At least and At most with a Value; the player's numbers are the playtest player's own. A dimension whose check fails is drawn red, and Validate lists it by name, with its length and what it needs.

Dimensions are drawn over the viewport, a line with a tick at each end and the length at the middle. Untick Show dimensions under Viewport in the Console's Controls to hide them. They never reach a bake, an export or a running game.

Structures From Numbers

Hollow

Ctrl+H turns a solid brush into walls of the thickness you set. It works on any convex brush (a torus is not one), at any rotation, and it gives you one wall per face — so hollowing a cylinder gives you a pipe, and hollowing a rotated box gives you six rotated walls.

Each wall keeps what was on the outside of the solid: its textures, its surface paint and its sculpts, the way a Clip does (see Cutting below). The inside faces of the walls start unpainted.

The confirmation tells you how many walls you are about to get, because that number depends on the shape: a box makes six, a cylinder makes one per facet plus a top and a bottom. The yellow preview outlines the real walls.

If the thickness leaves no room inside, hollow says so and suggests one that fits. A sphere, capsule or ellipsoid is built from 128 faces unless you give it more Sides, so hollowing one makes up to 128 walls; a smoother one has more faces than hollow takes, and hollow says so. A torus is refused: it is not convex, and hollow works on a brush's outside planes, so its walls would follow the torus's hull rather than its ring.

The walls come out too thin? Shell it again. Select any wall of a hollowed brush and the row becomes an editor for it: the thickness you used comes back, Hollow becomes Re-hollow, and Detach appears beside it. Change the number, press Re-hollow, and the same solid is shelled again at the new thickness. Detach keeps the walls and forgets the hollow, which is what you want once the room is the shape you meant and you would rather edit the walls themselves.

A room you have dragged or turned since hollowing it re-shells where it now stands. Move the walls one at a time, though, and they stop agreeing about where the room is — that reads as editing rather than moving, and the re-shell goes back to the placement it had.

Walls you have reworked are counted first. Move a wall on its own, resize it, retexture it or paint on it, and the row says how many walls are in that state and names Detach. Press Re-hollow and the first press only warns; press it again and the rebuild goes ahead. Change the thickness and the second press has to be earned again, because you agreed to one particular re-shell rather than to all of them.

Walls shelled from a painted solid start with its paint layers. A stroke inside one of those layers counts the wall too, because Re-hollow would put the solid's paint back over it.

Saving the scene and opening it again counts nothing on its own. That holds for a box hollowed with an earlier version too, whose walls a reopen stores in another order: each wall is checked against the order it was saved in, so an untouched one counts nothing and one reworked before the save still counts (#873, #878).

Moving the room as a whole is not reworking it. Every wall shares the same move, the re-shell follows the room, and nothing is counted.

A thickness the brush cannot take is refused before anything is deleted, so a Re-hollow that will not work costs you nothing.

The Structure section

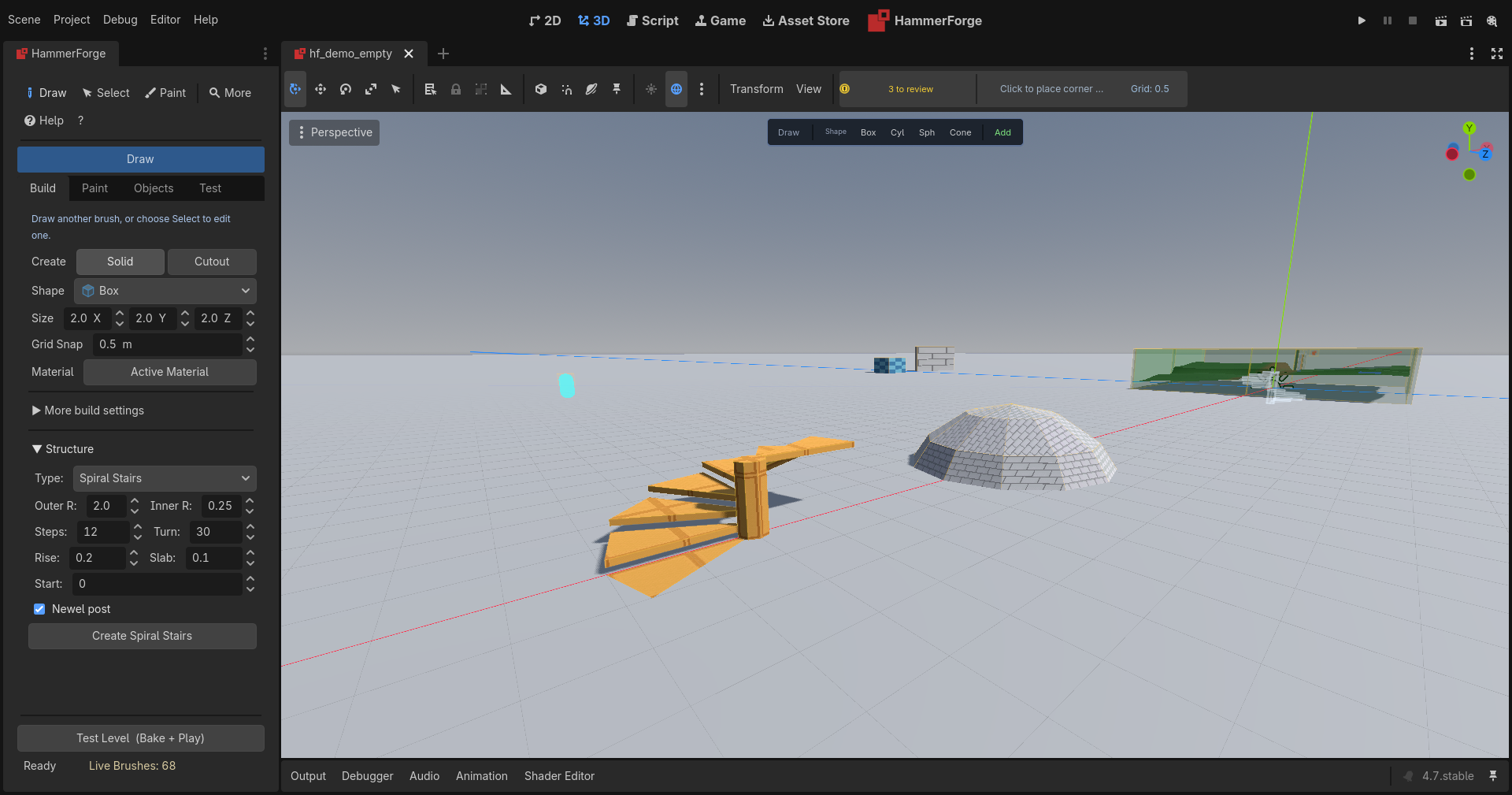

The Structure section in the Build tab builds a whole shape out of a handful of numbers. Pick what you want from the Type dropdown and the settings below it change to that shape's own — a dome has rings and a sweep, a staircase has a tread and a rise, and neither of them has a wall thickness.

There are seven: Arch, Stairs, Spiral Stairs, Dome, Ring, Door Frame, and Trim Run, which is built along wall faces you pick rather than at the selection. Each type keeps the settings you last gave it, so a look at the stairs does not cost the arch you tuned, and the type and its settings come back next session.

Scripts that create or update a structure must pass settings in their declared types: booleans as true or false, numeric settings as numbers, and integer settings as whole numbers. Numeric strings and fractional integers are refused before building.

Press the button (or Ctrl+Shift+A) and it lands centred on whatever you have selected, facing the way that selection faces — select a wall standing at forty-five degrees and the arch you build on it stands at forty-five degrees too. With nothing selected it stands on the world origin, square, with its lowest point at y = 0 rather than its middle, so it stands on a floor there. Then treat it like any other geometry: rotate it, carve a doorway through it, clip a piece off.

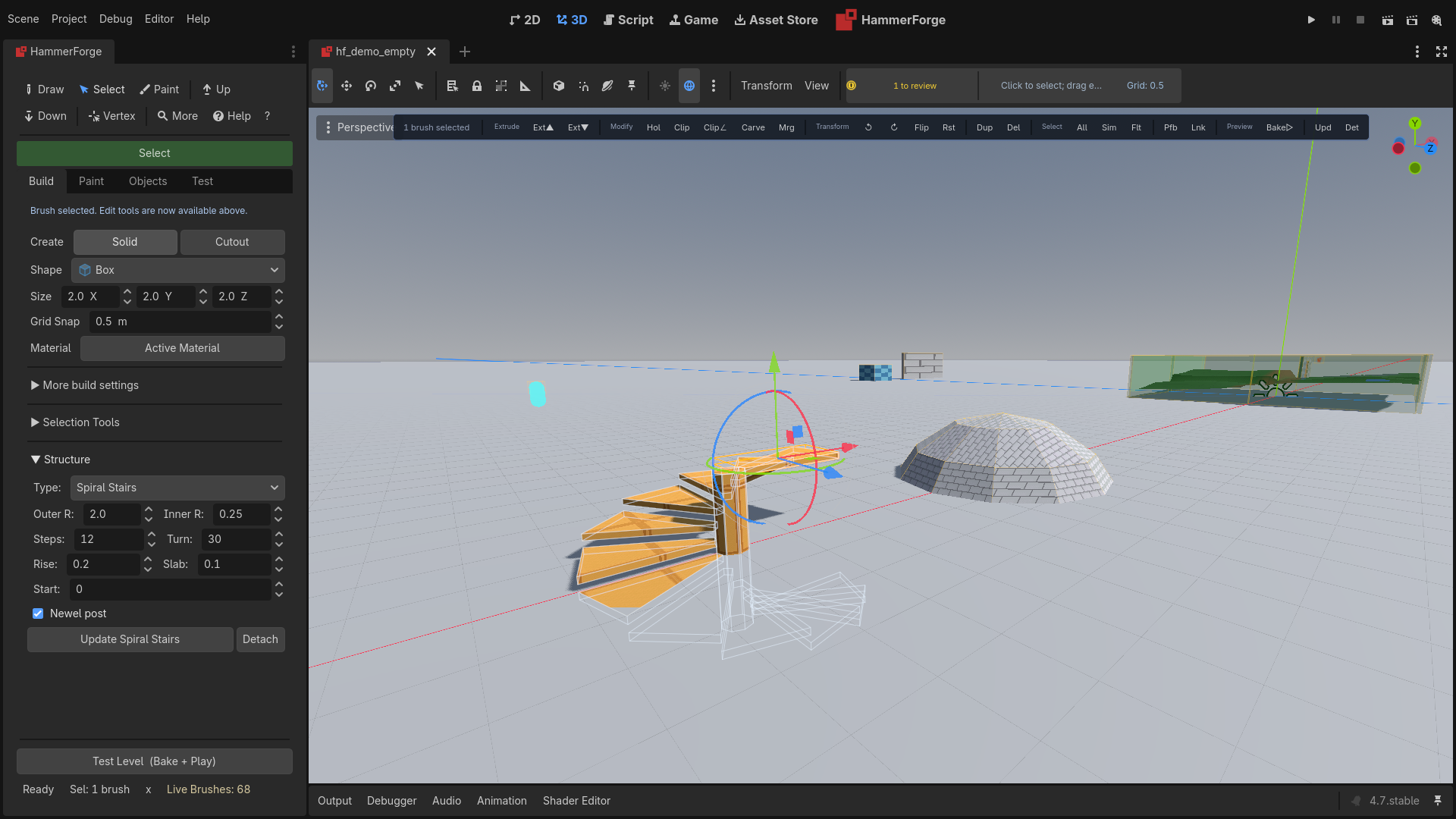

A selection has to agree with itself to hand its facing over: pick two brushes turned different ways and you get the world axes, because there is no single direction to inherit. So does a brush that has been scaled or mirrored in the inspector, whose axes are not a facing at all. Either way the ghost shows the angle before you press anything.

Open the section and the shape draws itself first. A pale wireframe stands where the button would build, and it follows every number as you turn it: a dome gains a ring, a spiral gains a step, an arch widens. Nothing is built until you press the button — the ghost is what you would get if you did.

If a combination cannot be built the ghost disappears and the section says why, so you find out while you are still choosing rather than after you have pressed the button. Every piece has to be a brush the level can keep. A piece that is a box is at least 0.1 on every side, the least a box can be, so Door Frame's Wall and Frame start at 0.1. Any other piece, an arch's, a dome's or a ring's, is refused only when it would be a sliver that Validate reports, and the message says what is thin and what to change: fewer segments, a larger Radius, a thicker Wall (#1605). The ghost belongs to the section: collapse it, or move to another tab, and it goes.

Presets keep a house style. The Preset row under Type lists the presets saved for that type, with Defaults first. Set the numbers, press Save and give them a name; a name already saved for the type asks before it is replaced. Picking a preset only fills the settings, and the ghost follows: nothing is built and nothing moves until you press the button. With a piece of a structure selected, the preset loads into its settings and Update is still a press of its own. Delete removes the preset the row is on, on a second press. The row reads Custom once you change a number by hand.

Presets live in res://hammerforge_presets/structure_presets.json, beside the bake profiles, so commit it and everyone on the project has them. A preset with a value out of range, from an old or hand edited file, is refused by name and the settings keep their values; a setting the structure no longer has is dropped.

Arch

A curved run of brushes from six numbers:

Setting	What it does
Radius	The outside of the arch
Wall	How thick the ring is — the opening is what is left inside
Depth	How far the arch extends along its own axis
Arc	Degrees swept. 180 is a half arch, 360 a full ring, 90 a quarter
Segments	One brush per segment. More segments, smoother curve
Start	The angle the arch begins at

A segment cannot span half a turn or more — a wedge that wide is not a convex shape, and every brush here is convex — so a full ring needs at least three segments. The arch will tell you the minimum if you ask for too few.

Stairs

A flight of stairs, one brush per step, straight or turning at a landing.

Setting	What it does
Width	How wide the flight is, across the direction of travel
Tread	How far one step carries you forward
Height from	Rise: each step climbs Rise. Total: Steps share the Total. Fit: the fewest steps no higher than Rise that climb the Total
Total	The height the stair climbs, floor to floor. Used by Total and Fit
Rise	How far one step carries you up, or with Fit the most it may. Not used by Total
Steps	How many risers it climbs, one brush each. Not used by Fit
Fill	Solid fills under each step down to the base; Open leaves floating treads
Slab	How thick a floating tread or a nosing is
Nosing	How far a tread overhangs the riser below. 0 is none
Collision	Steps collide as they look; Ramp bakes a smooth slope over them instead (see below)
Turn	Straight, or L left, L right, U left or U right at a landing, seen walking up
Before landing	Risers in the first flight, the last of them onto the landing
Landing	How deep the landing is along the first flight
Gap	The space between the two flights of a U

Total and Fit start from the floor height, which is the number you know. A 3 m climb in 16 steps is risers of 0.1875, which the Rise field cannot hold; Height from Total gives it exactly. Fit with a Rise of 0.2 and a Total of 3 takes 15 steps. The line under the settings says what they came to: the steps, the rise of each, the climb, where the landing is and, with Ramp collision, how steep the ramp is. Every piece of a stair is a box, and no box is thinner than 0.1, so every size starts there, and a solid flight whose Total or Fit comes to risers under 0.1 is refused, since its first step is one riser tall (#1582).

A turn puts a landing at the top of the Before landing riser and sends the rest of the steps off it. An L leaves the landing's side at its far end, a quarter turn, so an L landing is at least as deep as the stair is wide. A U comes back beside the first flight with the Gap between them, and its landing spans both. Every piece is still a box, and the first flight stands where a straight flight of the same steps would, so changing the turn on Update rebuilds only the landing and the flight after it (#1410).

Nosing on a solid step is a slab of its own hung off the top of its riser, because a step with a lip is not convex. A nosing is a box, and no box is thinner than 0.1, so a solid nosing is at least 0.1 deep and its Slab at least 0.1 thick. An open tread just grows forward, so its nosing can be any depth. A stair is at most 128 brushes, nosings included.

Solid is what most stairs in a level are — you cannot see under them, so there is nothing to build there. Open is for a flight you can see through.

Keep the rise under what the player can actually climb. In a Godot CharacterBody3D that is the step height on the floor snapping, and a flight one unit over it is a flight the player walks into rather than up.

Spiral stairs

A flight that turns as it climbs. Every tread is computed as the wedge a tread at that radius actually is, which is what a radial array of a box cannot give you.

Setting	What it does
Outer R	How far the treads reach from the axis
Inner R	The hole down the middle. Zero makes treads that meet at the axis
Steps	One brush per tread
Turn	Degrees one tread turns through. Negative turns the other way
Rise	How far one tread carries you up. Zero makes a flat fan
Slab	How thick one tread is
Start	The angle the first tread begins at
Newel post	Fills the middle with a post the full height of the flight

Twelve treads at thirty degrees is one full turn. A tread cannot turn through half a circle or more, for the same reason an arch segment cannot. Nor can a tread or the post be under 0.1 across: a tread turning a degree or two, or nearly half a circle, is a sliver, and the section says so (#1582).

The newel post needs an inner radius to occupy — with the hole set to zero the treads already meet in the middle, and the section says so rather than quietly skipping the post.

Spiral Stairs has a Collision setting too, Steps or Ramp.

Ramp collision

A game's own CharacterBody3D usually has no step up, so it walks into the first riser of a baked stair and stops. Set Collision to Ramp on Stairs or Spiral Stairs and the steps still bake as they look, but their faces leave the baked collision and a smooth slope goes in their place (#1416):

• Stairs: one convex piece per flight, its top through the front edge of every tread, from the floor a tread in front of the first and flat over the top tread, and one box per landing.
• Spiral Stairs: a sloped piece up to each tread along the walking line, half way across the treads, each starting where the last one ends, and the top tread flat. The newel post keeps its own collision.

The bake lays the ramp where the structure stands when you bake, so moving it moves the ramp. It goes on a body of its own, RampCollision, on the level's Physics Layer, with no mesh; Collision Mode 2 puts it in its stair's visgroup body instead, and Mode 0 names each shape after the material of the tread under it, as it names every surface.

A stair keeps the collision of its steps, and the Console says why, when the ramp would not fit it: a piece edited by hand or deleted, a cut reaching it, a piece tied to a brush entity class, a Bake Selected that takes only part of it, or a slope steeper than the 45 degrees the player walks up, which a body would slide down.

Validate reads a Ramp stair the way the bake will build it: where the bake lays the ramp, steps over the player's step height say nothing, and wherever it keeps the steps' collision they are reported as before. A Bake Selected, cordon or Bake Visible Only that takes only part of a stair is about that bake, not the level, so Validate does not count it; the bake says so in the Console (#1588).

Dome

A hemisphere built in rings, one brush per panel.

Setting	What it does
Radius	The outside of the dome
Wall	How thick the shell is. A wall equal to the radius makes it solid
Rings	Bands of panels stacked from the base to the crown
Segments	Panels around the dome. More segments, rounder dome
Arc	Degrees swept around. Less than 360 makes a slice
Sweep	Degrees climbed. 90 reaches the crown, less leaves it open
Start	The angle the dome begins at

A brush dome is faceted, because a patch of a sphere is not a convex solid with flat faces and a brush has to be. Its outer and inner faces are in smoothing group 1, so it bakes shaded round (see Smoothing Groups). Four rings of twelve panels reads as round from inside a room. It is rings × segments brushes, so it will refuse a dome past a few hundred and tell you the number you asked for.

A Sweep below 90 stops short of the crown and leaves it open — an oculus, or the base for a lantern. A Wall equal to the Radius makes a solid dome rather than a shell, which is the shape of a hill.

Ring

A ring with a round tube, one brush per segment, lying flat around its centre: a pipe bend, a ring moulding, a curved handrail.

Setting	What it does
Radius	From the centre of the ring to the middle of the tube
Tube Radius	How thick the tube is. Less than the Radius
Ring Segments	One brush per segment. More segments, smoother curve
Tube Segments	Sides around the tube, 3 to 32. More sides, rounder tube
Start	The angle the ring begins at
Sweep	Degrees it goes round. 360 closes it, 90 makes a quarter bend

Unlike the Torus brush shape, each piece is an ordinary convex brush, so it can be hollowed, carved and vertex edited like any other, and the tube is as thick as you set it rather than following the ring's size. A piece cannot span half a turn or more, for the same reason an arch segment cannot, and a Tube Radius at or past the Radius is refused, because the tube would fold over itself at the centre.

Door Frame

A framed doorway: two posts and a head round a clear opening, and the cut that makes the opening, all one structure.

Setting	What it does
Width	How wide the clear opening is, between the posts
Height	How high the clear opening is: to the head, or to the crown of an arched one
Wall	How thick the wall is that the frame wraps
Frame	How wide each post and the head are on the wall's face
Proud	How far the frame stands out from each face of the wall
Head	Flat, a lintel over the opening, or Arched, a half round arch on the posts
Segments	Pieces in an arched head, 2 to 64. More segments, smoother curve
Cut opening	Also make the cut for the opening

The posts' inner faces and the head's underside bound exactly the opening you set. An arched head is the Arch structure's half circle, its inside the opening's width, resting on the posts, so its Height must be at least half its Width and 0.1 more, for posts a brush tall.

With Cut opening on, the opening is a Cutout like one you draw: it waits in Pending Cuts until you apply it. Change the width and Update, and the cut is resized with the frame, whether you have applied it yet or not; one already applied stays applied. An arched opening's cut is one convex piece, so Validate measures the doorway to its crown and reports one lower than the player.

Like every structure, it lands centred on what you have selected and facing its way, with its width along that selection's X and the wall's thickness along its Z.

Trim Run

A skirting along the foot of a room's walls, or a cornice along their tops, as one structure: a trim profile swept along the wall faces you pick, mitred at every corner and stopped square at every doorway.

Pick the wall faces in Face Select, then run Run Trim Along Faces (Shift+Alt+T, the command palette, or the Space menu while faces are picked). Or set the Structure section's Type to Trim Run and press Create Trim Run, which does the same. Either way it builds with the settings the section holds for a Trim Run.

Setting	What it does
Edge	Bottom, a skirting on the faces' bottom edges, or Top, a cornice hung from their top edges
Offset	How far in from that edge the trim stands: up from the bottom, down from the top. A dado rail is a Bottom run with an Offset
Profile	Flat, Chamfer, Round, Cove, Ogee or Stepped, the profiles the Path tool's trim has
Width	How far the trim stands out from the wall
Height	How tall the trim is up the wall
Segments	How many pieces a curve of the profile is cut into

How the faces are read:

• Only upright faces are taken. Pick a sloped one and nothing is built, and the message names the face.
• An edge is where a face is open to the room. Another brush in front of a face hides what it covers, so a wall that runs on under the floor or past the room's corner gives the edge you see, on the floor and in the corner. A face another brush hides completely is left out, and the message names it.
• Edges that meet end to start chain into runs, closed round a room or open along a few walls. A run breaks where the picked faces do not meet.
• Every corner, inside or outside, is cut on the plane that bisects its two walls, so the pieces meet with no gap and no overlap.
• A cut brush through a wall, pending or applied, is a doorway: the trim stops square either side of it, leaving a gap exactly the cut's width. A cut the trim does not reach, a window above a skirting, leaves it whole; raise the Offset to the window's height and the same window breaks a rail.
• A profile that is not convex is cut into bands as the Path tool's trim is, each band a brush of its own.

The run is kept on the structure beside its settings. Select any piece and the section reads Update Trim Run: change the profile, the size, the edge or the offset and Update rebuilds along the same run, in a level saved and reopened too. The run is read when you build, so a wall moved afterwards keeps its old trim until you Re-pick: select a piece of the trim, open Face Select, pick the faces it should follow now and press Re-pick beside the section's button, or pick Re-pick Trim Run in the Space menu. Re-pick keeps the settings and replaces the run; the faces it already follows change nothing. A face too short for the trim to turn both its corners is refused by name, and the trim already there stays.

A Trim Run's own pieces hide no wall, so a cornice or a rail can be run along walls that already have a skirting.

Changing a structure after you have built one

Every structure remembers the numbers that made it. Select any one of its pieces and the Structure section changes: the type switches to whatever that structure is, the settings that built it load into the controls, the button reads Update, and a Detach button appears beside it. The context toolbar shows Upd and Det for a selected piece too, doing the same.

Change anything and the ghost shows the new shape standing over the real one, so you can see the arch getting wider before you agree to rebuild it. Press Update and the structure rebuilds in place. Everything you painted on it comes back on the same faces: per-face materials, UV projection, scale, offset and rotation, and paint layers. If you increase the piece count, the new pieces take the whole-brush material most of the pieces have (the earliest piece's on a tie), and their faces start plain, because there is no face of theirs to inherit from. A brush entity you tied the pieces to comes back too, with its name, wires and properties, and when the whole structure was one entity the new pieces join it. Each piece keeps its node name, so a wire aimed at one still finds it. Press Update with nothing changed and the section says Nothing to update: the pieces stay exactly as they are, and so does anything aimed at them.

If a change would drop painted faces, Update says so and waits. Cutting the piece count means the pieces past the new end have nowhere to come back to. The section tells you how many carry paint, and a second press of Update goes ahead. Detach is the other way out.

This is the point of it: a radius, a segment count and a step rise are numbers you get right by looking at the result, not in advance.

A structure you have moved or turned rebuilds where it now stands. Build an arch, drag it into the doorway it belongs in, rotate it to face the way the doorway does, then widen it — it stays in the doorway, still facing that way. It takes more than half the pieces agreeing to say where a structure went, so nudging one brush of a twelve-piece arch does not lose the other eleven. That one brush is a hand edit; the arch is still where you dragged it.

If the pieces genuinely no longer agree — half of them one way, half another — the section says so: "These pieces no longer agree on where the structure is. Update will rebuild it where it was created — Detach to keep them where they are." That is the warning worth reading, because where the structure lands is a bigger surprise than what shape its pieces are in.

A flip is the exception. Mirroring a structure turns every face inside out, and rebuilding through that would give you geometry that looks right in the viewport and wrong in the bake — so a mirrored structure is not treated as relocated. Its pieces read as edited, and Detach is the way to keep them.

If you have edited pieces by hand, the section says so — "3 pieces have been edited by hand. Update will rebuild over them — Detach to keep them." Vertex drags, clips, bevels, resizes and turns all count, and so does a deleted piece, which Update puts back. Update still does what you asked; the warning is so that Detach is a choice you make rather than a lesson you learn.

A flight of stairs built with an earlier version reads correctly after its scene is reopened too. Each step is checked against the order it was saved in, so an untouched one counts nothing and one edited before the save still counts (#873, #878).

Detach stops a structure being a structure. It keeps every brush exactly where it is and forgets that a structure made them. Use it once you have started editing pieces by hand. Ctrl+Z will bring an overwritten edit back, but detaching is the deliberate answer.

Turning a whole structure is not recovered the way moving it is — a rebuild squares it back up. The warning fires, because every piece reads as edited.

A structure that has been clipped or carved still updates; the pieces the structure does not recognise any more are simply left alone.

Cutting: Clip and Carve

Clip splits one brush into two. Carve cuts one brush out of every brush it overlaps. Both work on the real geometry, so a cylinder, a polygon-tool brush, a merged brush and a rotated anything are all fair game. Carve asks to confirm only when a selected carver cuts something; when none does it says why and leaves nothing in the undo history (#1267).

Key	Action
Shift+X	Clip the selected brush across its middle, level with the floor
Shift+Alt+X	Clip along the selected face's plane
C	The Clip tool: cut along a plane you place with points
Ctrl+Shift+R	Carve
Ctrl+Shift+I	Intersect

Clipping along an angle

The quickest way to an angled cut is Clip to Face Plane. Select the brush or brushes you want to cut first, then enter Face Select, click the face whose angle you want, and press Shift+Alt+X. Everything you had selected is cut along that face's plane, as a single undo step.

The order matters because Face Select hides the object selection while it is open — that is what makes clicking a face unambiguous. The command remembers what you had selected on the way in. Once the cut is done it releases both the face and the objects and closes Face Select, because the brushes it was holding have just been replaced.

That face can belong to any brush, including one you drew purely as a guide and delete afterwards — draw a box, rotate it to the angle you want, and use one of its faces as a straightedge.

Sweeping faces along a bend

Sweep Faces, in the palette, carries the faces picked in Face Select somewhere else as a run of brushes (#1714): a pipe with a flange, an arched corridor's profile or a bevelled beam bent round a corner. Pick the faces, all in one plane and facing one way, and run it. The dialog takes the path: - Straight: a run of Length along the way the faces point. - Arc: a circular bend of Angle degrees with Radius, turning Toward an angle along the faces: 0 is their right, 90 their up, 180 their left, and any angle between. - S bend: Length along and Offset aside, toward Toward, ending facing the way it began.

On an Arc the dialog leaves the viewport the pointer and shows two handles there (#1885). The orange one stands where the bend turns about, with a line along the axis it turns about. Drag it along the faces' plane: its distance from the faces' middle is Radius, in grid steps, and its direction is Toward, in the rotate snap's steps. The yellow one stands where the first turn ends. Drag it round the pivot to set Angle, in the rotate snap's steps, 15 degrees unless the dock says otherwise, and on past a half turn. The fields follow each drag, and a value typed moves its handle. A right click or Esc during a drag puts the values back as the press found them, and holding Ctrl drags either handle off the grid.

Segments sets how many pieces, and Iterations repeats the sweep from where it ended, so four quarter arcs close a loop and a few repeats make a long run of bends. Each face is swept as its own section, and each piece is one convex brush between two cuts, so neighbours meet face to face. The pieces are outlined in cyan as the values change. A bend too tight for the faces' width folds a piece back on itself: it is drawn red, OK is greyed out, and nothing is made. End width scale and End height scale narrow or widen the run: the far end is that part of the start's width and height, spread evenly along the path, for a funnel, a tapering beam or a pipe that steps down; each piece is still convex and meets the next face to face (#1899). Each side of a piece takes the look of the face of the source brush that meets the swept face along that edge: its material, how its texture is laid, Hidden and its smoothing group, so a wall with brick sides and a concrete top keeps them down the run, and the ends take the swept face's own. The pieces are made as one group in one undo step.

The sweep is kept as a structure, as a Trim Run is (#1885). Select any piece and the Structure section reads Update Sweep with the values it was made with: more segments for a smoother bend, a wider radius, another angle, and Update rebuilds it in place in one undo step, in the group it was in, with each piece's look, in a level saved and reopened too. A change that would fold a piece is refused and the sweep stays as it was. Re-pick sweeps a new set of faces with the same values, in their looks, keeping only what was painted on the pieces by hand (#1932), and Detach leaves plain brushes.

The Clip tool

For a cut that no face lines up with, press C with the brushes to cut selected, and place the plane with points. Points land on a face or on the grid, and snap as a drawn point does.

• Two points make a plane through them that runs along the axis the view looks down most. Two clicks in a top view make an upright cut; two in a front view make one that runs front to back.
• A third point makes the plane through all three, for a sloped roof or a corner taken off.
• A drag places the first two points at the press and the release.
• Drag a placed point to move it. The preview follows.
• Keep in the tool's settings, or Tab, chooses what stays: both pieces, the piece in front of the plane or the piece behind. The piece that would go draws faded red and a kept one cyan.
• Enter cuts every selected brush the plane passes through, as one undo step named Clip. A brush it misses, or one in a locked visgroup, is left alone.
• Backspace takes off the last point. Escape clears the points, and leaves the tool when there are none.

The new faces take the material of the face the first point was placed on. When the first point is on the grid they take the Active Material if it is in the palette, and otherwise the material of the face beside them, as Clip does.

What you get back

Half a box is still a box: it keeps its resize handles and behaves exactly as it did before. A box piece thinner than 0.1, the least a box can be, comes back Custom instead, so it keeps the thickness it was cut to, and so do Carve's and Hollow's (#1598). An angled piece cannot be described by a box, so it comes back as a Custom brush — still fully editable, but sized by its vertices rather than by width, height and depth.

Both pieces keep the original's material, its per-face textures, its operation, its visgroups, its group and its entity class. A face imported from a .map keeps the texture name it came in with, so a cut trigger is still AAATRIGGER on export. If the brush was part of a brush entity, every piece is that entity, with its name or tie, its properties and its wiring, so a door clipped to fit a frame is still one door. Carve and Hollow do the same, and Merge and Intersect make the brushes of one entity one brush of it. Both refuse brushes that are not all one entity, or not all plain geometry.

Surface paint comes through too. Each piece of a painted face keeps the paint that was on that part of it, and the new cut surface starts unpainted. The pieces' paint is their own, so painting one afterwards leaves the other alone. Carve and Hollow keep paint the same way.

A sculpted face keeps its sculpt where the piece of it is still a four-cornered face: a straight cut across a sculpted floor leaves both halves sculpted, each on the same surface. A cut that takes a corner off leaves a three or five-cornered piece, which a sculpt cannot be laid on, so that piece comes out flat and the Output panel says which brush lost it. The Clip, Carve and Hollow confirmations say how many sculpts the cut will drop before you commit (#871). Undo puts the brush back whole (#863).

The cyan preview shows the two real pieces before you commit, so an angled cut looks like what you are about to get.

Carving

Carve removes the carver's volume from everything it overlaps and then consumes the carver. The pieces left behind are whatever survives outside the carver, so a corner cut leaves a few pieces and a slot driven right through leaves two.

A carver that would swallow a brush entirely leaves that brush alone rather than deleting it — nothing vanishes without a preview showing it first.

A hidden brush is left alone too. A mapper who hides the outer walls to work inside a room can carve a doorway through an inner wall without cutting the wall they cannot see, and the confirmation counts the hidden brushes the carve skips (#1710).

Intersecting

Intersect (Ctrl+Shift+I) keeps only the volume the selected brushes share, as one convex brush: a box and a cylinder overlapping at a corner give a quarter round column, and a wedge intersected with its room is trimmed to fit it. Select the brush to keep first. It is cut down by the planes of each of the others in turn, and what is left replaces them all in one undo step, so one Ctrl+Z brings every brush back. The green wireframe shows the brush that is kept before you confirm.

What is left is a piece of the first brush: it keeps that brush's operation, visgroups, group and brush entity, and its faces keep their textures, paint and sculpts as a piece of a carve does. A face cut by another brush takes the look of that brush's face, its texture and how it is laid on. Brushes that share no volume, that mix solid brushes and cuts, or that are not all one entity are refused, and nothing changes.

Hull of Selection

Hull of Selection (the command palette, or Hull on the context toolbar) replaces the selected brushes with one brush, the convex hull of all their corners, whether they touch or not: a ramp from one ledge down to another, a column tapering from a small top block to a wide base, a wedge between two posts. Merge stays as it is, the exact union that refuses brushes that do not touch, so nobody asking for a union gets a hull. The green wireframe shows the brush before you confirm, and it is one undo step.

The brush is turned as the first selected one is and keeps its operation, visgroups, group and brush entity. A face of the hull on an old face's plane takes that face's material and texture, the largest one there; a face on no old plane takes the Active Material, or with none set the look of the old face it most nearly faces as. A face that grew cannot keep a sculpt, and the confirmation and the message both say how many go. Brushes that mix solid brushes and cuts, or that are not all one entity, are refused.

Hollow (Ctrl+H) handles rotation too. It shells a brush against its own face planes, so a turned box gives you six turned walls. See Hollow.

Moving by an Exact Offset

Offset (Alt+G, the command palette, or Offset... in the Space menu) opens a small popup at the cursor with X, Y and Z and a World / Local choice. Type the distance and press Enter: placing a brush 3.25 up, or a vertex 0.5 along a wall, no longer means changing the grid, nudging and changing it back. The move is exact, never rounded to the grid, and it is one undo step.

What it moves is what you have picked:

• Brushes and entities move as a nudge moves them.
• In vertex mode, the selected vertices move, and the faces round them follow.
• In Face Select, each picked face moves by its corners together, so the faces round it stretch to meet it.

A vertex or face move that would leave a brush other than a convex solid changes nothing and says why, as a vertex drag does.

Local goes along the selection's own axes, so a turned wall can be pushed along its own length. When the selection does not all face one way, or a part of it is mirrored or scaled, there are no axes to share: the popup says so under Local, and the move goes along the world's.

The fields keep the last offset and choice, so doing it again is Alt+G, Enter. During a draw or an extrude, Alt+G does nothing; typed numbers there are the draw's.

Rotating and Mirroring

Select anything — brushes, entities, or both — and turn it.

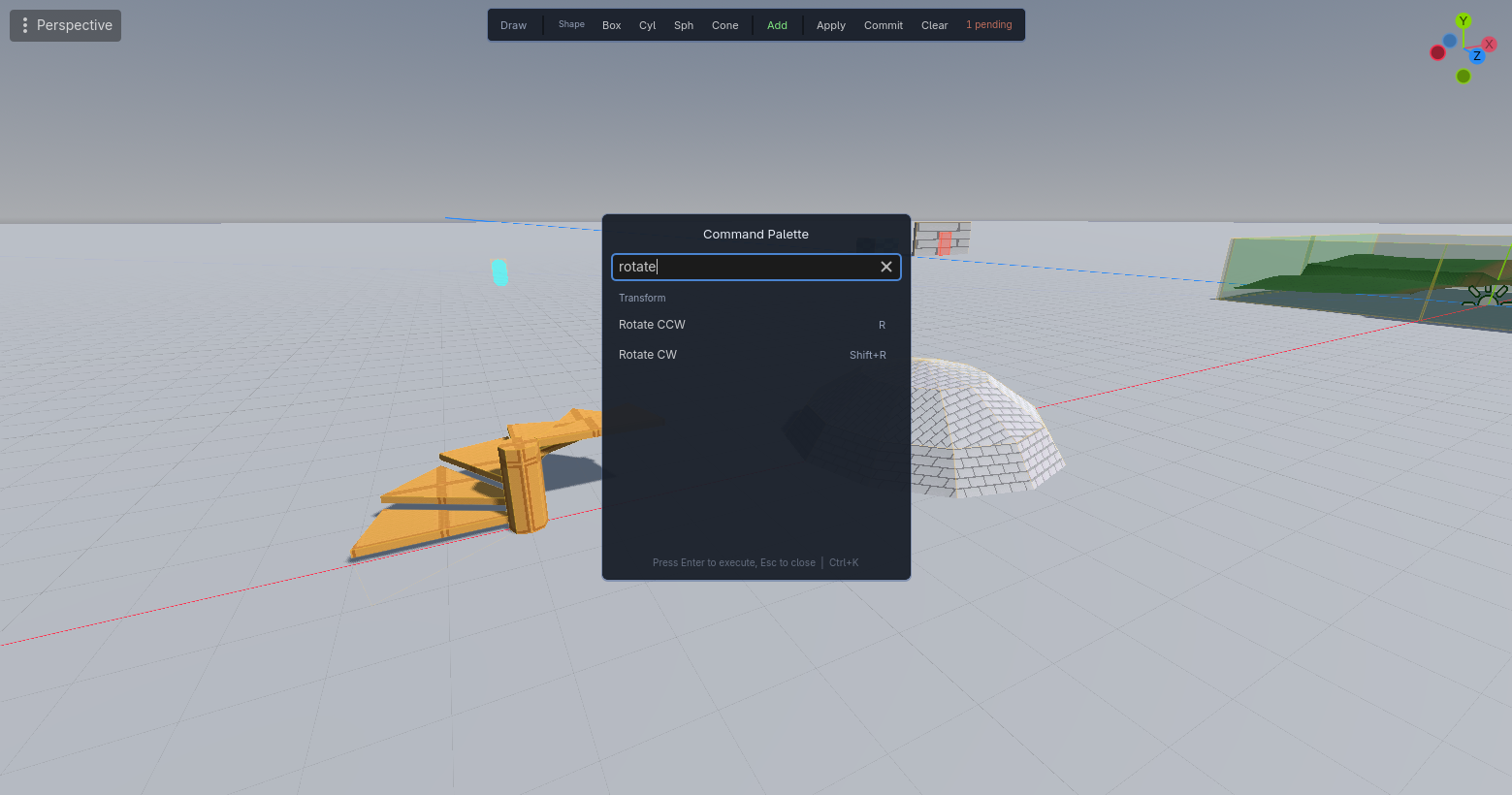

Key	Action
R	Rotate counter-clockwise by the step
Shift+R	Rotate clockwise by the step
Shift+M	Flip (mirror) the selection
Alt+M	Mirror Copy: keep the selection and add mirrored copies
Alt+R	Reset rotation
Alt+P	Pick Pivot: click the point to turn about
Shift+Alt+P	Clear Pivot: back to the selection's centre

Which axis. If you have an axis lock set (X / Y / Z), that is the axis. Otherwise rotate uses Y — a yaw, which is what you want almost every time — and flip uses X, a left-right mirror.

What it turns around. The Pivot picker in Selection Tools chooses between the centre of your selection, the world origin, the first object you selected, and Pick, a point you click. The selection centre is the median of the objects' own positions, which means pressing R four times with a 90° step puts everything back exactly where it started, however lopsided the selection is.

Picking a pivot. Choose Pick, or run Pick Pivot (Alt+P), and click in the viewport: the pivot snaps to the brush vertex, edge midpoint or face centre nearest the cursor, within a few pixels. A door then hinges on its edge, and a wall swings round its corner post. A small cyan cross marks the pivot for as long as Pick is the Pivot. Rotate, Flip, a radial Duplicate Array and Mirror Copy through the Pivot all use it until you choose another, or Clear Pivot (Shift+Alt+P) goes back to the selection's centre. The point is saved with the level.

The pick waits for one click and the mode banner says so. A click with nothing in reach says that and waits for another. Escape, a right click, changing tool or mode, the editor losing focus or switching scenes put it away.

The step. Set it in Selection Tools. 15° by default; 45° and 90° are the other two you will reach for.

Texture Lock applies. With it on, the texture goes round with the brush, the same way it travels with a brush you move. Every face of a box under a yaw keeps its texture where it sits on the brush, upright as it was. Turn Texture Lock off and the texture keeps its place in the level instead, so the brush turns under it.

This is the opposite of what it did before planar UVs moved into world space. A projection taken from a brush's own vertices did not move when the brush did, so back then the compensation was the thing that let go of the texture. Now the projection follows the level and the compensation is what holds the texture on the brush.

A face that swings out from under its own projection, like a wall under a yaw, lands on a different projection axis. The texture goes round with it, but the placement is re-derived rather than carried exactly, because a planar projection cannot say more than which plane it reads.

After you rotate

Clip and Carve both handle rotation — they cut the real geometry wherever it is.

Hollow handles it as well. It shells a brush against its own face planes, so a turned box gives you six turned walls rather than a refusal.

So Reset Rotation (Alt+R) is there for when you want a brush square again, not because anything has stopped working on it. It does not move your geometry: if you turned a brush by exactly 90°, it folds that quarter turn into the brush's dimensions instead of snapping the brush back to its old footprint, so the brush stays exactly where it looks like it is.

Apply Rotation and Scale

A brush stretched with Godot's scale gizmo keeps its old size, so typed sizes, the resize handles and Hollow's wall thickness all work in units that are not metres along the stretched axis. Apply Rotation and Scale (Build > Selection Tools > Transform, and the command palette; no default key) folds each selected brush's rotation and scale into its shape and leaves it with no rotation or scale of its own. Nothing moves in the world, and every face keeps its look.

A box under a scale or a quarter turn stays a box, with the change in its size, and a sphere stretched unevenly becomes an ellipsoid. A mirrored brush comes out the right way out. Anything else keeps its exact shape as a Custom brush. The toast names each brush that could not keep everything:

• a turned round shape, or a cylinder stretched unevenly across its round side, becomes Custom and loses its resize handles and Sides
• a Cylindrical face is projected in the brush's own space, so the UVs it shows are written into its custom UVs
• a sculpted face cannot keep its heights under an uneven scale, so that brush is left alone; a turn and an even scale keep the sculpt
• a structure piece now reads as edited, and Update warns before rebuilding over it

One press is one undo step, and undo gives back the shape, size and transform each brush had.

Flip

Mirroring is exact. A mirrored box is still a box and keeps its resize handles; a shape that a mirror genuinely changes, like a wedge, has the mirror written into its faces and becomes a Custom brush. Either way the faces stay wound the right way out, so a mirrored brush never bakes inside out.

A sculpted displacement is mirrored with its face. The sculpt moves to the mirrored side, and every height, blend value and custom offset lands where the mirror puts it, down to which way each grid cell folds. Flip it back and you get the original sculpt exactly. A box keeps its resize handles here too, and resizing it afterwards keeps the mirrored sculpt the way round the flip left it. The same goes for a sculpted brush mirrored through a negative scale in the Inspector: the mirror is taken off and the sculpt stays where it was.

Mirror Copy

Symmetric rooms and paired stairs are one half and its mirror. Mirror Copy (Alt+M, or the button on the Mirror row under Transform) leaves the selection where it is and adds a mirrored copy of it across each axis ticked on that row, X, Y and Z, and across each combination of them: X alone makes one copy, X and Z make three, all three make seven. Alt+M runs with the boxes as they stand, and the whole of it is one undo step.

Where the mirror stands. With Selection Edge ticked, which it is to begin with, each plane goes through the far (+X, +Y, +Z) side of the selection's bounds, so the copy lands flush beside the original, touching it and overlapping nothing. Untick it and the planes go through the Pivot the rest of Transform uses.

Each copy is a duplicate put through Flip, so everything under Flip above holds for it: it is the right way out, a box stays a box, and each face's material, UV settings, paint and sculpt land on the face the mirror sends them to. Entities are copied with their angles mirrored. A copy gets its own brush id and, like a duplicate, is a brush entity of its own, with a fresh name. The copies join the selection, so the mirrored whole moves as one and a second Mirror Copy mirrors all of it.

Texture Lock decides the texture, as it does for a move. On, the texture is mirrored with the copy, so the copy shows the mirror image of the original. Off, the copy reads the level's texture where it lands, as Flip leaves a brush.

Shear

Leaning walls, sloped buttresses, a parallelogram floor and a staircase rising along a slanted wall are all shears. Shear leans the whole selection at once: one side of its box moves along an axis and the opposite side stays put, so everything between leans by the same amount and brushes that met still meet.

• The Shear tool (the command palette, or a key you give it in the Shortcuts dialog) draws the selection's box with a handle in the middle of each side. Drag a handle along its side: that side moves, held to the grid, and the opposite side stays put. Hold Ctrl to drag off the grid, and press Escape to let the drag go. A green outline shows each brush leaned before you let go.
• The Shear command asks for it in numbers: the axis that moves, the axis it leans over, the amount in metres per metre or in degrees, and which side stays put. A wall leaned 0.5 m over 3 m is 0.167 metres per metre, or 9.46 degrees. The dialog opens as you last left it.

Every corner of every brush moves by the one shear, and a shear keeps a flat face flat, so a convex brush stays convex. Each brush keeps its turn, with the lean folded into its faces, so a box becomes custom, as Apply Rotation and Scale makes one. A point entity moves with its origin and is not turned. A brush with a sculpt is left alone, since a lean would stretch it, and the toast names it. With Texture Lock on, each face keeps its texture where it showed it; off, the face's projection is laid on its new corners afresh. It is one undo step, named Shear.

Arrays

Duplicate Array in Selection Tools has three layouts:

• Linear — copies along the X/Y/Z offset, one step further each time.
• Radial — copies around an axis. Set the step in degrees, or tick Fill 360° and let it space the copies and the original evenly around a closed ring. Each copy is turned as well as moved, so a ring of arches faces outward rather than all facing the same way.
• Grid — a 3D lattice. Set the cell count per axis (counting the original) and the X/Y/Z offset becomes the spacing. Every axis needs at least one cell; a count below that is refused rather than treated as one, the same way the linear and radial counts are.

Turn any of those controls and the copies draw themselves. A pale wireframe shows the copies Create Array would make, standing where they would stand, and it follows every number as you change it. The line under the controls says what you are about to get — "12 copies of 1 brush". Nothing is created until you press the button.

The ghost waits to be asked for: selecting a brush is not asking about arrays, so it appears once you touch an array control and goes again when you create the array, clear the selection, or leave the Build tab. One more tick of a control brings it back.

An array has a ceiling of 256 brushes. The cell counts go to 64 a side, which is a lattice of over a quarter of a million brushes — not an edit but a hang. Ask for more than the ceiling and the ghost disappears and the line tells you the number you asked for, so you know which control to turn back. Create Array refuses the same arrays for the same reason, and so does Update Array: the ceiling is not a property of one button, so raising an existing array past it is refused too.

A refused array costs you nothing. Whether you are creating or updating, the refusal lands before anything is built or taken away. Type a count the layout cannot use into an array you already have, press Update, and the copies stay where they are with the array still selected, ready for a number that works.

Ctrl+Z takes an array back out. All three layouts are one undo step, so an array you did not want goes away in a single press rather than one copy at a time.

An array can be changed after you have made it. Select any piece of one — the original, or any copy, whichever you can see — and the section becomes an editor for that array: its layout, its numbers, and Create Array becomes Update Array. Turn the count up, switch the layout from Linear to Radial, move the offset, and press Update. The copies are rebuilt where they now belong. Pressing Create with the original still selected does the same thing, so the button says Update one press after it said Create.

Three buttons, three different answers:

• Update Array rebuilds the copies from the numbers on screen. The array itself is kept, so you can keep tuning it.
• Detach keeps every copy exactly where it is and forgets the array. This is what you want when the layout has given you what you needed and you now want to edit one copy on its own.
• Remove Array deletes the copies and keeps the original.

A ring keeps turning about the point it already turns about, so raising the count of a radial array does not send the ring over to whichever copy you had selected. And Fill 360° is a way of arriving at a step rather than something the array remembers, so an array loads with the step it actually has and the box unticked.

Update says what it would undo. Rework one copy of an array on purpose — drag it, resize it, retexture it, add a paint layer to it — and the section says so: "1 copy has been edited by hand. Update will rebuild over it — Detach to keep it." Press Update and nothing happens the first time; the status line asks you to press it again. Detach is the other answer, and it is the one that keeps what you did.

Moving the original is different, and reads differently: "The original has moved. Update will bring the copies over to follow it." Nothing of yours is lost there — an array following its source is what an array is for — so Update goes ahead on the first press.

Painting inside a layer a copy already had is noticed when you press Update rather than when you select. Reading every copy's paint on each selection change would cost more than the check is worth, so the line may say nothing until that first press, and the press asks (#875).

R is also the Rect tool in paint mode. Paint mode gets first claim on it, and the whole rotate/flip group is skipped while paint mode is on, so the two never fight over the key.

Convert to Brushes

A blockout made with Godot's CSG nodes, or a crate modelled as a mesh, can join a level as brushes. Select the nodes and pick Convert to Brushes from the command palette or the Space menu:

• a MeshInstance3D whose mesh is a closed convex solid becomes one Custom brush, a face per flat side, each wearing its surface's material with the mesh's own UVs
• a CSGBox3D becomes a box, a CSGCylinder3D a cylinder, or a cone when its Cone is on, with its sides, and a CSGSphere3D a sphere; a cylinder of three or four sides becomes a Custom prism or pyramid
• a CSGPolygon3D in Depth mode with a convex outline becomes a Custom prism
• a CSG node's material goes on every face, and a shape inside another CSG node that subtracts becomes a cutting brush, placed after the shapes it cuts

Each brush stands where its node stood, keeping the node's turn. A scale or a mirror on the node is folded into the brush as Apply Rotation and Scale folds it, so its size reads in metres. A material joins the palette when it is not in it.

A concave mesh or polygon, a mesh that is not closed, a CSG node with CSG children, and one that intersects its parent are refused, each named in the toast with why, and left as they were. The nodes that convert are hidden, not deleted, and the brushes are selected. The whole conversion is one undo step: Ctrl+Z takes the brushes away and shows the nodes again.

Command Palette (Ctrl+K)

The command palette is a searchable action list. Open it with Shift+?, F1, or Ctrl+K.

• Type to filter actions by name, by keybinding, or by another word for the command. The best match is the top row: an exact name, then an exact other word, then a name that starts with what you typed.
• Other words: "shell" finds Hollow, "slice" and "split" find Clip, "subtract" finds Toggle Solid / Cut, "texture" finds Apply to Brush, "ho" finds Hollow. The row shows the word it matched, as "Hollow (shell)".
• Your own words: put them in hammerforge_presets/aliases.txt, one alias = command_id a line, # for a comment. Yours win over the built in ones. A line the palette cannot read, or one that names no command, is left out with one warning in the Output panel. The file is read when the editor starts.
• Fuzzy search: if nothing holds what you typed, the palette finds approximate matches using subsequence matching with word-boundary bonuses
• "Did you mean: ..." suggestion appears when fuzzy matching kicks in
• Actions gray out when unavailable (e.g., Hollow requires a brush selection), and the tooltip says why
• Press Enter to execute the top enabled row
• Press Esc to close without executing

Adjust Last

Hollow with the wrong wall thickness, a clip in the wrong place, an array one copy too long: change it after the fact (#1867). After Hollow, Clip, Nudge, Rotate CW or CCW, or a Duplicate, Radial or Grid Array, a small Adjust panel in the bottom right corner of the viewport shows the settings the command ran with. Change one and the command's step is undone and made again with the new value, so the history still holds one step for it and one Ctrl+Z gives back what was there before the command. A value the command refuses, such as walls too thick for the room or an array past 256 brushes, is asked about first: the step stays as it was, the panel goes back to its value and a message says why (#1995). Held arrow keys or repeated R presses that make one step show their total. Save keeps the settings under a name, and the list beside it puts a saved set back on the last step. The names are kept with your preferences, by command.

Clip to Face Plane and Replace Material show in the panel too, with what they were made from: the brush and face a cut ran along, and the material swapped and the one put in its place, shown and not changed there. Replace Material's Scope and Reset UVs can be changed (#1896).

The panel closes when any other step lands, an undo included, or with its x. Adjust Last in the palette, with no key by default, opens it again for the last step, or says there is nothing to adjust when the last step is another command's.

Repeat Last Command

Repeat Last Command runs the last command that changed the level or the selection again, on what is selected now: hollow one room, select the next, Repeat. It uses the settings the dock holds, so Hollow keeps its wall thickness. A change in Adjust Last goes into the dock too, so after a Hollow changed to 0.5 m there, the next Hollow and Repeat Last Command are 0.5 m, as Repeat Run is; an array's count, step and spacing follow the same way (#1896). Toggles, views, panels, Select All and Deselect All never become the command it repeats. A selection the command refuses gets the command's own message. It has no key by default; give it one in the shortcut dialog.

With nothing typed, the palette shows Repeat: Hollow as its top row when there is something to repeat, then the last eight commands you ran under Recent, newest first.

Repeat Run

Repeat Run plays every command, move and turn you made since you last changed the selection by hand, again, on what is selected now, as one undo step (#1735). For a stair that turns as it climbs: select the first step, Duplicate, move the copy up 3 m, turn it 15 degrees, then press Repeat Run once for each step after. After Duplicate the copy is the selection, so each press makes the next step from the last one.

A move or turn is kept as how far it went, not where it ended: the arrow keys, Page Up and Page Down, Rotate CW and Rotate CCW, and a drag of the move or rotate gizmo. A gizmo turn is kept when it is about the X, Y or Z axis. Hollow, Clip, Clip to Face Plane, Replace Material and the Duplicate, Radial and Grid Arrays keep the settings they ran with: Radial Array of 6 round one pillar, select the next pillar and Repeat Run, and it gets the same ring, turned about the pivot it gives now (#1896). The run also holds the commands the command line can run on a selection, such as Carve, Merge, Move to Floor and Snap to Grid. Adjust Last changes the run's step as it changes the level.

• Starting over. Select something else by hand, or with a selection command such as Select Similar, and the next command starts a new run. Until then Repeat Run still plays the last run, on what you have selected: hollow and clip one room, select the next, Repeat Run.
• What it cannot play. A change the run cannot hold, such as Flip, a texture command or Delete, ends the run, and the next one starts after it. Clear Run empties it. Ctrl+Z takes a step out of the run along with the level.
• Refusals. A step that is refused on the new selection stops the run, takes back the steps it had already made, and says which step and why: "Repeat Run stopped at step 2 of 2, Hollow (0.5 m): ...".
• What it holds. With nothing typed, the palette shows Repeat Run: Duplicate, Move +Y 3 m, Rotate CCW 15° Y under Repeat once the run holds two steps, so you know what a press does before you make it. Neither command has a key by default; give them one in the shortcut dialog.

Example Library

The Test tab contains an Examples section (collapsed by default) with 5 built-in demo levels:

Example	Difficulty	Key Concepts
Simple Room	Beginner	Solid brushes, floor
Corridor with Doorway	Beginner	Subtract operations, spatial planning
Jump Puzzle Platforms	Intermediate	Multiple brushes, player spawn entity
Hollowed Building	Intermediate	Hollow + subtract for windows
Simple Arena	Advanced	Multi-level, ramps, cover, multiple spawns

• Load replaces the current level with the example's brushes and entities. It asks first when the level is not empty, naming what will go, and the whole load is one undo step
• Study This shows numbered annotations explaining the design decisions
• Search/filter by title, description, tags, or difficulty level

The reference map

Each example above is about one feature, and the format they are stored in carries brushes and point entities only. None of them can show you a material, a UV, a tie, a wire, a visgroup or a navmesh, because the file they live in has nowhere to put one.

addons/hammerforge/data/reference_map.hflevel is a level with all of it in at once. Open it with Load .hflevel on the Test tab. It has two halls with the corridor's mouth cut through the inner wall of each, 119 brushes, 15 materials, UVs anchored to world space so the texture runs through the floor to wall join rather than stepping at it, a visgroup per wing, a button wired through a relay to a door, a spawn, and the bake options a shipped level uses. Bake it and you get a navmesh and occluders.

It is a reference rather than a lesson: nothing in it is annotated, and it is not a good level. It is there to answer "what is a finished one supposed to look like" and to give the numbers in Shipping a Level something real to describe.

Dock Layout (4 tabs)

The dock has 4 tabs with collapsible sections for organized access to all controls. Each collapsible section has a visual separator and indented content; collapsed state persists across sessions. A "No LevelRoot" banner appears at the top when no root node is found.

Mode Indicator

A colored banner between the toolbar and tabs always shows your current tool and gesture stage: - Draw (blue) -- "Step 1/2: Draw base — 64 x 32 x 48" / "Step 2/2: Set height — 64 x 96 x 48" (live dimensions update as you drag) - Select (green) - Extrude ▲ (green) / Extrude ▼ (red) -- "Extruding..." - Paint (orange)

When typing numeric input during a gesture, the value appears in brackets (e.g. "[64]"). A base typed as width, depth and height shows each one, with the value being typed in brackets (see Typed sizes under Brush Creation).

Sizes print as many decimal places as the grid step needs, so a 0.25 step reads "0.25 x 2 x 1", with at least two places for a size off the grid. The same size follows the cursor through both stages of a Draw drag, just below and to the right of the pointer, with a typed number in brackets; an Extrude shows its depth there ("Depth 1.5"). It goes when the brush is placed or the drag is cancelled, and is drawn over the viewport, never put in the scene. Turn it off with Size at cursor in Test → Settings or the Console's Viewport group.

Toolbar

The primary toolbar keeps the everyday path visible: Draw, Select, Paint, More, and Help. Operation and advanced geometry commands live in Build sections, the context toolbar, or More. Help opens the guide and shortcut discovery; Shift+?, F1, or Ctrl+K opens the command palette.

Build tab

• Tools: Draw and Select are always available in the primary toolbar. Use More, contextual actions, or the sections below for advanced operations.
• Shape: choose from 15 built-in shapes with recognizable icons (plus Custom). Sides appears for a pyramid, and for a cylinder, cone, sphere, ellipsoid, capsule or torus, where it is how many segments go round: 16 to start with, 5 at least, up to 64. More is smoother and costs faces, a sphere being 128 faces at 16 and 2,048 at 64. A pyramid and the round shapes each keep their own number. The Inspector's Sides on a placed round brush stops at 5 too, and a cylinder from an older level that stored 4 shows the 16 it has (#1103). A drawn brush is inscribed in the box you dragged. For a box that is the box itself; for a cylinder, cone, capsule or sphere the smaller side of the base rectangle is the diameter and the footprint is centred on the rectangle, so the brush always ends up inside the ground you dragged over. A sphere is uniform in all three axes, so its height stage takes part in the diameter rather than setting a separate height. Use Ellipsoid when you want three independent axes.
• Size X/Y/Z: defaults for new brushes, in metres. A new level starts at 2 x 2 x 2.
• Repeat Last Brush (Shift+D, or Repeat in the context toolbar's Draw section, which names the brush, such as "Cyl 2 x 3 x 2"): a stamp of the brush the last Draw made, with its shape, size, Sides, Solid or Cutout and material. A ghost follows the cursor, standing on the face or the grid under it where a Draw would start, and each left click places a copy as one undo step and stays armed, so a row of pillars is a row of clicks. On a turned grid the copy and its ghost turn with the grid, as a draw there does, so a copy whose sides are an even number of steps has its corners on the grid's points (#1923). Esc, a right click or another tool lets go. Before the first Draw the button is disabled.
• Kept between sessions: Shape and each kind's Sides, Solid or Cutout, the snap toggles, Hollow's wall and the Bevel and Face Inset boxes come back as you last left them, and so do the Structure section's type and each type's own settings and every tool's Tool Settings. They are kept with your preferences, not in the level. Reset Tool Settings in the Test tab's Settings puts them all back to their defaults. A value edited out of range in user://hammerforge_prefs.json comes back at the nearer end, with a warning naming the file and the key.
• Grid Snap: snap increment in metres, with quick preset buttons (0.1, 0.25, 0.5, 1, 2, 4, 8). A new level starts at 0.5.
• Grid Up / Grid Down: move the drawing plane one snap step along its current axis (Alt+PageUp / Alt+PageDown). A manual position stays put while drawing. Reset Grid (Alt+Home) returns it to the LevelRoot origin, flat and square to the world. Without a manual position, a completed draw keeps the grid on that brush's base plane; loading or undoing brushes does not move it.
• Align Grid to Selection (Alt+End): selected vertices use their average on the current axis. Otherwise a selected face chooses the dominant axis of its world normal and a plane through its center; an angled face does not tilt the grid. A brush selection uses the top of its world bounds. Nothing selected resets the grid. Face and vertex context toolbars offer the same command. These are view controls and add no undo step; the held plane is not saved with the level.

• A turned grid (#1893), for a part of a level set at an angle: a wing off a courtyard, a corridor that bends, a building at an angle to the street. The floor grid turns about up, and everything that snaps to it uses the turn: a draw's corners, the resize handles, vertex and edge drags, Snap to Grid and the arrow key nudges, which move along the turned grid's sides. A draw on the turned floor grid, or on a floor, builds a box square to it, so its corners land on its points. Set the turn three ways. Align Grid to Selection with one edge picked in Vertex mode turns the grid so its lines run along that edge, through its end, on the floor even when the grid was on a wall. With a brush selected, or a face of one on a floor, it takes that brush's turn about up, its lines along the brush's sides. The Angle field beside the grid size takes a typed angle. A square grid looks the same every quarter turn, so the angle is kept between -45 and 45: 60 reads as -30. While the grid is turned the HUD's grid label gives the angle, as Grid: 0.5 @ 30°. Reset Grid goes back to the world's grid. Heights stay whole steps from the level's origin. A wall grid, on X or Z, and an axis lock stay square to the world. Like the held plane, the turn is editor state and is not saved with the level. A held plane answers only where the cursor meets no surface: a draw that starts on a brush face or a collision surface starts on that surface.

• Snap Modes: G (Grid), V (Vertex), C (Center), E (Edge midpoint), and P (Perpendicular projection). Toggle independently; the closest eligible geometry candidate within the threshold beats grid snap.

• Draw on Face (the On Face button beside the Snap row, L, or the command palette): a draw that starts on a brush face builds on that face's plane instead of a flat one. See Brush Creation.
• Material: the Active Material, the whole-brush material every new brush is made with: a drawn brush, a Polygon brush, each piece of a Path and of a new structure, and a dropped preset. Paint mode puts it on a brush you click. An Extrude takes its source brush's material and a Cutout keeps the cut look. Clear sends new brushes back to the translucent default and leaves brushes already made as they are. It is saved with the scene, not in the .hflevel file, and a structure's Update keeps each piece's own material.
• Physics Layer: which collision layer the baked world goes on. Godot's own CharacterBody3D, RigidBody3D and every raycast default to mask 1, so Static World (Layer 1) is the one the player walks on and the other two entries produce a level the player falls through unless your game looks at that layer deliberately. The baked body's own mask is always 0: it never moves, so a mask buys it nothing and only widens the broadphase.
• Texture Lock: UV alignment preserved on move, resize, and rotate (enabled by default).
• Selection Info (above Selection Tools, whenever brushes, faces, vertices or edges are selected, in Vertex mode and Face Select too): one brush shows its centre and size, one face its centre, normal and area, one edge its length and midpoint, and several of anything their count and the centre and size of their bounds. A selection of more than one kind lists each with its count (Brushes 14, Cuts 2, Entities 3); click one to keep only that kind. One vertex shows X, Y and Z as fields: type a number and press Enter, or leave the field, and the vertex moves there as one undo step. The move is judged as a drag is when you let go, so a place that would leave the brush non-convex is refused, the field goes back and the reason shows. World / Local picks the space: Local is the brush's own space for a vertex, edge or face, and the parent's space for a brush, as the Inspector shows it. Several things in different spaces are shown in world space, and the section says so.
• Selection Tools (visible when brushes are selected, grouped by domain):
• Brush Modification: Hollow (wall thickness spinner + button, Ctrl+H) with yellow wireframe preview; Clip Selected (Shift+X) with cyan wireframe preview + orange split plane. Carve (Ctrl+Shift+R) with green wireframe preview. Merge (Ctrl+Shift+M) combining 2+ brushes.
• Positioning: Move to Floor (Ctrl+Shift+F) / Ceiling (Ctrl+Shift+C). Snap to Grid (Ctrl+B) moves each selected brush the least distance that puts the lowest corner of its world bounds on a grid point, and a selected entity's origin onto the nearest one. Size and rotation stay, so a brush sized in whole grid steps ends with every corner on the grid. A grid point is a whole number of grid snap steps from the world origin; a held drawing plane does not move them. One press is one undo step, a selection already on the grid adds none, and Texture Lock treats the move as it does a nudge. The context toolbar and the command palette offer it too.
• Transform: Step (degrees per press) and Pivot (Selection / World Origin / Active / Pick, a clicked vertex, edge midpoint or face centre). Rotate CCW (R) and CW (Shift+R) turn the selection about the locked axis, or Y when no axis lock is set. Flip (Shift+M) mirrors it across the locked axis, or X. The Mirror row ticks X, Y and Z, and Selection Edge, for Mirror Copy (Alt+M), which keeps the selection and adds mirrored copies beside it. Reset Rotation (Alt+R) clears a rotation without moving the geometry. Apply Rotation and Scale folds a rotation and scale into the brush's shape, so its size reads in metres and nothing moves.
• Bake: Cast Shadows (Level Default, On, Off, Double Sided, Shadows Only) and Lightmap Scale (0.125 to 8, default 1) for the selected brushes, set on all of them at once as one undo step. The dropdown shows nothing, and the scale says (mixed), when the selected brushes differ. Level Default leaves Cast Shadows to the brush's visgroups and then to Cast Shadows in Advanced Bake. Shadows Only casts shadows without being seen, for a blocker that shapes the light through a window; Off suits a sky shell or a far backdrop. Lightmap Scale multiplies the lightmap detail Lightmap UV2's Texel Size gives the brush: 4 is four times as fine, for a lit floor or a wall a window shadow falls on, 0.5 half, for a ceiling. A mesh casts shadows one way and has one lightmap density, so brushes that differ in either bake into meshes of their own and the rest still merge (#1444, #1438). Both are saved with the brush in the .hflevel and kept by undo, duplicate and the pieces of a Clip, Hollow, Carve, Intersect or Merge (#1660); .map export leaves them out.
• Entity Binding: Tie/Untie brush entity class (populated from entity definitions), with an optional name. The name is the address an I/O connection targets, so a door has to have one before anything can open it. Brushes tied in one go are one entity whether or not they are named, so a two-leaf door exports as one func_door rather than two that move independently; tying two doors separately keeps them separate. A field set in the Entity panel goes on every brush of the entity, and so does a wire, so a trigger of several brushes fires from whichever brush a body enters. Its wires go out once per event, not once per brush, and a trigger_once of several brushes fires once in all (#1129). That holds for a tie with no name as well (#1133), and a .map import gives such an entity back tied as one (#1134). Untie takes the brush's wires and properties with it, and tying a brush as another class keeps only what that class has.
• Clip brushes: tie a brush as func_clip for collision the player cannot see: a smooth slope over stairs or rubble, a barrier along a ledge, a fill over a jagged cliff. The bake makes the brush's convex hull into collision and draws nothing, and every clip on one physics layer shares one body, so twenty cost one node; a named clip keeps a body of its own. Its Physics Layer in the Entity panel is the layer it goes on, 1 to 32. 0, the default, is the level's Physics Layer, so a player meets it wherever it meets the world; a game that wants bullets to pass through puts it on a layer only its player collides with. The editor draws it violet whatever material its faces carry. It takes no part in the world's CSG, so a cut never carves it. It does cut the baked navmesh, since an agent's body meets it as the player's does, and Validate's stairs, ramp and doorway checks leave it out (#1409).
• Physics props and see-through geometry: tie a brush as func_physbox for something the player can push or knock over, a crate, a barrel, a plank across a gap. It bakes as a RigidBody3D holding its mesh and a convex CollisionShape3D, so they move together; brushes tied under one name are one body. Mass (10 kg by default), Start Asleep and Physics Layer (0 for the level's) are in the Entity panel. Its mesh is dynamic for GI and it stays out of the baked navmesh, since it moves. In Quick Play the player shoves one it walks into. Tie a brush as func_illusionary for something seen and walked through, hanging cloth, a bead curtain, cobwebs or a light shaft: it bakes its mesh, with its own Cast Shadows and Lightmap Scale, and no collision, and stays out of the navmesh. Both keep Hammer's names, so a .map export and import keeps them and their properties (#1892).
• Duplicate Array: Layout (Linear / Radial / Grid), count, X/Y/Z offset, and the controls for the chosen layout — axis, step degrees and a Fill 360 helper for Radial; per-axis cell counts for Grid, which uses the X/Y/Z offset as its spacing. A live wireframe of the copies and a line saying how many. Create/Remove Array buttons; selecting any piece of an existing array turns Create into Update Array and shows Detach beside it.
• Bulk delete: deleting 3+ brushes shows a confirmation dialog (undo reminder). Single/dual deletes remain instant.

Paint tab (collapsible sections)

• Floor Paint: Brush, Erase, Rect, Line, Bucket, Blend tools; shape, radius, and layer picker; default-off inference and X/Z mirror toggles; Raise, Room, and Connector actions. The dock is optional for the first room: Shift+P, R, then LMB-drag in the viewport.
• Heightmap: Import PNG/EXR or Generate procedural noise. Height Scale and Layer Y spinboxes. Sculpt tools: Raise, Lower, Smooth, Flatten buttons with strength/radius/falloff spinboxes for interactive terrain editing. Convert Selection → Heightmap button rasterizes selected brush top faces into a new heightmap layer (inherits grid origin/basis and chunk_size from the paint layer manager).
• Blend & Terrain: Blend Strength, Blend Slot (B/C/D), and Terrain Slot A-D texture pickers with UV scales.
• Foliage & Scatter: Interactive scatter brush for foliage and object placement. Pick a mesh resource or a scene — a .glb or .gltf from an artist imports as a scene, and the first mesh inside it is what gets scattered — then set density/radius/height constraints/slope filter/scale variation. Choose Circle or Spline brush shape. Preview generates a MultiMesh preview (Dots/Wireframe/Full). Scatter commits as a permanent MultiMeshInstance3D, in one undo step, owned by the scene so a save keeps it. Clear removes the preview. A stroke asking for more than 50,000 instances is refused with the count, so wind the radius or the density down rather than waiting for it. Spline mode uses selected nodes as path control points with a configurable width band.
• Regions: Region Streaming enable, Region Size, Stream Radius, Show Region Grid, memory stats.
• Materials: Visual thumbnail browser (HFMaterialBrowser) with search, pattern/color filters, a Prototypes/Palette/Favorites view toggle, and the count the grid shows in the section header. Add/Add Texture Folder/Remove/Refresh Prototypes/Remove Unused/Replace.../Clear buttons under Material Library, closed by default. Face Select Mode toggle, with X-ray beside it for a face marquee that takes covered and back faces. Assign to Selected Faces. Right-click thumbnails for context menu (Apply to Faces, Apply to Whole Brush, Set as Active Material, Replace Material, Toggle Favorite, Copy Name). Set as Active Material makes that material the Build tab's Active Material, the one Paint Mode puts on a clicked brush. Favorites are kept in user://hammerforge_prefs.json by resource path, so they survive a dock rebuild and an editor restart; a material built in the session and not saved to disk has no path and cannot be starred, and the status line says so. The first nine favorites carry their number in the Favorites view, the number Alt applies them with. A favorite whose file is gone shows there as "!" with its old path in the tooltip, and right-clicking it offers Remove Favorite. In the Palette view an empty slot shows as "!" where it stands, since faces keep using its index. A Recent row above the grid holds the last eight materials applied to faces or brushes by any route (the Apply button, a double-click, a drop, a Paint Mode click, a favorite, Apply Last Texture, Apply Picked Look, the agent bridge), newest first and each once, kept beside the favorites so it survives a restart. A material with no path is left out. Clicking one selects it; one this level's palette does not hold is added to it first, as one undo step. Hover a thumbnail to preview on selected faces. Drag a thumbnail, or a material file (.tres, .material) from Godot's FileSystem dock, onto a brush face in the viewport to paint that face; dropped on a face that is in the face selection, it paints every selected face. In a split layout each viewport takes a drop through its own camera, and the overlays (the context toolbar, the palette, the coach marks) go to the viewport you click in (#1627). A file the palette already holds reuses its slot, and one it does not is added, in the same undo step as the paint. An image goes on as the material of its set, made as Add Texture Folder makes it (see Texture Folders); a scene, a mesh or a sound is left to Godot's own drop. Press T for Texture Picker (eyedropper). The Refresh Prototypes button batch-loads 150 built-in SVG textures (15 patterns x 10 colors) for quick greyboxing.
• Face Tools: the tools that act on the faces Face Select picked, each in a section of its own.
• UV Editor: Per-face UV editing with drag handles over the face's texture, UV Snap, Reset Projected UVs, Scale with x2, /2 and a U/V link, Flip U, Flip V and Rotate 90, a Smoothing group, and a Justify grid (Fit, Fit U, Fit V, Center, Left, Right, Top, Bottom), Align to Face and Align to World, Link, Unlink and Select Group, and Wrap. Justify moves a layout dragged out by hand rather than resetting it, so the UV editor and the Justify buttons compose. Texture Gizmo (also Giz in the context toolbar's UV group) puts a gizmo at the middle of the faces Face Select picked, its axes along the texture's U and V: drag the middle square to slide the texture a grid step at a time along the face, an axis end to stretch it along that axis in eighths (Shift stretches both), and the ring to turn it by Selection Tools > Step. The slide and the stretch snap as any drag does: Grid (G) decides, and holding Ctrl turns it the other way. Holding Ctrl lets the ring turn freely. Every picked face takes the same change on its own U and V, and a layout dragged by hand moves with it. One drag is one undo step, and right click or Escape puts the texture back.
• Displacement: Create, Destroy, Power, Elevation, Sew, and the sculpt brush. See Displacement Surfaces.
• Face Inset: Inset and Height for Inset Face. See Face Inset.
• Surface Paint: Paint Target (Floor/Surface), layers, texture picker, radius/strength.

Objects tab

• Create DraftEntity button.
• Entity palette with drag-and-drop placement. A class with presets gets a button for each one beside its own, such as Point Light: Warm Ceiling, which places the light with that preset's values.
• Selected DraftEntity nodes use the same managed Delete, Ctrl+D Duplicate, arrow-key X/Z nudge, and PageUp/PageDown Y nudge workflow as brushes, including HammerForge undo/state cleanup.
• Entity Properties (collapsible, context-hidden): auto-generated typed controls based on entity definition. Visible when a point entity is selected, and when a brush tied to an entity class is — a func_door's Speed, Wait and Angle are set here, and so are a func_button's Wait and Locked. A brush entity's values are stored with the brush and survive a .hflevel save and a .map round trip. Select several entities, point entities and tied brushes alike, and the panel edits them together: it lists every property any of them has, one only some have says how many, as Angle (3 of 12), and one whose values differ shows a dash. A value typed goes on each selected entity that has the property, as one undo step, so twelve lights take one Energy at once. The Entity I/O and wiring sections stay one entity's, the first selected, and the panel says which (#1729). A value still at its class default reads lighter than one set on purpose, which has a Reset beside it that puts the default back. Reset to Default under the properties puts every one back, and Write Defaults gives each selected entity the default of any property its class has and it does not hold yet, such as one a definition file gained since, leaving set values alone. Each edit is an undo step, and typing in one field makes one step rather than one per key. A class with presets starts the panel with a Preset list: picking one sets every value it names as one undo step. Lights come with Warm Ceiling, Cool Fluorescent and Practical, and the directional light with Sun. A property that names a file, such as an ambient_sound's Stream or a light's Projector, has a ... button beside it that picks one, and a sound has a Play button that plays it in the editor. Press Play again to stop it; it also stops when the selection changes.
• Entity I/O (collapsible, context-hidden): Output, Target, Input, Parameter fields. Delay (seconds) and Fire Once checkbox. Add Output button. The list of an entity’s connections, and the Remove that acts on it, live once, on the I/O Wiring panel below. An output needs a name, a target and an input — blank is refused rather than added as a connection that does nothing — and the delay has to be zero seconds or more. Only visible when an entity is selected; connections auto-refresh on selection change. Show I/O Lines checkbox to visualize connections in the viewport. Wires beside it chooses which (#1730): All wires; Chain from selection, every wire reachable from the selected entities, following outputs to their targets and inputs back to their sources as far as they go, drawn from bright yellow at the selection's own wires to faded blue five hops out, so the order of a sequence reads; or Selection only, the wires that start or end at a selected entity. A loop of wires is walked once. Cycle I/O Wires in the command palette steps through none, all, chain and selection only, and can be given a key. The choice is kept in your preferences, not in the level.
• I/O Wiring (collapsible, context-hidden, collapsed by default): the entity’s current outputs with a Remove Output button beside them, and a quick-wire form (output name, target dropdown, input name, parameter, delay, fire-once). The target dropdown lists a named brush entity once by its name, and a brush entity with no name by each of its brushes' node names, any of which reaches the whole entity. Only visible when an entity is selected. Connection summary shows triggers and triggered-by counts. Highlight toggle button pulses all linked entities in the viewport. Connection Presets picker with 4 built-in patterns (Door+Light+Sound, Button→Toggle, Alarm Sequence, Timer Lights), written in the names the shipped classes raise and answer, plus user-saved presets, with Save and Delete beside it. Target tag mapping lets you assign preset target placeholders to actual entity names; a tag you leave empty is skipped and named in the status line rather than wired at an entity called after the tag. A saved preset whose name is already in the list gets a number, so two rows never read the same.

Progressive disclosure: During greyboxing, the Objects tab shows only the entity palette and create button. Entity Properties, Entity I/O, and I/O Wiring sections appear automatically when you select an entity, keeping the UI clean when you're focused on shapes and layout. - I/O connection lines: Bézier curves with arrowheads, color-coded by output type (cyan=OnTrigger, red=OnDamage, yellow=OnUse, green=OnOpen, magenta=OnBreak, orange=OnTimer). Fire-once connections pulse brighter; delayed connections dim proportionally. Parallel connections between the same pair offset laterally. An output aimed at a name no entity answers to is drawn as a short red mast with a cross on top, rising from the source entity — deliberately not an arrow, because there is no destination to point at. - Highlight Connected: when enabled, all entities wired to the selected entity display a pulsing overlay. The context toolbar shows an "HL" toggle and an I/O summary label ("Triggers 2 targets (door1, light1)"). The highlight state stays in sync between the context toolbar and the wiring panel.

I/O Runtime Signal Translation

Entity I/O connections are automatically translated into live Godot signals when you bake or export a playtest scene. No manual signal wiring is required.

How it works: An HFIODispatcher node is injected into the exported/baked scene. On _ready(), it scans all entities for entity_io_outputs metadata and builds a connection table. When a source entity fires an output, the dispatcher delivers to each target via: 0. The engine method the target's own class granted for that input name 1. Direct method call (e.g. Open(), Kill()) 2. Snake-case variant (e.g. turn_on() for TurnOn) 3. Generic handler (_on_io_input(input_name, parameter)) 4. User signal (io_Open emitted on the target)

A wire with no delay is delivered at once, inside the output that raised it, so a chain of them runs in one frame in the order it was wired. A chain that comes back round to where it started, such as two relays wired to each other, is stopped after 64 hops and named once in a warning, rather than running until the game freezes (#1218). Give one wire in the loop a delay if it is meant to repeat. io_fired and io_received go out once per delivery, however many nodes the target baked into.

Only methods the target's own script defines are called at steps 1 and 2. An input whose name resolves to an engine method -- QueueFree, Free, Hide, SetScript and anything else on Node or Object, before or after the snake-case conversion -- is not called, and falls through to the generic handler and the user signal instead, with a warning naming the input and the target. Handle those deliberately in _on_io_input if your game wants them.

Step 0 is how a shipped class says it means one of those on purpose. An entity definition may carry input_methods naming the engine method behind an input, the same way a property carries maps_to naming the engine property behind it:

"logic_timer": {
  "class": "Timer",
  "input_methods": { "Start": "start", "Stop": "stop" }
}

The grant is per class, so it never widens what a free-text input name can reach. A granted method is called in the shape the engine declares: one that can take no argument is called with none when the connection carries no parameter, and a parameter that is there is converted to the type the argument declares. Start with 2.5 in the parameter field is a two and a half second timer.

A door that moves: a func_door or door_basic bakes into a holder of its own, carrying the mesh and the collision together, with a script that reads the class's speed, wait and angle. Open slides it its own extent along the angle at speed metres a second, wait seconds after it gets there it closes itself (zero or less means it stays open), Close puts it back and Toggle does whichever is next. The angle is the one TrenchBroom and the Quake family use, seen from above: 0 is +X, 90 is -Z (north in a .map), 180 is -X and 270 is +Z, so a door opens the same way on both sides of a .map round trip. -1 lifts the door by its height and -2 lowers it, for a portcullis or a lift gate. HammerForge's Rotate and Flip turn a door's angle with its brushes (#1210), and so does any other turn about the vertical: Godot's own rotate gizmo or Inspector and their undo, Reset Rotation, or the Agent Bridge's hf_transform_brush (#1256). Lock and Unlock decide whether Open is listened to. It raises OnOpen and OnClose as it goes, so a door can drive a light or a sound. A door of several leaves raises OnOpen as its first leaf opens and OnClose as its last one shuts, whichever leaf holds the wire. Brushes tied under one name are one door, and every leaf slides the whole door's extent, as a Quake door of several brushes does, so two leaves side by side across a doorway clear it sliding the same way (#1217). A double door that parts in the middle is two doors: tie each leaf under a name of its own, give them opposite angles, such as 90 and 270, and wire the trigger or button to both. A wire aimed at one leaf, by the door's name or by a leaf's node name, reaches the whole door, and the same goes for one brush of a trigger or a wall.

Enable and Disable on a brush entity: a baked func_wall, trigger_once or trigger_multiple answers Enable and Disable itself, since the bake built the node and there is no script on it. Disable hides a wall and takes its collision out, or stops a trigger detecting bodies. Enable puts it back. The io_Enable and io_Disable user signals still go out as well. A func_wall has to be named for a connection to reach it.

A relay and a light: a logic_relay answers Trigger by raising its own OnTrigger, so one wire into it drives every wire out of it, each with its own parameter. With Fire Once ticked it passes the first Trigger and no other. light_point, light_spot and light_directional answer TurnOn, TurnOff and Toggle by showing and hiding the light. Their user signals still go out, so a game that wants a fade can listen for them (#1209). Untick a light's Start On Load for one that starts dark and waits for its TurnOn (#1258). The viewport draws its marker the same either way.

What raises an output: a trigger volume raises its own. A baked trigger_once or trigger_multiple fires OnStartTouch when a body enters it and OnEndTouch when one leaves, with no help from the game -- a body entering is the whole event. trigger_once fires the first time and then stops. trigger_multiple fires OnStartTouch again only once its Retrigger Delay (wait) has passed since it last fired: zero is every time and below zero is once. Leaving is not held back. A logic_timer raises its own too: OnTimer fires each time the Timer it exports as times out. It starts when the level loads. Untick its Start On Load for a timer that should wait for its Start input. Test Level builds the Timer too, and the lights and sounds, the same as the two exports (#840). A class says which engine signal raises which output with output_signals, the counterpart of input_methods: "output_signals": { "timeout": "OnTimer" }.

Everything else is the game's to raise, because it depends on something the game decides. Pressing is the clearest case: the playtest player rays from the camera on its Use key (E), and when it finds a func_button it calls HFIORuntime.press_button_on(node), which hands it to press_button() on the dispatcher of the button's own level. That fires OnPressed unless the button is locked or still inside its Reset Delay (wait) since it last fired. A game with its own player does the same thing in its own interact code. A button answers Lock and Unlock itself, and a Press input presses it through the same lock and wait. A trigger's, a button's and a door's wait, and a wire's delay, are game time: Engine.time_scale stretches them and a pause holds them (#1136, #1140). The dispatcher connects a trigger's signals at runtime only -- a regular editor bake attaches a dispatcher too, and a volume that ran the graph because a mapper dragged a brush through it is not wanted.

At steps 1 and 2 the call shape comes from the handler rather than from whether a parameter was typed. A handler declared func Open() is called with no argument even when the connection carries a parameter, and func Open(parameter: String) is called with the empty string when the connection carries none. A handler needing two or more arguments cannot be satisfied from one parameter field, so it is skipped with a warning and the input falls through to the generic handler and the user signal.

Firing outputs from game scripts:

# From any entity script at runtime:
HFIORuntime.fire_on(self, "OnTrigger")

# Or via the dispatcher directly:
var dispatcher = $HFIODispatcher
dispatcher.fire("my_button", "OnPressed", "fast")

Configuration: - Export Playtest: always auto-injects the dispatcher when entities have I/O connections. - Bake Wire I/O: on by default. Regular bakes and Test Level attach HFIORuntime when any entity has I/O connections. Uncheck bake_wire_io on LevelRoot (Inspector) to skip dispatcher attach. - Source entities receive io_<OutputName> user signals (e.g. io_OnTrigger) so you can also use standard connect() / emit_signal() patterns.

Test tab (collapsible sections)

• Test Level: Test Level (Bake + Play) is the one-click default. Check Only validates without baking and Bake Only produces geometry without launching. Play from Camera and Play Selected Area remain available for focused testing.
• Advanced Bake: Bake Selected/Changed, dry run, mesh, LOD, lightmap, navmesh, face material, preview, collision, chunking, occluder, and connector controls are collapsed until needed.
• Actions: Create Starter, Create Empty/Create Floor, Apply/Clear/Commit/Restore Cuts, and Clear Brushes.
• Spawn: Validate Spawn (bakes, then runs physics-based checks and shows debug overlay), Create Default Spawn (auto-places a player_start over the middle of the level, on the top of the floor there, at the height Validate Spawn checks for: 0.1 for the feet plus the height_offset default of one metre. Under a ceiling too low for that, such as a standard 3 metre room, it takes the most height offset that still leaves the player room, written into its own Height Offset, rather than going out onto the roof), Preview Spawn Debug (bakes, then shows persistent capsule/ray overlay toggle).
• File: Save/Load .hflevel, Compare With... (what changed since another .hflevel; see Compare), Import/Export .map (Classic Quake / Valve 220), Export .glb, and Export Plan.... A .map or .glb export, and a prefab saved from the selection, says in the Console what it left out, such as "left out 2 cordons, paint on 14 faces"; What Each Format Keeps is the whole table (#1706). Export Plan... which writes a top down plan of the level as an .svg and a .png beside it: solid brushes filled, cut brushes hatched, entities by kind, I/O wires (a brush entity's from the middle of its brushes, once), cordons dashed, a scale bar and an arrow to -Z the same share of the picture on any size of level, drawn from the brushes so it needs no window (#1705). For one floor of several, or for CI, godot --headless -s res://tools/export_plan.gd --path . -- level.hflevel plans/upper --y-min=3 --y-max=6 writes the same plan for a height band; a brush that only touches the band, as the walls below end on the floor above, is left out of it.
• Presets: Save/rename presets grid. Presets are saved in res://hammerforge_presets/, so replacing the addon folder on an upgrade keeps them.
• History: Undo history browser with thumbnails, color-coded action icons, double-click navigation, undo/redo buttons.
• Settings: Show HUD, Motion, Size at cursor, Draw hover preview, Show agent changes, Show selection size, Show Grid, Grid follows cursor, Debug Logs, Autosave path/toggle, Settings Export/Import, Reset Tool Settings. Cursor following slides along the current drawing plane and keeps an aligned height exact. Show selection size (also Alt+D and the command palette, off by default) labels the width, depth and height of the selection's world bounds in the viewport, coloured by axis: width along the bottom front edge, depth along the bottom side edge, height up the corner between them. A face selection labels the bounds of its faces. The labels follow a nudge, a resize handle or gizmo drag as it goes, a vertex drag, an Extrude and an undo; they are view state and never saved. Both switches are kept with your preferences, not in the level. Under the Colours heading at the end of Settings, a colour button sets each overlay colour: Selected brush (the outline of a selected brush or entity, drawn faintly round the rest), Selected face (the tint on faces picked in Face Select), Hover (the outline of the brush under the cursor, and a hovered vertex or edge), Vertex handle and Selected vertex (edges draw the handle colour at half strength), Solid brush and Cut brush (the see-through look of a solid or a cut with no material, and a cut's outline), Cordon wireframe (fainter for a cordon switched off), Extrude up and Extrude down (the hovered face and the ghost while extruding), Draw preview (the solid being drawn), Pending cut (a cut waiting for Apply, and a cut being drawn) (#1680), the brush entity looks: func_detail, trigger_*, func_wall, func_clip and Other brush entity (#1760), Agent change (the outline round what an agent just changed over the bridge, which Show agent changes turns off) (#1653), the three Compare colours, and Face Direction: front and Face Direction: back (the two sides of every face while Show Face Direction is on) (#1869). A change shows in the viewport at once, on what is already drawn. High Contrast sets all twenty three to colours that stay apart for the common kinds of colour blindness, with solids and cuts told apart by brightness as well as hue and no brush entity drawn blue under the blue selection, and Reset puts the defaults back. The colours are kept with your preferences, not in the level, and never reach a bake.
• Accessibility (#1703): Motion under Settings is Follow system, Animate or Reduce. Follow system does what the system's own setting for less motion asks. With motion reduced, toasts, the HUD's hints, the context toolbar's hint bar and the outline round an agent's change appear and go at once, with no slide or fade, and stay as long as before. When the system asks for more contrast and you have not picked any overlay colour, the colours start in High Contrast, and the Console says so once; picking a colour takes you off it. When the system asks for less transparency, the see-through fills (a solid or a cut with no material, the tint before a draw, the selected faces) draw more opaque. Every button in the dock is in reach of Tab, and a click on one hands the keys straight back to the viewport, so its shortcuts still work. A screen reader hears every control by name: an icon only button by its tooltip, a field by the label beside it, the radial menu with its items and the one under the pointer, a status lamp with its state, and the UV editor. Toasts are read out, a refusal at once and anything else when the reader is free.
• Performance: Health summary (green Healthy, yellow Edits Slowing above 100 brushes and entities, red Edits Pause above 1,000; the pause after an edit is what grows with the count, #1622), brush count ProgressBar, entity count, vertex estimate, paint memory, chunk count, last bake time from pressing Bake to the result, waits included (#1623), recommended chunk size.
• Visgroups & Groups: Visgroup list with [V]/[H] toggle, New/Add Sel/Rem Sel/Rename/Delete, Cast Shadows for the highlighted visgroup, Group Sel/Ungroup, and the Groups list with Rename, Open, Add Sel and Rem Sel.
• Cordon: Enable checkbox, cordon list with Remove, a Bake checkbox and a name for the chosen cordon, min/max spinboxes for it, Set from Selection, Add from Selection.
• Prefabs: Save/search/filter/delete prefabs. Browse with tag filtering and variant indicators. Drag-from the library to instantiate. Save Linked for live propagation. Right-click for variant/tag editing.
• Agent Bridge: Allow agent connections (MCP), a lamp, what the bridge is doing, and what the agent last did. See Agent Bridge (MCP).

Test Level and Spawn Validation

Test Level (Bake + Play) bakes the level and launches it with a first-person controller. It lights the level as Export Playtest Build does: when nothing in the scene sets an environment it adds the flat grey one, and when nothing lights it, a fallback sun. Before every test:

1. Spawn lookup: finds the active player_start entity (primary-flagged first, then first found).
2. Auto-create: if no player_start exists, a default is created over the middle of the level, standing on the top of the floor under it, at the height the validation below checks for. When something stands at the middle, such as a pillar or a crate, the spawn moves out a grid step at a time to the nearest place over a floor with room for the player. In a room cut out of a block, the floor is the bottom of the cut, not the block's roof.
3. Validation: physics-based checks (floor raycast, capsule collision, headroom, below-map), and a check that the spawn is not inside a brush, read from the brushes' own faces and the cutters that carve them. The floor is the higher of what the ray hits and the brush floor under the spawn, so a floor built from brushes counts before the first bake. Issues appear as toasts and optional debug overlays.
4. Fix dialog: critical issues (severity ≥ 2: inside geometry, floating in void) show a dialog offering "Fix & Play" or "Cancel". Fix & Play snaps the spawn to the floor under it, or for a spawn inside a brush moves it sideways along its floor to the nearest clear place. With nowhere to move it, the button reads "Play Anyway". Severity 1 warnings toast and proceed.
5. Launch: bakes geometry + collision, then runs the scene with the FPS controller spawned at the validated position, facing the spawn's angle. The angle turns with the spawn however it is turned: Rotate, Godot's gizmo or the Inspector (#1285). The running level swaps each entity marker for the node its class names, so a light lights and a logic_timer fires.

Play from Camera

Click Play from Camera in the Test tab to playtest from your current editor camera position: - The spawn entity is temporarily moved to the camera position; camera yaw is written to entity_data["angle"]. - The level bakes, spawn is validated, and the playtest launches. - The spawn is put back to its original position and angle before the launch, because Godot saves the scene on the way into a run. The run gets the camera pose from the launch request instead. - On validation failure (severity ≥ 2), the spawn is restored before showing the fix dialog. There, Fix & Play starts the run at the clear spot the check found beside the camera, and Play Anyway starts it at the camera. Neither moves the spawn. - The temporary move is not recorded in undo history.

Play Selected Area

Click Play Selected Area to bake and playtest only the region around your current brush selection: - The current cordon state (enabled, every cordon with its name and Bake switch) is saved. - A temporary cordon is set from the AABB of the selected brushes and switched on. Any other cordons are set aside, so the bake takes the selection alone. - The level bakes within that cordon, spawn is validated, and the playtest launches. - The original cordon state is restored (enabled/disabled, every original cordon with its name and switch) before the launch, so the saved scene keeps it. The run bakes the selected area from the launch request. - On validation failure (severity ≥ 2), the cordon is restored before showing the fix dialog. Fix & Play and Play Anyway still play the selected area alone.

Export Game Scene

Click Export Game Scene in Test → Advanced Bake to write the level as a scene a game loads. It bakes the whole level, with any cordon set aside for that bake and back on afterwards, then saves a .tscn beside the level's own scene, named after it. The contents are the same geometry, the starter's floor when the level has one, and the same real entity nodes as a playtest export — a light_point as an OmniLight3D, a logic_timer as a Timer — with no playtest player, no fallback sun and no debug environment. That is the difference between the two buttons, and the player is the one that matters: two character controllers in one scene is a bug in the game.

A sky, fog or ambient light you set up with a WorldEnvironment in the level stays out of the game scene, because a game usually owns its environment. Tick Include Level Environment under the button to take it along.

The Export with list under the button picks the bake profile the export bakes on. It starts on Shipping; Level's own options bakes on whatever the level is set to. Afterwards the level's own options come back, with no undo step, so editing carries on as it was. While it bakes, the Profile list and the options a profile sets do not change; change them when the export finishes. An option you set from the Inspector while it bakes is kept rather than put back, and the toast names it. When it is done, the toast names the profile the scene was baked with. On Editing it is a warning, because unmerged meshes and no LODs are right while a level changes and wrong in a game: pick Shipping under Export with and export again.

See Shipping a Level for the bake options a shipped level wants and how to get lighting baked into it.

Export Playtest Build

Click Export Playtest Build in Test → Advanced Bake to create a standalone playable scene: - If no spawn exists, auto-creates a default (fully undoable with state capture). - Bakes the level in Full mode. - Validates the spawn on the baked level, as Test Level does: severity ≥ 2 shows the fix dialog, where Fix & Play or Play Anyway goes on to export and launch, and severity 1 warns and carries on. - Packs baked geometry, brush entities, point entities, DefaultSun and the starter's TempFloor (if present), and fallback lighting (a DirectionalLight3D if no light exists) into a temporary scene at user://hammerforge_playtest.tscn. The environment is the level's own WorldEnvironment when you added one to the level, and a flat grey one when you did not. - Adds the playtest player controller at the active spawn and applies the spawn's yaw. It walks on WASD, jumps on Space, and presses a func_button with E when the reticle is on one within 2.5 units. - Preserves world transforms while reparenting export content and recursively owns nested geometry/collision so it survives scene packing. - Injects the entity I/O runtime automatically when the exported content contains connections. - Initializes only the runtime level core in the exported scene. Grid, drawing, snapping, selection, previews, prefab authoring, validation, undo, and other editor services are not loaded or constructed by export templates. - Launches the scene via EditorInterface.play_custom_scene(). - A toast confirms "Playtest launched" on success.

Incremental Bake

For iteration on large levels. Both can end up rebuilding the whole level, as below; Performance and Limits has measured bake times by brush count. - Bake Selected: bakes only the currently selected brushes and merges the output into the existing baked container. Geometry baked from other brushes is preserved, and an earlier Bake Selected of the same brushes is replaced rather than doubled. A full Bake merges brushes into one mesh that cannot lose one of them, so Bake Selected on a brush the last full Bake holds bakes the whole level instead and says so. - Bake Changed: bakes when brushes or painted ground have been modified (dirty-tagged) since the last successful bake, and says there is nothing to do when none have. When it bakes, it rebuilds the whole level, so it takes as long as Bake. With Navmesh on, a prop_static moved, added, deleted or given another Scene is a change too, so the navmesh is cut where the prop is now. A paint connector confirmed with Enter, or taken back by Undo, is a change as well. Dirty tags survive failed bakes and accumulate until the next success.

A bake runs over several frames. Switch to another scene tab before it finishes and it stops with a message, keeping its dirty tags; bake again once you are back. Close the tab and it stops quietly (#1290).

Bake Preview Modes

Use the Preview Mode dropdown in Test → Advanced Bake to choose how baked geometry renders: - Full: standard material rendering (default). - Wireframe: cyan wireframe overlay using a custom shader — useful for inspecting geometry topology. - Proxy: semi-transparent grey unshaded material — ultra-fast rendering for layout testing.

Quick Wireframe Preview: When brushes are selected, the context toolbar shows a Bake▷ toggle button. Click it to instantly bake with wireframe preview — you can see the final mesh topology before committing to a full bake. Click again to re-bake at full quality. This toggle: - Is fully undoable (Ctrl+Z reverts both the bake and the toggle state). - Stays in sync with the dock's Preview Mode dropdown — if you bake from the dock with Wireframe mode, the toolbar toggle reflects that. - Is disabled while a bake is in progress to prevent overlapping operations.

Bake Options

The Test → Advanced Bake section exposes additional controls: - Profile (list, with a name box, Save and Delete under it): sets the bake options below in one step, and says which profile the level is on. - Editing turns Merge Meshes and Generate LODs off, for a fast bake while you build. Shipping turns them on, for a fast frame in the game. Both leave every other option alone: Lightmap UV2, Navmesh, Occluders and Chunk Size depend on the game and the level (see Shipping a Level). - Your own. Type a name and press Save to keep every option below under it, Navmesh agent sizes and collision mode included. Saving under a name you already used replaces it. Profiles are kept in your preferences, so every level in the project can use them. Editing, Shipping and Custom cannot be taken as names. - The team's. Tick Project before Save to keep the profile in hammerforge_presets/bake_profiles.json, beside the brush presets, instead. Commit that file and everyone on the project has the profile after their next pull, marked (project) in the list. When the project and your preferences both have a profile of the same name, the project's is the one listed, so Save will not write a copy of a project profile into your preferences. Delete removes a project profile from the file, which is a change to commit like any other. A value in the file this version cannot use is left out with a warning, and left in the file for anyone whose version can. A number past what its setting takes is held to the nearest it can take, with a warning, so the profile stays picked once you pick it. A file that does not read, such as one a merge left conflict markers in, is left alone: Save and Delete say so in the status line and write nothing until it is fixed. - Picking one sets its options as one undo step, and a toast says how many changed. Picking a saved profile puts its name in the box, so Save updates it and Delete removes it. Delete asks for a second press, because a deleted profile is not on the undo stack. - Custom shows when the options match no profile, for example after you change one by hand. The list reads the options each time, so it follows a load, an undo or an Inspector edit. When two profiles match, the one that sets more options is shown. - A profile never touches Bake Visible Only or the cordons. Those decide what goes into the bake, not how it is built. - Cast Shadows (On, Off, Double Sided, Shadows Only; default On): how every baked mesh casts shadows, painted ground and connectors included, unless a brush in Selection Tools or one of its visgroups says otherwise. A brush's own setting beats its visgroups', and the visgroups' beat this one. A bake profile carries it, and the .hflevel saves it (#1444). - Chunk Size (SpinBox, 0-16384, default 0): spatial chunk size for bake grouping. 0 means one mesh, which is what a level wants until it is big enough not to; the Status board offers Set chunk size N once it is. The range is the level's own bound, so the Status board's recommended chunk size is a value this control can hold. Chunking applies on both bake paths, including the per-face one that Use Face Materials selects by default. - Bake Visible Only (checkbox): skips hidden visgroups and invisible brushes during bake. - Material Atlas (checkbox): packs per-face textures into a single atlas image so all atlased geometry renders in one draw call. Requires Use Face Materials to be enabled. Faces with tiling UVs (scale > 1) are automatically excluded and rendered as separate surfaces with their original material so texture repeat works correctly. Best for levels with many small non-tiling textures. HammerForge’s default projection maps world units into UV space, so an ordinary 64-unit face is 0..64 and counts as tiling: on a level built with the defaults this switch usually packs nothing. The bake now says which it did, in the Console Log — Atlas: packed 4 of 6 material groups into one atlas, or Atlas: skipped, 6 of 6 material groups have tiling UVs. Scale the face UVs into 0..1 on the materials you want atlased. Textures with painted layers or ShaderMaterials are not atlased. The atlas is at most 4096 pixels square, so a level carrying more texture than that holds packs what fits and renders the rest on their own materials, with a warning saying how many. - PBR maps come along. Normal, roughness, metallic, and emission maps are packed into parallel atlases over the same layout, so materials keep their surface response. A material that supplies no map for a slot contributes a flat tile carrying its own scalar (its roughness value, its metallic value, a flat normal, or black), so mixing mapped and unmapped materials is fine. - Cost. Each packed slot is a second full-size atlas image, so a level whose materials carry all four maps holds five atlases rather than one. Slots no material supplies are never built. - When a slot is skipped. The atlas material holds one multiplier and one texture-channel selector per slot, so every material supplying a map has to agree on them. If they disagree — different roughness_texture_channel values, different normal_scale, a metallic map left at the default metallic = 0 multiplier — that slot is left out rather than baked wrong. Albedo still atlases. Give the mapped materials matching settings (multiplier 1.0 is the usual fix) to bring the slot back in. - Collision Mode (0/1/2, default 0): controls how baked collision shapes are generated. - 0 — Trimesh (default): one ConcavePolygonShape3D per material surface in each chunk, so a ray hit can name the material it landed on. Simple but worst-case for physics broadphase. - 1 — Per-brush convex: each brush gets a ConvexPolygonShape3D (convex hull), and a brush a cut goes through gets one for each piece left round the cut, so a doorway stays open. A cut that is not convex, such as a torus, leaves the cut mesh's triangles instead, and the bake says so. Much better for physics queries and bot navigation. - 2 — Per-visgroup partitioned: separate StaticBody3D per visgroup, each containing convex hulls for its member brushes. Best for navigation mesh generation and room-based broadphase. - Convex Clean (checkbox, default on): deduplicate vertices before building convex hulls. Disable to keep raw vertex data (degeneracy guard still runs). - Convex Simplify (slider, 0.0–1.0, default 0.0): reduce convex hull complexity by merging nearby vertices into an AABB-proportional grid. Higher values = fewer vertices = simpler collision. - Unwrap UV0 (checkbox): applies per-vertex planar UV projection during bake for surfaces that lack explicit UVs. - Generate Occluders (checkbox): automatically generates OccluderInstance3D nodes from large flat surfaces during bake. The bake pass walks the entire baked hierarchy (including chunked bakes), groups triangles that are both coplanar and touching into flat surfaces, and emits one occluder per surface that exceeds the minimum area threshold. Touching is the important half: two walls that happen to share a plane but stand in different rooms are two occluders, because Godot gives each occluder a single bounding volume and one that spanned both would never be culled itself. This enables Godot's built-in occlusion culling at runtime without manual occluder placement. An occluder culls what is behind it for the whole game, so only geometry that stays put gets one: a door, a func_physbox, a func_illusionary brush and a brush entity whose class takes inputs, such as func_wall, which Disable hides, make none (#1961). Sub-controls: - Min Area (SpinBox, 0.5–100.0, default 4.0): minimum flat-surface area in m² to emit an occluder. Raise this value to reduce occluder count (fewer culling tests); lower it to increase coverage (more surfaces act as occluders). Surfaces smaller than this threshold are skipped. - Auto Connectors (checkbox): auto-generates ramps or stairs between paint layers at different heights during bake. Requires at least 2 paint layers of one cell size with filled cells at adjacent grid positions and a height difference ≥ 0.1 world units. A layer with paint on it keeps its cell size when the grid snap changes, and an empty one takes the new snap (#2011). Sub-controls: - Mode dropdown: Ramp (smooth slope), Stairs (stepped), Auto (stairs once the height difference reaches the Stair Threshold, ramp below it). - Step H (SpinBox, 0.05–2.0): stair step height in metres (only affects Stairs/Auto modes). - Width (SpinBox, 1–8): connector width in grid cells. - Stair Threshold (SpinBox, 0.01–256.0, default 2.0): the height difference at which Auto picks stairs over a ramp. Saved with the level and used by live ghosts, confirmed connectors, Bake Check and the bake. The navmesh runs through a door rather than stopping at it, open or shut, and is cut around the collision of a prop_static whose scene has one (#1196, #1197). Connectors are generated before navmesh baking, so the navmesh automatically covers connector surfaces. Auto-connectors are skipped during selection bakes (Bake Selected) to avoid pulling in unrelated geometry. Step H and the navmesh's Agent Climb have to agree. A step taller than the agent can climb bakes a staircase nothing that follows the navmesh can use, and both default to 0.25, so they start exactly on each other. Bake Check works out the connectors the bake would actually build, counts the staircases whose step is over the limit and names the tallest, so it stays quiet in Ramp mode, where Step H is never read, and it still measures a staircase you placed by hand with the connector tool, which carries its own step and bakes whether or not auto-connectors are on. The playtest player is separate and steps up to its own max_step_height (0.4 by default). A ramp has the same problem against Agent Slope. Its run is one grid cell and its rise is the height difference between the two cells, so with the default cell size and the default 45 degrees, a drop of more than about a metre bakes a ramp no agent will walk. Bake Check measures the connectors the bake would actually build, counts the ones over the limit and names the steepest.

When only specific brushes have been modified since the last bake, the main Bake button runs Bake Changed, which rebuilds the whole level as Bake does. Changing a bake setting counts as a change — the settings the last bake ran with are compared against the ones now set, so a rebake after flipping Bake Visible Only, a collision mode, a navmesh parameter or the cordon rebuilds in full rather than returning the previous result.

Bake Issue Detection

Click Check Bake Issues to scan for potential problems before baking. The findings are listed under the button, one row each. Select selects the object a row names. Where the fix is one mechanical edit, Fix makes it as one undo step and checks again; a finding whose fix is a judgement call, such as how deep a floating cutter should sink, has no Fix. The list holds: - Degenerate brush (severity 2): near-zero thickness on any axis — blocks play. - Oversized brush (severity 1): very large dimensions — warning only. - Floating cut (severity 1): a cut brush that does not overlap any solid brush. - Overlapping cuts (severity 1): two cut brushes that go into each other. Both cut checks read a turned brush where it really is, so a doorway cut into a turned wall lands on it (#1967). - Open edges (severity 1): edges shared by only one face — geometry is not watertight. - Non-manifold edges (severity 2): edges shared by 3+ faces — may cause bake artifacts. - Non-planar faces (severity 1): faces with 4+ vertices where a vertex drifts off the face plane beyond planarity_tolerance (default 0.01 units). Common in imported .map geometry with floating-point drift. - Occlusion missing (severity 1): occluder generation is enabled but no occluders were created (all surfaces below the minimum area threshold). - Occlusion coverage (severity 0, info): reports occluder count and estimated coverage as a percentage of baked AABB surface area. Appears when occluders exist. - Micro-gaps (severity 1): near-coincident but not-exactly-equal vertices across different brushes that would cause seam tearing after bake. Detected within weld_tolerance (default 0.001 units). Vertices closer than float rounding (0.00001 units near the origin, more further out) count as touching. The row's Select picks both brushes. - Stairs above agent climb (severity 1): one or more connector staircases the bake would build have a step taller than the navmesh agent's max climb, so nothing that pathfinds can use them. Reported once with a count and the tallest. Only when Navmesh is on and the level has stairs to build, which means Stairs or Auto mode for generated connectors, or a staircase committed with the connector tool. - No player spawn (severity 1): a level with brushes and no player_start. Fix makes one in the middle of the level, standing clear of anything there. - Spawn inside a brush (severity 2): the line the player's capsule stands on runs through a solid brush, by the brush's own faces, where no cutter has cut it away. A room cut out of a block, a ramp, a trigger volume and a func_illusionary brush do not count (#1962). Fix moves the spawn sideways along the floor it stands on, a grid step at a time, to the nearest place it stands clear. This reads the brushes, so it needs no bake; Validate Spawn is the full physics check. - Visgroups disagree on Cast Shadows (severity 1): a brush with no Cast Shadows of its own is in two visgroups that set different ones. The visgroup higher in the visgroup list decides, and the row names the brush, the visgroups and what it bakes with. Give the brush its own Cast Shadows in Selection Tools to settle it. - Ramp above agent slope (severity 1): one or more connector ramps the bake would build are steeper than the navmesh agent's max slope. Reported once with a count and the steepest. Only when Navmesh is on and the level has connectors to build.

Auto-fix helpers (also reachable directly on level_root.validation_system): - weld_brush_vertices(brush) — snaps near-coincident vertices to their average. Refreshes face normals and bounds automatically. - fix_non_planar_faces(brush) — projects drifting vertices back onto the face plane.

Validate also measures what you build for the player to walk through against the playtest player itself: a flight of three or more steps whose risers are over the 0.4 m it steps up, a doorway (a cut right through a wall, down to its foot) narrower than the player or lower than it even crouched, and a wedge ramp steeper than 45 degrees that leads up onto a floor. A step is read by its top, so the floating slabs of an open flight and the treads of the Spiral Stairs structure count as steps (#1212), and the playtest player stops at a riser over its step height from any angle (#1216). A cut that runs out of the top of a low wall leaves nothing over the gap, so only its width is measured (#1215). A doorway the player has to crouch through is an info, not a warning. Each names both brushes, and Select picks the pair. Stairs, walls and ramps turned together to any angle are measured as if square to the world, and box steps each turned their own way, such as a spiral of boxes, are followed step by step from above (#1095). A flight that turns partway is one flight, reported once (#1104). A stair whose Collision is Ramp is measured by the ramp the bake lays over it, not its steps (#1588). A cut through a func_wall or a func_detail is no doorway, because the bake never opens one, and a cutter tied to an entity class makes none (#1563). A func_clip is left out of the stair, doorway and ramp checks, and so are a trigger and a func_illusionary brush, which the player walks through (#1962).

Validate and Validate + Fix list what they find in the same rows as Check Bake Issues, each with Select on the brush or entity it names, and still log every line to the Output. Validate + Fix lists what is left after its repairs. Its findings have no Fix button of their own; the repairs it can make are the ones Validate + Fix already makes.

Accept a finding that is fine (#1731). Every row has Accept, which asks why, such as "decorative, not walked". An accepted finding is not listed again, and Validate's count, the Status board and the bridge's hf_validate leave it out; hf_validate counts it under accepted. It is kept in the level, with the note and the date, so it saves with the .hflevel and the scene and undoes like an edit. When what it names changes, it comes back, marked changed since accepted. Show accepted below the rows lists the accepted ones, each with Un-accept.

Choose which checks run. Checks below the rows lists the kinds of check Validate runs: brush shape and size, brushes inside or on top of others, level data, entity names and wiring, the player spawn, stairs, doorways and ramps, and open To Do notes. Untick one and Validate leaves it out, which also makes the pass quicker. The choice is the project's, kept in hammerforge_presets/validation_checks.json, so a team that commits it checks the same things.

The list keeps up. After a Validate, an edit to a brush is checked again once the level has been still for a second: its own size, place and faces, and whether it sits inside or on top of the brushes near it. A row it fixed goes, and a problem it made comes in, without pressing Validate or running a whole pass. An entity added or removed checks the names and wiring again. The spawn, the stairs and doorways, and the To Do notes wait for the next Validate.

validate_level(true) runs both over every brush in the level as part of its geometry pass, so a level imported from another editor can be cleaned up without calling them per brush. That pass also reports a brush whose size or transform is not a number, a brush with no faces (which auto-fix deletes, since there is nothing to repair), and a vertex that is not a number (reported only — there is no nearest position to a NaN).

validate_level() checks that every brush is still a convex solid, which is the one property a brush in this lineage has to have and the same test that gates the vertex tools. There is no auto-fix for a brush that is not: it is two solids or a bent one, and guessing which was meant would throw geometry away. Merge will not make one any more, but a .map import or a hand edited .tscn still can.

It also reports a face that points into its brush: Brush has 1 face pointing into it, which draw as holes and bake inside out: Wall (#1869). Such a face is wound the wrong way, so it is culled seen from outside and bakes facing into the solid, which looks just like a missing face. Validate + Fix turns each one back, its texture with it, on a convex brush. A displaced face is reported and left, since its sculpt would turn inside out with it. A brush that is not convex, such as a torus, cannot be read this way and is not checked. Show Face Direction shows which way every face points; see View Filters.

It also says when the level has no player spawn, or when the spawn sits outside the level's bounds. A spawn standing on the level's top, as on the ground of an outdoor level, counts as in it. This one is deliberately geometric rather than the physics check behind Validate Spawn: that needs collision, and collision comes from the bake, which is why the button bakes first. Validate runs on an unbaked level, so it answers the question it can answer honestly without one.

It reports two brushes in the same place: 2 brushes occupy the same space: crate_1, crate_2. That is Ctrl+D followed by a drag that did not take — the copy is exactly on the original, so nothing looks wrong in the viewport, and what the level gets is doubled triangles over the whole overlap and z-fighting on every coincident face. The check is deliberately narrow: position, size and shape all matching within an epsilon. Brushes are meant to intersect, so ordinary overlap is not reported. There is no auto-fix, because deleting one of a pair is a guess about which one you want.

It also reports brushes that add nothing to the bake, none of which shows in the viewport (#1708):

• Cut brush cuts no solid brush: Cut_7. A cut left behind when the wall it cut moved, or placed a little off. It removes nothing, and it still sends the whole bake down the CSG path rather than the face material one. The cut is measured against each solid as a convex shape, so a turned cut whose box crosses a wall it misses is still found. A bake that takes the CSG path names these cuts in the Console as well.
• Solid brush is wholly inside another: crate inside hall. Every corner of the first is inside the second, to within a millimetre. It adds nothing to the outside surface and leaves faces inside the solid. One poking out by a centimetre is not reported.
• Brushes are the same to within 1 mm: wall, wall_2. The check above with a tolerance, for a copy moved by a rounding error rather than not at all. The row is on the later brush, the copy.

Below the rows, each of these kinds gets a row of its own with Select All, which selects the brush each finding is about (the cut, the brush inside, the later of each pair), so you can look and press Delete. The near pairs also get Keep First, which deletes the later brush of each pair as one undo step and validates again. Nothing is deleted until you press it.

A prefab instance whose .hfprefab has been deleted or moved is reported as a missing dependency. The instance goes on working, because its brushes are real brushes, so the only other sign is Cycle Variant doing nothing.

validate_level() also resolves every I/O connection's target name against the entities in the level and reports the ones that miss: I/O connection points at 'door_1', which no entity answers to: button_1.OnPressed. Wiring is held by name, so renaming a target in the Scene dock or in the Objects tab breaks every wire aimed at it. It is reported only; deleting a mapper's wiring is not something auto-fix does on its own. It also reports a name more than one entity answers to. The brushes of one tie count as one entity, so a door of two leaves tied under one name is fine, while two doors tied apart under one name are reported, because the name makes them one entity without anyone saying so.

Both tolerances (weld_tolerance, planarity_tolerance) are configurable per-instance for noisy imported geometry.

Issues appear as color-coded toast notifications.

Non-Blocking Face Bakes

When Use Face Materials is enabled, full bakes yield back to the editor every 8 brushes so the UI stays responsive during large bakes. A progress label shows "Collecting faces N/M" as geometry is processed. The bake operates on a snapshot of brush state taken at the start, so editing brushes while a bake is running will not produce mixed results — changes are picked up on the next bake.

Bake Time Estimate

The Test tab shows an estimated bake time: the last bake's time divided by the brushes that bake took, times the brushes in the level now, or 2 ms a brush before the first bake. A Bake Selected takes only its selection, so after one the estimate is still a whole level's (#1590). Frame-yield idle time during face bakes is excluded from the estimate so it reflects actual work, not editor frame pacing. If the level has more than 500 brushes, a tip to chunk the bake so the game can cull it appears; chunking does not shorten the bake (measured).

player_start properties (set in the Entity Properties panel): - primary (bool) -- preferred spawn when multiple exist. - angle (float, degrees) -- initial yaw rotation for the player. - height_offset (float) -- extra height above floor for safety.

Test tab → Spawn section: - Validate Spawn -- triggers a bake, then runs validation against real collision geometry and shows debug overlay (green/red capsule, floor ray, ceiling ray) for 10 seconds. - Create Default Spawn -- places a player_start over the middle of the level, standing on the floor under it, if none exists. Fully undoable and redoable. - Preview Spawn Debug -- triggers a bake, then shows persistent overlay toggle (stays visible until unchecked).

Toast Notifications

Transient notifications appear in the dock for important events: - Save/load/export results (success or failure). - Bake completion or errors. - Operation errors with actionable hints (e.g. "Wall thickness 6 is too large — Use a thickness less than 5"). - Reference cleanup reports (e.g. "Removed 2 I/O connection(s) targeting deleted brush 'door1'"). - Autosave failures (also shown as a persistent red warning label). - Notifications auto-fade after 4-8 seconds depending on severity (INFO, WARNING, ERROR).

Context Hints

Each tab shows a contextual hint at the bottom guiding you through the workflow: - Build tab: start with Create Starter, then draw; selection reveals Hollow, Clip, and Extrude actions - Paint tab: "Draw some brushes first, then paint them here" - Objects tab: drag an object from the palette into the viewport - Test tab: use Test Level for the one-click path; check or bake separately only when needed

Object and Face Marquee Selection

In Select mode, click a visible surface or begin on empty viewport space and drag. Godot decides the click target, drag threshold, region hits, modifier meaning, transform/property-widget hits, and resulting EditorSelection; HammerForge does not approximate those private shapes with a circular dead zone. Brush gizmos register filled triangles from the real brush faces. Entity gizmos combine visible nested preview triangles with restrained local markers for any broken or line-only sibling, including top-level preview children, so one healthy component cannot hide an incomplete one. A truly geometry-less entity gets a one-unit marker at its origin; hidden previews and hidden parents leave no invisible target. Hold Shift for Godot's native additive/active-selection behavior. Ctrl/Cmd remain Godot-owned rather than acting as a HammerForge object toggle. Grouped HammerForge brushes are normalized as one unit after Godot finishes. Sweep select: hold I (Sweep Select in the shortcut dialog) as you press and drag, and every brush the cursor passes over joins the selection the moment it is passed, so the trim along one wall, the steps of a stair or a run of pillars is one drag. Each point takes the front brush, as a click does, so the floor behind them is not taken; a hidden or locked brush is passed by, and one member of a group takes the whole group. Start on a brush that is selected and the sweep takes out what it passes instead. In Face Select the same drag adds or removes faces. Escape or a right click during the drag puts the selection back as it was (#1886).

In Face Select mode, the saved object selection and its transform/resize gizmos are hidden, and HammerForge owns face click and marquee selection. Drag at least 6 pixels across one or more brushes. A candidate face must be on a canonical, visible brush and have its screen-projected center inside the rectangle; HammerForge then ray-picks that center and accepts the face only when the same brush/face is the frontmost visible hit. Hidden, back-facing, or occluded faces do not come along merely because their centers overlap the rectangle. Tick X-ray beside Face Select Mode, or press Alt+X, and the marquee instead takes every face of a visible brush whose center is inside the rectangle and in front of the camera, covered or facing away, so one drag over a room seen from outside takes its inside walls too. While X-ray is on the HUD says so and the rectangle is drawn amber rather than blue. A brush hidden on its own or by a visgroup still gives no faces. Shift adds and Ctrl/Cmd toggles using the modifier state captured at LMB-down. Disable the mode to return to the prior object selection, leave Paint or choose an incompatible tool to close it cleanly, or select an object in the Scene tree to edit that object directly.

Resize Handles and Widget Protection

Selected non-custom brushes show six yellow face handles; custom face-defined shapes keep their truthful boundary outline without misleading box handles. A handle drag owns its full press/motion/release sequence, so it cannot also click an object, start a marquee, paint, or activate another tool. Godot's move/rotate/scale widget and native property gizmos receive the same protection and remain responsible for their own exact hit-testing.

Resize distances and grid snap are measured in world units, which are metres (see World scale). A handle snaps its extent to the grid while Grid (G) is on, and Ctrl held turns that the other way; with Vertex (V) on, or Alt held, the face stops level with another brush's vertex near the cursor (see Snap Modes). If a brush is below a rotated or non-uniformly scaled parent, the grabbed face follows the transformed local axis, the opposite face stays fixed in world space, and the local brush size is adjusted to produce the requested world extent. Sphere handles keep X/Y/Z equal. On cylinders, cones, and capsules, either X or Z handle changes the shared X/Z radius; Y changes height, but a capsule can never become shorter than its diameter. Odd-sided prisms and adjustable pyramids now fill their centered stored bounds, so their visible faces and handle planes agree. Other supported shapes keep independent axes. A collapsed or invalid transform axis is ignored instead of causing a jump. One completed resize creates one undo step; a click with no change, an explicit cancel, or a recovered lost release creates none. During lost-release recovery the original preview is restored and frozen; if Godot never sends its matching release callback, HammerForge releases the local input latch after the recovery turn and ignores a late callback, so the next handle gesture cannot remain blocked.

Picking Visibility and Depth

Click and hover picking ignores brushes, entities, and preview visuals hidden by a visgroup. Brush bounds are only a fast candidate check: the final hit uses the actual face triangles, so a ray through empty space inside a wedge, cone, pyramid, curved, or custom brush does not select or hide geometry behind it. Entity previews are picked from their visible geometry even when that geometry is stored as an internal editor child. When geometry overlaps in screen space, HammerForge compares brush and entity hits in the same world-space ray and chooses the genuinely nearest visible result, including when either object is scaled.

Surface placement uses the same exact brush-face fallback when editor draft brushes do not yet have physics bodies. Draw placement, entity/prefab drops, and other callers of the shared editor raycast land on the visible non-box surface rather than an AABB wall; when no geometry is hit, the forward ray falls back to the plane the grid is drawn on — the one set by Grid Up/Down or Align Grid, or the last completed draw's base when it is not held. An axis lock stands it up on X or Z. Reset Grid releases a held plane and returns it to the LevelRoot origin.

Selection Filters

Press Alt+F or click the Flt button on the context toolbar to open the Selection Filter popover. It provides bulk selection tools organized by category:

Category	Filters	Description
By Normal	Walls, Floors, Ceilings	Select faces by surface direction. The three partition every direction between them: a face within 17 degrees of vertical is a wall, everything else is a floor or a ceiling by its sign, so ramps and chamfers come out with the floors
By Material	Same Material	Select all faces matching the selected face's material
Select Similar	Similar Faces, Similar Brushes, Similar Entities, and a row of ticks for each	What must be the same, ticked here and kept with your preferences. Brushes: material, shape, add or cut, size (20% tolerance, orientation-agnostic), visgroup, group, structure, entity class. Faces: material, UV scale, normal (15°). Entities: class, and a property you name. Untouched, faces match material and normal, brushes size and entities class
Quick Select	Brushes or Entities, Properties, In selection, Select, Add, Take Away	Select by a typed rule, below
Grow / Shrink	Grow, Shrink, Same plane only, Max angle	The same as Ctrl+] and Ctrl+[, below, with the options they use
By Visgroup	(dynamic)	One button per visgroup — select all members
By Type	Detail, Structural	func_detail vs worldspawn brushes

Filters only ever reach brushes you can see. A brush hidden on its own or by a visgroup is left out, so a material assignment made straight after a filter cannot land on geometry you hid on purpose. A filter that matches nothing leaves the current selection alone and says why ("No detail brushes in this level", "Select a face first, then Same Material").

Select Similar

Press Shift+S to quickly select similar geometry without opening the filter popover. It matches on what is ticked in Selection Filters, and the ticks are kept between sessions: - When faces are selected: selects every face on a visible brush that matches on the ticked keys, material and normal (within 15°) unless you tick others. These are the same faces Similar Faces in the popover selects. - When brushes are selected: selects every visible brush that matches on the ticked keys, size (within 20% tolerance, ignoring orientation/rotation) unless you tick others, the same brushes as Similar Brushes in the popover. With Material ticked it takes every brush that has the first brush's main material on any face. - When entities are selected: selects every visible entity of the same class, or with the same value of the property named beside Property. - With nothing ticked for a kind, it says so rather than select everything.

Quick Select

Run Quick Select from the command palette, or open Selection Filters (Alt+F), to select by a rule. Pick Brushes or Entities, type the rule and press Enter or Select: - A rule is a property, a test and a value, such as operation is cut or class is light_point and energy > 2. Join more with and or a comma. - Tests: is, is not, >, >=, <, <= and matches, which takes * for any run of characters, as in name matches door_*. Names and classes ignore case. Put a value with spaces or commas in double quotes. - Brushes take operation (add or cut), material (a palette name or file), shape, visgroup, group, structure, prefab, brush_entity (a class, or true or false) and name. Entities take class, name, visgroup, has_outputs, has_inputs, and any of their own properties by name, which compare as numbers when both sides are numbers. Properties adds one to the rule. - Select replaces the selection, Add adds to it and Take Away takes the matches out of it. In selection looks only among what is selected now. - These are the same tests the MCP bridge's hf_get_brushes and hf_get_entities filter by, so a rule picks the same set either way. - A rule that cannot be read, or matches nothing visible, says why and leaves the selection alone.

Grow and Shrink Selection

Press Ctrl+] to grow the selection by one ring and Ctrl+[ to shrink it by one. Both are also in the command palette and in the Grow / Shrink row of Selection Filters. - When faces are selected, Grow adds every face that shares an edge with a selected face: on the same brush, or on another brush whose edge runs along it. Faces that only meet at a corner are not added. Shrink drops every selected face that has an edge on a face Grow would add, so a Grow and then a Shrink gives a patch back. - Same plane only keeps the grow to faces in the plane of the face they border, facing the same way: a floor made of several brushes, without climbing the walls standing on it. Max angle (degrees between the two faces' normals, 180 by default) stops the grow at a sharper turn: at 30, a grow goes round a 16-sided cylinder's sides and stops at its caps. Both apply to Shrink too, so shrink a selection of floor tops with Same plane only ticked: without it every top borders its own brush's sides. - When brushes are selected, Grow adds every brush whose solid touches or overlaps a selected one, and Shrink drops every selected brush that touches one that is not selected. Touching is measured on the brushes' real shapes, not their bounding boxes, so a turned brush beside a staircase is not added because its box reaches a step. - A brush hidden on its own or by a visgroup is never added. A Shrink that would leave nothing selected leaves the selection alone and says so, and one with nothing to add or drop says why. Selecting is not an undo step, so neither is a Grow or a Shrink.

Invert, and Select With a Brush

Invert Selection selects every visible brush and entity that is not selected, and deselects the rest, so "everything except these" is two clicks (#1717). What a visgroup hides stays out, so hiding the rest and then inverting does what you expect.

To pick a room, draw a throwaway brush around it, keep it selected and run one of these. The brush is deleted as one undo step, so the level is as it was and only the selection changes; Ctrl+Z brings the brush back.

• Select Inside: every brush wholly inside it, and every entity standing in it.
• Select Partly Inside: the same, and every brush that goes into it at all.
• Select Touching: every brush that touches or overlaps it, and every entity on it or in it.
• Select Column: as Select Inside, with its footprint running from the bottom of the level to the top, so a small box drawn on the floor in a top view picks what is above and below it on every floor.

The brush is measured as the shape it is, so a turned box picks what is in it and not what is in its bounding box. All five are in the command palette and in the viewport's right-click menu: Invert Selection at the bottom, and the four under Select With This Brush with a brush selected. None has a key by default; give one in the shortcut dialog.

Apply Last Texture

Press Shift+T to apply the last texture you sampled with the Texture Picker (T key) to the current selection. Works on both face and brush selections. This enables a fast pick-and-paint workflow: press T to sample a material from any face, then Shift+T to stamp it onto other faces or brushes. Shift+T carries the material only; each face keeps its own projection, scale, offset and rotation. On several brushes it is one undo step, so one Ctrl+Z puts them all back.

Replace Material

Replace Material... swaps one material for another on every face that wears it: the grey prototype wall for the real plaster, in one pass (#1726). Open it from the command palette, the Replace... button under Paint > Material Library, or a thumbnail's right-click menu, which starts Find on that material. Find lists the materials the level's faces wear, each with how many faces wear it, and Use Picked takes the one the Texture Picker (T) last read. Replace with is any palette material. Where is the whole level, the selected faces and brushes (the default when something is selected), or shown brushes only, which leaves a hidden visgroup alone. The dialog says how many faces on how many brushes will change, and marks them in the viewport while it is open; Cancel puts the selection back. A brush in a locked visgroup is not counted or changed. The counts take in a committed cut's faces, which paint the hole it carves, as the browser's do (#1936). The faces keep their UV scale, offset and rotation unless Reset UVs is ticked. Replace is one undo step, and the faces it changed become the face selection, so Fit or Align is one more click. The agent bridge runs the same pass as replace_material.

Apply Picked Look

The Texture Picker also keeps the whole look of the face it samples: its material and how the texture is laid on, the projection, scale, offset and rotation. Press Alt+T to give that look to every selected face, as one undo step. Planar and Box UV textures are projected from where a face sits in the level, so two faces in one plane with the same look show one continuous texture: a wall built from several brushes lines up with T on one face and Alt+T on the rest. The same command is the Apply Picked Look button in Paint > Face Tools > UV Editor and an entry in the command palette.

• A selected face whose UVs were dragged by hand in the UV editor loses that layout, so the copied settings show. Ctrl+Z brings it back.
• Paint layers and displacement sculpts on the selected faces are left alone.
• A hand-made layout on the picked face does not travel. Only its settings are copied, and the toast says so.
• It works on faces, not brushes: select them with Face Select first.

Apply Favorite

Press Alt+1 to Alt+9 to apply a favorite material: Alt+N applies favorite N, the button numbered N on the context toolbar's strip and the thumbnail numbered N in the Favorites view. Favorites are numbered in palette order. It goes on the selected faces, or on the selected brushes when no face is selected, as one undo step. An empty slot shows a toast naming it and changes nothing. While a draw or extrude is under way the digit is a typed size, so Alt+digit never changes a material mid-gesture. Each one is also an entry in the command palette and can be rebound.

Smart Contextual Toolbar

A floating mini-toolbar appears in the 3D viewport showing context-sensitive actions based on your current selection and tool state. It eliminates the need to switch dock tabs for common operations:

Each section uses small muted group labels (e.g. "Extrude", "Modify", "Select") to visually cluster related tools following Gestalt proximity principles.

• Brushes selected → [Extrude] Ext▲/Ext▼ | [Modify] Hollow, Clip, Carve, Merge, Intersect | Duplicate, Delete | [Select] All, ⌂, Similar, Filters | [Preview] Bake▷ toggle. Prefab buttons appear for instances. Shows "N brush(es) selected" count.
• Faces selected → Material thumbnails (favorites strip, up to nine, numbered as Alt+1 to Alt+9 apply them; it shows for a brush selection too) | [UV] Fit/Center/L/R/T/B, Giz (Texture Gizmo) toggle | [Apply] All, Last | Select Similar. Shows "N faces on M brush(es)" count.
• Entities selected → [Entity] I/O, Properties | Highlight toggle + I/O summary | Duplicate, Delete. Shows "N entities selected" count.
• Draw mode (idle) → [Shape] Box/Cyl/Sph/Cone | Add/Subtract toggle | Repeat, showing the last drawn brush's icon and size (disabled before the first Draw). When pending cuts exist: Apply, Commit, Clear buttons + "N pending" badge.
• Dragging → Live dimensions display | Axis Lock (X/Y/Z) | Cancel.
• Vertex mode → [Mode] Vertex/Edge toggle | [Edit] Merge, Split, Convex, Snap | Exit.

If Godot's visible selection mixes HammerForge objects with ordinary Godot nodes, selection-dependent HammerForge sections are unavailable. Finish the edit on one domain at a time; this prevents a toolbar action from changing only the HammerForge subset.

An auto-mode hint bar appears during brush drawing, showing the current operation mode (e.g. "Drawing in Add mode — press Subtract to toggle") with a one-click toggle button.

Command Palette

Press Shift+?, F1 or Ctrl+K to open the command palette: a searchable list of all HammerForge actions with key bindings. Actions that cannot run in the current state are grayed out (e.g. Hollow is disabled when nothing is selected, paint tools are disabled outside paint mode). A grayed out action says why: its tooltip ends with the reason, such as "Select a brush first" or "Turn Paint mode on first", and with the mouse on it the same reason shows in a line under the list. While you type, that line speaks for the top match. The reason is the same sentence the action's key would have shown as a toast (#1868). The context toolbar's Repeat button and its bake and cut buttons say why on their tooltips too while they are grayed out. Type to filter, press Enter to execute the first matching action, Esc to close.

Selection-dependent managed actions are also grayed out for a mixed HammerForge/Godot selection. If selection changes between opening and invoking the palette, the final dispatcher repeats the same safety check.

Viewport Context Menu

Press Space to open a context-sensitive popup menu at the cursor position in the 3D viewport. The menu adapts to your current selection and tool state:

• Brush selected → Place Entity Here, Extrude Up/Down, Hollow, Clip, Carve, Make Brush Entity, Back to World for a brush tied to one, Group, Ungroup for a grouped brush, Add to Visgroup, Duplicate, Delete
• Face selected → UV operations (Fit, Center, Left/Right/Top/Bottom justify), texture tools, Show Material in Browser, Run Trim Along Faces, and Re-pick Trim Run while a piece of a trim run was selected on the way into Face Select
• Entity selected → Place Entity Here, I/O Connect, Properties, Add to Visgroup, Duplicate, Delete
• Draw mode (idle) → Place Entity Here, Shape selector, Draw as Add and Draw as Cut (the current one ticked), Toggle Grid
• Vertex mode → Merge, Split, sub-mode toggle

Place Entity Here lists the level's point entity classes by category and puts the chosen one on the surface under where the cursor was when the menu opened, standing on it as a drop from the palette does. Make Brush Entity lists the brush entity classes and ties the selected brushes to the chosen one, as the Entity panel's Tie does; Back to World unties them. Add to Visgroup lists the level's visgroups and New Visgroup, which makes "Visgroup 1" (or the next free number) holding the selection, to rename in the dock. Show Material in Browser brings the Paint tab forward with the picked face's material selected in the browser's palette. Each change is one undo step; a row that does not apply to the selection is left out (#1724).

Place Here appears above the footer while a prefab is selected in the Prefab Library, and places it at the cursor.

Convert to Brushes appears at the top while Godot meshes or CSG shapes are selected (see Convert to Brushes).

Common footer (in every context): Select All, Deselect All, Grid Snap submenu (0.1/0.25/0.5/1/2/4/8 m), Quick Bake, Undo, Redo.

Highlight Connected appears as a check item — it reads the current state and toggles it.

The menu only activates when idle (no active drag, paint, or external tool operation). Its key, Space by default, can be rebound in user://hammerforge_keymap.json (see Customizable Keyboard Shortcuts).

With a mixed HammerForge/Godot selection, managed selection commands are unavailable. The final context-menu action handler also checks again before editing, so stale menu state cannot produce a partial change.

Radial Menu

Opt-in. This is one of the power-user overlays, off by default so the core loop stays quiet. Turn on Power-user overlays in the Console's Controls tab, or in the dock under Test -> Settings.

Press ` (backtick) to open an 8-sector pie menu centered on the cursor. Move the mouse to highlight a sector, then left-click to select:

Sector	Action
Box	Switch to Box shape
Cylinder	Switch to Cylinder shape
Select	Switch to Select tool
Paint	Switch to Surface Paint
Vertex	Enter Vertex Edit mode
Tex Pick	Activate Texture Picker
Measure	Activate Measure tool
Clip	Clip the selected brush across its middle, as Shift+X does

Dead zone: Moving inside the inner ring (center area) deselects all sectors. Moving outside the outer ring also clears the selection — the cursor must be within the ring to select.

Dismiss: Press Escape, the Radial Menu key again (backtick by default), or right-click to close without selecting.

While the radial menu is open, it intercepts all viewport input. Its key can be rebound in user://hammerforge_keymap.json, and the menu then closes on the new key.

Radial sectors that start a selection-dependent managed action, such as Clip or Vertex Edit, use the same mixed-selection guard as keyboard and contextual UI. General tool switches remain available when they do not mutate the selected subset.

Quick Property Popups

Double-tap a key, or press Alt+G for Offset, to open a small inline editor for a numeric property:

Keys	Property	Controls
G G	Grid Snap	1 SpinBox (snap size)
B B	Brush Size	3 SpinBoxes (X, Y, Z dimensions)
R R	Paint Radius	1 SpinBox (radius)
Alt+G	Offset	3 SpinBoxes (X, Y, Z) and World / Local; see Moving by an Exact Offset

The popup appears at the cursor position. Type a value and press Enter to apply, or Escape to cancel. Clicking outside the popup dismisses it (the click is consumed and does not pass through to the scene).

Viewport Contextual Hints

When you switch tools, a brief instruction hint appears in the viewport overlay: - Draw: "Click to place corner → drag to set size → release for height" - Select: "Click to select; drag empty space for a box; drag widgets to edit" - Extrude Up/Down: "Click a face to start extruding upward/downward" - Paint Floor: "Drag to paint; Alt erases, Shift locks an axis, Ctrl picks material" - Paint Surface: "Click brush faces to apply material"

Hints auto-fade after 4 seconds. Once you dismiss a hint (by switching away), it won't appear again. Hint dismissal persists across sessions. To reset all hints, delete user://hammerforge_prefs.json or clear the hints_dismissed key.

Brush Visual Coding

HammerForge keeps operation types recognizable without covering ordinary geometry in triangle topology:

Operation	Default Appearance
Additive (Union)	Clean green-tinted surface; no always-on wireframe
Subtractive	Red tint with one red semantic wireframe
Pending cut	Orange-red tint with a glow until it is applied, then red like any cut. The look follows the brush's own state, so Apply, its undo and a reload all draw it right
func_detail entity	Bright blue tint
trigger_* entity	Medium blue tint
func_wall entity	Muted blue tint
func_clip entity	Violet tint, whatever material its faces carry
Other brush entity	Slate blue tint

Each of these colours can be changed under Test → Settings → Colours, and High Contrast changes them all.

Hovering or selecting a brush adds one concise semantic outline. A box shows its 12 actual boundary edges, and wedges, pyramids, prisms, and polyhedra keep only true boundaries and creases—not diagonals introduced when faces are triangulated. Cylinder, cone, sphere, ellipsoid, capsule, and torus shapes use sparse profiles that communicate their silhouette without reproducing every render triangle or falling back to a box. Hover and the selected gizmo share this source, and a selected brush does not receive a second overlapping hover outline. Polygon, path, merged, and imported custom brushes follow their real face boundaries and do not show misleading box-resize handles. Full triangle topology remains available deliberately through Test → Advanced Bake → Preview Mode → Wireframe and the dedicated geometry-editing modes.

Rapid drawing or resizing should never leave nested outlines or a visual trail. HammerForge reuses its transient semantic overlays and cleans legacy duplicates automatically when affected brushes are rebuilt.

Grid Size Indicator

The viewport HUD shows the current grid snap value (e.g. "Grid: 0.5") persistently in the top-right panel. When the grid size changes — via the dock SpinBox, quick-property popup (G G), or the [ / ] hotkeys — the indicator briefly flashes bright yellow-white and fades back, providing instant feedback without leaving the viewport.

Grid size hotkeys: - [ — halve grid snap (e.g. 0.5 → 0.25), minimum 0.125 - ] — double grid snap (e.g. 0.5 → 1), maximum 512

Cut Preview

Enable Cut Preview in Test tab → Settings to see the live CSG cut between overlapping additive and subtractive DraftBrushes. A translucent red mesh shows the volume that will be removed; a wireframe AABB is used only while CSG is catching up or when too many subtractors are active. The preview updates when brushes are added, removed, or moved (0.15s debounce). It does not CSG the entire level. A brush tied to an entity class, such as func_detail, func_wall or func_clip, is never cut by the bake, so the preview shows no cut through it, and a cutter tied to one cuts nothing (#1563).

Status bar

• Shows current status ("Ready", "Baking...", errors in red, warnings in yellow).
• Errors auto-clear after 5 seconds, success messages after 3 seconds.
• Displays selection count ("Sel: N brushes" or "Sel: 3 brushes, 5 faces") when brushes/faces are selected, with a clear (x) button to deselect.
• Live brush count with color-coded performance warnings.
• Bake progress bar updates during chunked bakes.
• Performance panel shows active brushes, paint memory, bake chunks, and last bake time.
• Autosave warning: a red "Autosave failed!" label appears if a threaded save fails. Auto-hides after 30 seconds.
• Autosave waiting for a pause shows while a timed autosave is put off until editing pauses, and goes when it runs.

Snap Modes

HammerForge supports five snap modes that can be combined:

Mode	Button	Behavior
Grid	G	Snap to grid increments (on by default; hold Ctrl in a drag to turn it the other way)
Vertex	V	Snap to the corners of existing brushes: a box's 8, or a wedge's, a polygon's or any other brush's own
Center	C	Snap to the center point of existing brushes
Edge	E	Snap to the midpoint of an existing brush's edge
Perpendicular	P	Snap to the closest perpendicular projection on a brush's edge

A brush of more than 64 faces snaps to the corners and edges of its box instead.

Toggle modes independently using the G/V/C/E/P buttons below the Grid Snap row in the Build tab. The toggles are kept with your preferences and every level you open snaps with them. When multiple modes are enabled, the closest candidate wins — a nearby brush corner will beat a farther grid point. The snap threshold (default 0.1 m) determines how close you need to be to a geometry candidate for it to take effect.

Snapping while you drag. Grid (G) decides the grid for a draw's corners and height, a resize handle and a vertex or edge drag alike: with it off, none of them snap to the grid. Hold Ctrl during any of those drags to turn the grid the other way for as long as it is held: off while G is on, on while G is off. It is read on every mouse motion, so it can be pressed or let go mid drag, and the viewport HUD shows Snap off or Snap on while it is held. Vertex, Center, Edge and Perpendicular snaps still apply to the draw's corners.

With Vertex (V) on, a vertex drag lands the vertex you grabbed on another brush's vertex within 10 pixels of the cursor, and the rest of the selection moves by the same amount; a resize handle moves its face level with that vertex along the handle's axis. Hold Alt during either drag for the same thing while V is off. The brush you are editing is never a target, and a cyan marker sits on the target while the snap holds. With an axis lock the vertex goes level with the target along the locked axis. The usual checks still apply: a move that would leave the brush non-convex is refused and the brush put back, and one undo reverts a snapped drag. Both keys are rebindable (snap_invert_hold, snap_vertex_hold).

What the snap found. Wherever a pointer tool snaps, a marker on the snapped point says what it is on, by its shape: a square for a vertex, a triangle for an edge's midpoint, a circle for a brush's centre, a right angle for a perpendicular, a diamond for the Measure tool's snap line and a plain cross for the grid. The marker is the same size at every zoom, and a word beside it names the kind; untick Name the snap under Viewport in the Console's Controls to keep the shapes alone. Draw, Polygon, Path, Measure and Clip show it, and a vertex drag shows it on the vertex it lands on (#1691).

Tab to the next snap. When candidates of more than one kind are in reach, the nearest wins, and Tab steps to the next kind, then the next, and back round. The marker follows, and the click takes the one shown. Moving the cursor away, or taking the pick, goes back to the nearest. A typed number's Tab still applies the number, the Clip tool's Tab still steps its side, and with no marker showing Tab does what it always did.

One pick of one kind. Next Pick: Vertex Only, Midpoint Only, Centre Only, Perpendicular Only and Grid Only limit the next pick to that kind, whatever snaps are on, and every snap that was on returns after it. They are in the command palette and ship with no key; give one a key in the shortcut dialog.

Guides from points you rest on (#1692). Rest the pointer on a vertex, a midpoint, a centre or a perpendicular for half a second and it is marked with a small plus; rest on it again to let it go. Up to seven are kept, the oldest going first, and switching tool lets them all go. Dotted guides run from each one along the world axes. A point placed near a guide lands on it, level with the marked point that way, so a doorway lines up with a pillar across the room and a platform's edge sits under a ledge above. Where two guides cross, the crossing wins, then where a guide meets a brush's edge, and the word beside the marker says what each guide comes from; on one guide it says how far along it the point is, as "Vertex: 2.5 m along +X". A point on a guide is marked with a bar, a crossing with an X and a guide meeting an edge with a bowtie. Near a marked point its own guides stand aside, so the point itself shows. - A distance along a guide. With a guide showing, type a number and press Enter, and the next pick lands that far along the guide from its point, the way the pointer is from it. Backspace takes a digit back and Escape drops it. - A point from two others. Point Filter: X and Z from Here, in the palette with no key, takes X and Z from the snap point under the pointer for the next pick, which takes its height from where it lands: in plan from one vertex, at the height of a face somewhere else. Escape drops it. - Track Point for Guides and Clear Guides in the palette mark the point under the pointer, or let every one go. Untick Guides from points under Viewport in the Console's Controls to turn it all off, and tick Shift takes a guide point to mark points with Shift in place of a rest.

Tip: Use Vertex for corner alignment, Center for centered placement, Edge for exact midpoints, and Perpendicular for a right-angle projection onto an edge.

Undo/Redo

• All brush operations (draw, delete, nudge, resize, paint, hollow, clip) support undo/redo.
• Command collation: rapid repeated operations (nudging with arrow keys, resizing via gizmo, painting brushes) are merged into a single undo entry within a 1-second window. One undo press reverses the entire sequence.
• Multi-step operations (hollow, clip) use transactions for atomicity.

Entity Definitions

Brush entity classes (func_detail, func_wall, trigger_once, trigger_multiple) and point entities are data-driven. Definitions are loaded from the plugin's entities.json (if present) or fall back to built-in defaults, then overlaid with your project's own file.

To add custom entity types: 1. Create res://hammerforge_entities.json. This overlays the plugin file, so your entries survive a plugin upgrade. An entry with the same classname replaces the plugin one. 2. Add entries with classname, description, is_brush_entity, and optional color and properties. The palette also reads label, preview and category if you set them. 3. The Objects tab entity palette and the brush entity class dropdown both auto-populate from the merged result, so a point entity is placeable and a brush class is assignable with no further setup.

A LevelRoot can read from somewhere else instead through its entity_definitions_path export. Both pickers follow it.

Entity classes from an FGD

entity_definitions_path can name an .fgd file as well as a JSON one, or several files joined with ;, read in order, a class in a later file replacing the one of that name in an earlier.

• @PointClass is a point entity class and @SolidClass a brush entity class. A @BaseClass lends its properties, inputs and outputs to every class that names it in base(), and is no class of its own.
• size() is the box the entity draws as, and color() its colour.
• Properties keep their type: string, integer, float, choices (a list showing each choice's label), flags (a tick for each bit), color255 and color1 (a colour), and target_source, target_destination and the rest as text. Defaults, labels and descriptions come across. A name typed in a class's targetname field is the entity's own name, the one wires aim at and a .map writes (#1985).
• input and output lines are what the I/O wiring panel offers.
• @include "other.fgd" reads a file beside it.
• What HammerForge has no use for, a model, a sprite or a helper for another editor, is skipped. The file says once how much it skipped and the line of the first. Base classes that name each other in a loop are refused, and the warning names the loop. A class whose bracket is left open is left out with a warning naming its line, and the classes after it load.
• Convert Entity Definitions to JSON in the palette writes the classes as an entities.json beside the first FGD, to edit them in that form. Point the level's entity_definitions_path at it to use it.

Material Library

The material palette can be saved and loaded as a JSON library file. Save Library and Load Library sit in the Paint tab -> Materials -> Material Library, beside Refresh Prototypes: - Save Library: records the resource path of each palette material. A material made in the editor session has no resource path and cannot be recorded, so its slot is written empty and the status line says how many were left that way. Save the material to disk first if it has to survive the trip. - Load Library: restores the palette from the saved paths. A path the file names but the project cannot find keeps its slot as an empty one rather than shifting the rest, because FaceData.material_idx indexes that array; the status line says how many are missing. The load is a single undo step, so Ctrl+Z brings the old palette back. - Unused materials: not tracked. Material assignment is per face, through FaceData.material_idx, so "is this palette slot used" is a question about face slots rather than about a resource path.

Texture Folders

Add Texture Folder, in the Paint tab -> Materials -> Material Library beside Add, turns a folder of images into palette materials in one undo step (#1884). Pick a folder in the project, and every image in it ends up in the palette as a StandardMaterial3D: - Sets by name. Files that share a base name and end in a map's name are one material: brick_albedo.png, brick_normal.png and brick_roughness.png make one brick with all three maps set, and tile.png makes a tile with only its albedo. Case does not matter, and _, - or a space can come between the name and the suffix. - The suffixes. Albedo: albedo, basecolor, base_color, diffuse, diff, color, col, or none at all. Normal: normal, normalgl, nor_gl, nrm, nor. Roughness: roughness, rough. Metallic: metallic, metalness, metal. Ambient occlusion: ao, occlusion, ambientocclusion. A map a material has no use for, disp, displacement, height, bump, arm, spec, specular, gloss, glossiness, opacity or cavity, is read as part of its set and named in the report (#1960). - Pack names. A resolution or a format after the suffix, as in brick_wall_diff_2k.png or Bricks059_1K-PNG_Color.png, is passed over and kept in the name, so a pack's 2k and 4k sets of one texture are two materials. - Plain textures. A file whose name ends in a map word is an albedo when it is alone, as sheet_metal.png is in a folder with no sheet.png, or when its whole name begins a set, as sheet_metal.png does beside sheet_metal_normal.png. A normal map alone is left out. - DirectX normals. Godot reads OpenGL style normal maps. A file ending in normaldx or nor_dx is used as the normal map and named in the report, so its Normal Map Invert Y import setting can be turned on in the Import dock. A set with both takes the OpenGL one. - Saved as files. Each material is written as a .tres beside its textures, so it keeps a path through a save and the material library, as the prototype materials do. One whose .tres is there already is used again, not rebuilt, so a second run after adding three textures adds three materials. - A report. A toast says how many materials were made and how many reused, and names any file it could not place in a set: a second albedo for one name, or maps with no albedo beside them. It names the maps it does not use as well.

An image dragged from the FileSystem dock onto a brush face goes on the same way: the material of its set is made or reused, joins the palette, and paints the face, in one undo step. A dropped brick_albedo.png and a later Add Texture Folder on its folder end up as one material.

Prototype Textures

HammerForge includes 150 built-in SVG prototype textures organized as 15 patterns in 10 color variations. Click Refresh Prototypes in the Paint tab → Materials → Material Library to add them all to the palette. Remove Unused drops every slot no face is wearing and Clear empties the palette outright, both in one pass over the level rather than one pass per slot; a face whose material goes is unset and keeps its geometry. The Material Browser displays them as a visual thumbnail grid with search and pattern/color filters — no need to memorize names. Patterns include solid, brick, checker, cross, diamond, dots, hex, stripes (diagonal/horizontal), triangles, zigzag, and directional arrows (up/down/left/right).

The browser knows what the open level uses (#1725). A green dot marks each material a face uses, and its tooltip says how many, the texture's size in pixels and its file. The In Use view shows just those, the most used first. The search takes every word you type, in any order, in the name or the path, so brick red finds wall_brick_red_02. The slider beside them sizes the thumbnails from 48 to 192 pixels, and the size is kept with your preferences. Right-click a material for Select Faces Using This, which turns Face Select on with every face that wears it, and Select Brushes Using This; both leave out hidden and locked brushes. The counts are kept by the level and worked out again only when a face changes, so the browser stays quick on a large level.

For GDScript API usage, see docs/HammerForge_Prototype_Textures.md.

Pending Cuts Workflow

Cut brushes are staged as Pending Cuts until explicitly applied. This gives you a chance to preview, adjust, and batch your subtract operations before committing.

Applying cuts (three methods, all equivalent): 1. Context toolbar (recommended): When in Draw mode with pending cuts, the toolbar shows Apply / Commit / Clear buttons with a count badge. This is the fastest path — no tab switching needed. 2. Test tab → Actions: The Apply Cuts, Clear Pending Cuts, and Commit Cuts (Bake) buttons are always available. 3. Viewport context menu: Space → Apply Cuts (when in subtract context).

Apply Cuts records one Apply Pending Cuts undo step, just as applying cuts before a bake does. With nothing pending it leaves the history unchanged.

Button	Action
Apply	Move pending cuts to draft brushes (keeps them, doesn't bake)
Commit	Apply + Bake as one undoable transaction
Clear	Discard all pending cuts without applying

All cut buttons are disabled during active bakes to prevent race conditions. Commit does not consume a cut until its bake succeeds, and Undo/Redo restores both the editable brushes and the exact baked output, including its Full/Wireframe/Proxy preview mode.

A pending cut stays a cut: its Operation is read-only in the Inspector until it is applied. To make it a solid, apply it first, or delete it and draw a solid. It stays pending through Clip, Hollow and Merge too: the pieces wait in Pending Cuts, and a pending cut does not merge with one already applied (#1943).

Design Constraints (Summary)

• DraftBrush previews are lightweight. Final geometry comes from bake.
• Cut brushes are staged as Pending Cuts until applied.
• Floor paint is grid-based; heightmaps displace floors only.
• .map export/import is for blockouts. Export writes each face's texture name and UV numbers. Import brings both back, from any editor's file. The offset and scale are in texels, as other editors write them, so they are converted through the size of the palette texture with that name, or 64 pixels for a face with no texture. Neither carries the material itself, surface paint or sculpts.
• A .map world brush whose every face is named clip, common/clip or tools/toolsclip, in any case, imports as a func_clip. A func_clip exports into worldspawn with every face named clip, as Hammer and TrenchBroom write one, so export then import gives it back unchanged. One with a Physics Layer, a name or another property of its own goes out as a func_clip block instead, its faces still named clip, so it comes back with them.

For details, see docs/HammerForge_Design_Constraints.md.

Data Portability

• .hflevel is the source of truth for full-fidelity editing.
• .map exchange is limited to basic brushes and point entities.
• .glb export includes baked geometry only.

For full details, see docs/HammerForge_Data_Portability.md.

Install + Upgrade

For install steps, upgrade guidance, and cache reset help, see docs/HammerForge_Install_Upgrade.md.

Shortcut HUD

A single-row strip in the 3D viewport toolbar, next to the Console lamp. It updates with your current tool and mode, and shows the primary line for that context plus the grid size indicator; the full list for the context is on its tooltip. When a contextual hint is active it takes the row for the four seconds of its fade, because the toolbar is one row high.

Toggle it with Show HUD — in the Console's Controls tab, or in the dock under Test → Settings.

The contexts and what their full lists cover:

Context	Shortcuts Shown
Draw (idle)	Click+Drag, Shift/Alt modifiers, X/Y/Z axis lock, Ctrl+Scroll: Sides (N) for a pyramid or a round shape, Ctrl+D, Delete
Draw (dragging base)	Shift: Square, Alt+Shift: Cube, Hold Ctrl: Grid Snap Off/On, Click: Height stage, Right-click: Cancel. Live dimensions shown in banner
Draw (adjusting height)	Mouse: Change height, Hold Ctrl: Grid Snap Off/On, Click: Confirm, Right-click: Cancel. Live dimensions shown in banner
Select	Native click/Shift object selection; Face Select Shift-add/Ctrl-toggle; Escape, Delete, Ctrl+D, Arrow nudge, Ctrl+H Hollow, Shift+X Clip, Ctrl+Shift+F/C Floor/Ceiling
Extrude Up/Down (idle)	Click face + drag, Shift+Click face + drag to move the face, U/J tool switch, Right-click cancel
Extrude Up/Down (active)	Move mouse to set height, Release to confirm, Right-click cancel
Floor Paint	LMB paint, Alt erase, Shift axis lock, Ctrl/Cmd pick, X/Z mirror, Y raise, H room, Enter connector, Esc cancel; live cells/metres and ghosts
Surface Paint	Click+Drag paint, Alt+Drag erase, radius/strength info
Vertex Edit	Click vertex to select, drag to move, drag on empty space to box select, E: edge mode, Ctrl+W: merge, Ctrl+E: split, Del: delete corners, Alt+Click: add a corner, arrows: nudge corners, R: turn corners
Polygon Tool	Click to place verts, Shift: lock to axis, Enter: close, Escape: remove last
Path Tool	Click to place waypoints, Shift: lock to axis, Enter: finalize, Escape: remove last
Hull Tool	Click: point, double click a face: its corners, Shift drag a face: pull its corners out, Enter: make the brush, Backspace/RMB: take back, Escape: cancel

The HUD also shows current axis lock state (e.g. "[X Locked]"), and a grid indicator with the snap, plane axis and position (Grid: 0.5 Y 1.3). It flashes when the snap changes. Fractional snaps display exactly.

The full list is also available two other ways: the searchable shortcut dialog (? button in the dock toolbar) and the command palette (Ctrl+K).

Customizable Keyboard Shortcuts

All keyboard shortcuts are data-driven and can be customized. The default bindings match the shortcuts shown throughout this guide. Commands lists every command with its default key, what it needs selected and what it does (#1658).

Default bindings:

Action	Default Key	Description
Draw	D	Switch to Draw mode
Select	S	Switch to Select mode
Extrude Up	U	Switch to Extrude Up mode (E skipped in paint/vertex modes)
Extrude Down	J	Switch to Extrude Down mode (Shift+E skipped in paint/vertex modes)
Extrude Up (alt)	E	Extrude Up outside Paint and Vertex modes
Extrude Down (alt)	Shift+E	Extrude Down outside Paint and Vertex modes
Repeat Last Brush	Shift+D	Arm a stamp of the brush the last Draw made: each click places one
Toggle Solid / Cut	Q	Switch the drawing operation between Solid and Cut
Toggle Paint Mode	Shift+P	Turn Paint mode on or off
Quick Play	Ctrl+Enter	Bake and test the level
Validate Level	Ctrl+Shift+Enter	Check the level for issues
Delete	Del	Delete selected brushes and DraftEntities
Duplicate	Ctrl+D	Duplicate selected brushes and DraftEntities
Copy	Ctrl+C	Put the selection on the clipboard
Paste	Ctrl+V	Place what is on the clipboard, where it was copied from
Paste at Cursor	Ctrl+Alt+V	Place what is on the clipboard standing on the point under the cursor
Command Line	Shift+;	Type a command and its values on a line over the viewport
Group	Ctrl+G	Group selected brushes
Ungroup	Ctrl+U	Ungroup selection
Hollow	Ctrl+H	Convert brush to hollow room
Hide Selection	Alt+H	Hide the selection without a visgroup, until Show Hidden
Show Hidden	Shift+Alt+H	Show what Hide Selection and an isolate hid
Clip	Shift+X	Split brush along axis plane
Clip to Face Plane	Shift+Alt+X	Clip the selected brushes to the selected face plane
Create Structure	Ctrl+Shift+A	Open the structure builder
Run Trim Along Faces	Shift+Alt+T	Run a skirting or cornice along the wall faces picked in Face Select
Carve	Ctrl+Shift+R	Boolean-subtract from intersecting brushes
Merge Brushes	Ctrl+Shift+M	Merge the selected brushes
Intersect	Ctrl+Shift+I	Keep only the volume the selected brushes share
Save Selection as Prefab	Ctrl+Shift+P	Save the selected brushes and entities as a prefab
Cycle Prefab Variant	Ctrl+Shift+V	Switch the selected prefab instance to its next variant
Move to Floor	Ctrl+Shift+F	Snap to nearest surface below
Move to Ceiling	Ctrl+Shift+C	Snap to nearest surface above
Snap to Grid	Ctrl+B	Put each selected brush's bounds corner, or entity's origin, on the grid
Rotate CCW	R	Turn the selection counterclockwise
Rotate CW	Shift+R	Turn the selection clockwise
Flip Selection	Shift+M	Flip the selection
Mirror Copy	Alt+M	Keep the selection and add copies mirrored across the ticked axes
Shear	(palette)	Lean the selection: one side moves along an axis, the opposite side stays put
Reset Rotation	Alt+R	Return the selection to its unrotated orientation
Offset	Alt+G	Move the selection, its vertices or its faces by a typed X, Y, Z
Pick Pivot	Alt+P	Click a brush vertex, edge or face to turn and flip about
Clear Pivot	Shift+Alt+P	Go back to turning about the selection's centre
Paint Brush	B	Paint floor cells in Paint mode
Erase	E	Erase floor cells in Paint mode
Ramp / Rect	R	Paint a rectangular footprint in Paint mode
Line	L	Paint a line of floor cells
Bucket Fill	K	Fill a connected area of floor cells
Blend	N	Paint terrain blend weights
Raise Painted Walls	Y	Set wall height for the last Brush or Rect footprint
Toggle Paint Mirror X	X	Mirror painting across the grid X origin
Toggle Paint Mirror Z	Z	Mirror painting across the grid Z origin
Stamp Painted Room	H	Repeat the last Rect as floor and boundary walls
Confirm Paint Connector	Enter	Commit the live ramp or stair connector ghost
Vertex Edit	V	Enter or leave Vertex Edit mode
Edge Mode	E	Toggle vertex/edge sub-mode (in vertex mode)
Merge Vertices	Ctrl+W	Merge selected vertices to centroid
Split Edge	Ctrl+E	Insert midpoint on selected edge
Snap Vertices to Grid	Ctrl+B	Move the selected vertices to their nearest grid points (in vertex mode)
Texture Picker	T	Eyedropper: sample a face's material and its whole look, for Shift+T and Alt+T
Apply Last Texture	Shift+T	Apply last picked texture to selection
Apply Picked Look	Alt+T	Give the selected faces the last picked face's material and alignment
Apply Favorite 1	Alt+1	Apply favorite 1 of the context toolbar strip to the selected faces or brushes
Apply Favorite 2	Alt+2	Apply favorite 2 of the context toolbar strip to the selected faces or brushes
Apply Favorite 3	Alt+3	Apply favorite 3 of the context toolbar strip to the selected faces or brushes
Apply Favorite 4	Alt+4	Apply favorite 4 of the context toolbar strip to the selected faces or brushes
Apply Favorite 5	Alt+5	Apply favorite 5 of the context toolbar strip to the selected faces or brushes
Apply Favorite 6	Alt+6	Apply favorite 6 of the context toolbar strip to the selected faces or brushes
Apply Favorite 7	Alt+7	Apply favorite 7 of the context toolbar strip to the selected faces or brushes
Apply Favorite 8	Alt+8	Apply favorite 8 of the context toolbar strip to the selected faces or brushes
Apply Favorite 9	Alt+9	Apply favorite 9 of the context toolbar strip to the selected faces or brushes
Select All	A	Select all brushes and entities in view (clears face selection)
Deselect All	Shift+A	Deselect everything (brushes, entities, faces)
Select Similar	Shift+S	Select faces, brushes or entities similar to the selection, on what Selection Filters ticks
Selection Filters	Alt+F	Open selection filter popover
Grow Selection	Ctrl+]	Add the faces next to the selected faces, or the brushes touching the selected brushes
Shrink Selection	Ctrl+[	Drop the selected faces or brushes on the edge of the selection
Toggle Face X-ray	Alt+X	Let the face marquee take covered and back faces
Show Selection Size	Alt+D	Label the width, depth and height of the selection in the viewport
Lock X	X	Constrain the drawing to X
Lock Y	Y	Constrain the drawing to Y
Lock Z	Z	Constrain the drawing to Z
Draw on Face	L	Build a draw on the plane of the face it starts on (L is the Line tool while Paint is on)
Grid Increase	]	Double grid snap (max 512)
Grid Decrease	[	Halve grid snap (min 0.125)
Grid Up	Alt+PgUp	Raise the drawing plane one snap step
Grid Down	Alt+PgDn	Lower the drawing plane one snap step
Reset Grid	Alt+Home	Return the drawing plane to the level origin, square to the world
Align Grid to Selection	Alt+End	Use the selected face, vertices or brush top, and turn the floor grid to a picked edge or a turned brush
Context Menu	Space	Open the context menu at the cursor while idle
Radial Menu	`	Open the radial menu when Power-user overlays are on
Operation Replay Timeline	Ctrl+Shift+T	Show or hide the operation replay timeline when Power-user overlays are on
Invert Grid Snap (hold)	Ctrl	Held in a draw, vertex or resize handle drag: no grid snap with Grid on, grid snap with it off
Snap to Vertices (hold)	Alt	Held in a vertex or resize handle drag: land on another brush's vertex, as Vertex snap does
Sweep Select (hold)	I	Held at a Select tool press: drag across brushes, or faces in Face Select, to add each one passed over, or take them out when the first was selected (#1886)
Measure	M	Multi-ruler tool (persistent rulers, angles, snap ref)
Decal Tool	N	Place decal on surface with live preview. Decals live under the LevelRoot's Decals node, save with the level and undo like any other placement
Polygon Tool	P	Draw a polygon, extrude to brushes (a concave one splits into convex brushes)
Path Tool	;	Place waypoints, extrude corridor brushes
Clip Tool	C	Cut the selected brushes along a plane placed with two or three points
Hull Tool	(palette)	Click points or a face's corners and make one brush around them
Command palette	Shift+? / F1 / Ctrl+K	Searchable action palette with fuzzy search

Rebinding: Press the ? button on the toolbar to open the shortcut dialog, select a command and press Set Key, then the new chord (#1733). Every command the palette runs is listed and can take a key, not only those that ship with one; a command with no key shows "none". Set Second Key gives a command a second chord, and either one fires it; the surfaces that name a key show the first. A chord another command already uses is said before it is kept, with that command's name, and you swap the keys, take it off the other command, or cancel. A chord the editor or the palette takes ahead of every binding, such as Ctrl+S, can only be cancelled. Clear takes a command's keys off, Reset puts one back to its default and Reset All puts every key back. A change works at once, with no restart, and is written to user://hammerforge_keymap.json, the keys you changed and nothing else, so an action you left alone keeps picking up later changes to its default. Export... and Import... share that file with a team. The file can still be edited by hand: each entry maps an action name to {"keycode": "F", "ctrl": bool, "shift": bool, "alt": bool}, with an optional "second" chord in the same shape, or {"none": true} for no key, for example {"selection_filter": {"keycode": "G", "alt": true}}. An entry may also carry "args", the settings its key runs the command with: Extrude is one command with a Direction, so {"tool_extrude": {"keycode": "E", "args": {"direction": 1}}} makes E extrude down (#1867). A command the command line takes values for takes the same args from its key, and runs with them as the line runs it, on the selection with no question first: {"hollow": {"keycode": "H", "ctrl": true, "args": {"thickness": 0.5}}} makes Ctrl+H hollow with 0.5 m walls (#1997). Rotate CW and CCW take none. The old Extrude names, such as tool_extrude_down_alt, still work and run Extrude with their own direction. keycode is a key name as Godot spells it ("F", "Delete", "PageDown", "BracketLeft") or Godot's integer keycode; modifiers go in their own fields, not in the name. Restart the plugin after editing the file by hand. Every surface that names a chord — the viewport HUD, the coach marks, the dock tooltips, the hotkey palette and the shortcut list — reads the binding rather than repeating it, so a rebind shows up everywhere at once.

Extrude has two bindings each way. Extrude Up is U and Extrude Up (alt) is E; Extrude Down is J and Extrude Down (alt) is Shift+E. They are listed under their own names so you can tell which row you are changing.

An entry that is not a binding, one with no usable keycode, or a key that is not a HammerForge action is reported once on load, naming the file and the key, and the default is used for it.

Two actions that can fire in the same mode on the same chord are reported on load as well, naming both, because the input router tests actions one at a time and stops on the first hit -- so one of the two never fires. The shortcut dialog marks such a binding in amber and its tooltip says what else uses it. Sharing a chord across modes is fine and the defaults do it seven times: E is Extrude, Erase and Edge Mode, R is Rotate and Ramp, L is Draw on Face and Line, X and Z are axis locks and paint mirrors, Y is an axis lock and Raise Painted Walls, and Ctrl+B is Snap to Grid and Snap Vertices to Grid. The paint family only fires while paint mode is on and the vertex family only while vertex mode is on, and each is asked before the other actions while its mode is on, so those pairs never both answer. Eight actions answer in every mode, ahead of the paint keys: Toggle Solid / Cut, Toggle Paint Mode, Quick Play, Validate Level, Show Selection Size, Operation Replay Timeline, Context Menu and Radial Menu, so a paint or vertex key on one of their chords is reported. So is any binding on a key HammerForge takes ahead of every binding and you cannot move: the command palette's Shift+?, F1 and Ctrl+K (with any other modifier held as well), Escape, and the nudge keys, which are the arrows and PageUp/PageDown with Shift, Alt or Ctrl held or not, except Alt+PageUp/PageDown alone, which are Grid Up and Grid Down. And so is a binding on a key Godot's editor answers wherever the focus is, which HammerForge hands to Godot: Undo (Ctrl+Z), Redo (Ctrl+Y and Ctrl+Shift+Z), the scene keys Ctrl+S, Ctrl+N and Ctrl+O with their Shift and Alt forms, Close Scene (Ctrl+Shift+W), Quit (Ctrl+Q and Ctrl+Shift+Q) and the run keys F5 to F8 (#1617). Before, a typo in this file turned every keystroke in the viewport into an error that named hf_keymap.gd rather than the file you got wrong.

Toolbar labels and tooltips update automatically from the keymap, so custom bindings are always reflected in the UI. Press the ? button on the toolbar to open a searchable shortcut dialog showing all current keybindings grouped by category (Tools, Editing, Selection, Paint, Axis Lock), where a key can be changed as well.

User Preferences

HammerForge stores cross-session preferences in user://hammerforge_prefs.json, separate from per-level settings.

Preferences include: - Default grid snap size - Recent file list (up to 10) - Collapsed section states (which dock sections are expanded/collapsed) - HUD visibility, Size at cursor, Draw hover preview and Show selection size - Power-user overlays - Tutorial wizard visibility and progress step - Dismissed viewport contextual hints and coach marks - Favorite materials and the Recent row - Saved bake profiles - The UV Editor's Scale link and UV Snap step - The settings each tool, the Build tab and each structure type were last used with (Test → Settings → Reset Tool Settings clears them) - Overlay colours (Test → Settings → Colours), each kept as a hex string such as "#ffd133bf"; one that is not a colour falls back to its default with a warning - Motion (ui_motion): 0 follow the system, 1 animate, 2 reduce - Guides from points (snap_tracking) and Shift takes a guide point (snap_tracking_shift) - Show dimensions (show_dimensions)

Clipboard

Ctrl+C puts the selected brushes and entities on the clipboard. Ctrl+V places them, at the position they were copied from, and selects what it placed so the first drag moves the new piece rather than hunting for it.

The clipboard is a prefab without a name. It is the same capture a prefab gets, so a copied piece arrives with its entity wiring, its brush entity ties, and a record of what each material slot meant; pasting into a level with a different palette resolves those against the destination and appends anything it does not already hold. What a prefab has and the clipboard does not is a name, a place in the library, and a link back to its source: a pasted piece is geometry, not an instance that follows an asset when the asset changes.

Brush ids and brush entity ties are minted fresh on every paste, and each authored name gets one of its own with the pasted wiring following it, so pasting twice gives two pieces the level can tell apart. Visgroup membership is deliberately not carried, because a visgroup is a list of names registered per level and pasting into a level that has never heard of "West Wing" would otherwise put brushes in a visgroup with no row in the panel. Groups are carried the way Ctrl+D carries them: a group copied whole comes in as a group of its own, "House copy", with copies of the groups inside it. A copy of a member of an open group joins that group when pasted back into the level it came from, and is in no group anywhere else (#1897).

The buffer is a file in user://, not something the level holds, so it survives closing a level and restarting the editor, and a piece copied in one project can be pasted into another.

Paste at Cursor (Ctrl+Alt+V, or Paste Here in the viewport's Space menu) places the copied set with the bottom centre of its box on the snapped point under the cursor, on the surface there or on the grid, so a room copied from another level lands on the floor you are looking at rather than at its old coordinates (#1722).

Copy also puts the selection on the system clipboard as .map text, in the Quake family's units, as Export Map would write it: brushes as plane triples with their texture names and alignment, entities with their keys. Paste it into a message, a file of pieces or another editor. The other way, when the system clipboard holds .map text copied after HammerForge's last Copy, such as a snippet from a forum post, Ctrl+V and Paste at Cursor read it through the .map importer and place it at the cursor. A name the level already has gets one of its own, as on a paste from the buffer, and the pasted wires follow it (#1994). A line the importer cannot read is left out, and the message counts it. When the clipboard still holds HammerForge's own copy, the buffer is used, so paint, sculpts and structures survive a copy within HammerForge.

Where the keys work. In the 3D viewport, both. In the Scene tree, Ctrl+C is claimed when the selection is HammerForge's, because Godot's own node copy would put a DraftBrush on its clipboard that a later paste would rebuild outside the brush registry with the id it already had. Ctrl+V is deliberately not claimed there: it needs nothing selected, and taking it away from the Scene tree whenever a level is open would mean you could no longer paste an ordinary node. Paste from the command palette or a menu needs nothing selected either, so it places the clipboard with nothing or the LevelRoot selected (#1261).

Prefabs (Reusable Brush Groups)

Prefabs let you save a selection of brushes and entities as a reusable group and place copies anywhere in your level. The system supports variants, tags, live-linked instances, and visual debug overlays.

Saving a Prefab

1. Select the brushes and/or entities you want to save.
2. Open Test tab → Prefabs section.
3. Enter a name and click Save (or Save Linked to enable live propagation).
4. The prefab is saved as a .hfprefab JSON file in res://prefabs/. The name becomes a safe file name there, so a slash or a leading .. cannot put it anywhere else. If a prefab of that name already exists, you are asked before it is replaced.

Quick Save: Press Ctrl+Shift+P (rebindable, listed as Save Selection as Prefab in the shortcut dialog) or click Pfb in the context toolbar to instantly save the current selection as a prefab with an auto-generated name: a lone brush is named after its shape (cylinder), a lone entity after its type (light_point), and anything more after its count (3_brush_group, group_2_brushes_1_entities). It never replaces a file: a second box saved this way becomes box_2. Also available via the context toolbar in both brush and entity selected contexts.

Instantiating a Prefab

• Drag a prefab from the library list into the 3D viewport.
• Or select it in the library, point at the spot in the viewport and press Space: the menu offers Place Here, which puts it where a drop there would.
• The brushes and entities are placed at the drop position with new unique IDs.
• Every placed entity, brush or point, gets a name of its own in the level and a tie of its own, so two placed doors are two doors. The I/O between them is remapped to the new names; a wire aimed at something outside the prefab still aims at it.
• Each placed instance is tracked in the prefab system for variant cycling and propagation.
• Instance tracking covers brushes in DraftBrushes, PendingCuts, and CommittedCuts, plus point and tied brush entities. Source updates and removal warn when a recorded member is missing instead of silently leaving a partial instance.
• The operation supports undo/redo.

Prefab Variants

Prefabs can contain multiple variants (e.g., different door styles: wooden, metal, ornate).

• Adding a variant: Right-click a prefab in the library → Add Variant. Select the replacement geometry and name the variant.
• Cycling variants: Select a placed prefab instance and press Ctrl+Shift+V (rebindable, listed as Cycle Prefab Variant) or click Var▶ in the context toolbar. This cycles through all available variants in place. The copy keeps the names of its entities and brushes, so wires aimed at it still reach it.
• Removing a variant: Right-click a prefab in the library → Remove Variant, then pick the one to drop. The base variant is not offered, because a prefab without one is not a prefab.
• Variant indicator: The library list shows [N variants] next to prefabs that have multiple variants.

Live-Linked Prefabs

When you save a prefab with Save Linked, all placed instances of that prefab maintain a link to the source file. Ctrl+Z straight after unlinks the selection and leaves the .hfprefab file as written (#1276).

• Push to source: Edit a placed instance, then click Push in the context toolbar to update the .hfprefab source file with the current state.
• Propagate to all: Click Pull on any linked instance to propagate the current source file to all linked instances in the level. Each instance keeps its names, as a variant cycle does.
• The context toolbar shows a [linked] badge on linked prefab instances. Hover the badge to see how many copies of that prefab the level holds.
• Copies (Select Linked Copies in the palette) selects every copy of the selected copy's prefab in the level, and nothing else (#1734).
• Unlink (Unlink Prefab Copy) makes the selected copy ordinary brushes and entities, as one undo step. It keeps its look and names, and no later Pull, Push or variant switch touches it.
• Keep on this copy. A copy can differ where it must: a button wired to another door, a light in a darker room. Select a piece of a linked copy and each property in the Entity panel has a Keep box. A kept value stays on its piece through a Pull and a variant switch, and Push leaves it out of the prefab file, writing the prefab's own value back in its place. When another copy pushes the prefab without that piece, the next Pull lets the value go with it and says so (#1976). Keep wiring on this copy does the same for the piece's outputs, and Clear Kept keeps nothing again and takes the prefab's values. What a copy keeps is saved with the level, and each change to it is an undo step.
• Changed copies. A linked copy that differs from its prefab, outside what it keeps, shows [changed] in the badge. Hover it for the list of what changed. Push writes the changes into the prefab; Discard (Discard Prefab Changes) rebuilds the copy from its prefab as one undo step, keeping what it keeps. Names a copy gives its own entities, and wires between them, are not counted as changes.
• Duplicate keeps prefab link, in the Console's Controls and off by default, makes Ctrl+D of a whole linked copy place another linked copy, with what the copy keeps, instead of ordinary geometry. The new copy is made from the prefab, as a Pull would make it.

Tags and Search

• Adding tags: Right-click a prefab in the library → Edit Tags. Enter comma-separated tags (e.g., door, architecture, interior).
• Searching: Use the search bar at the top of the prefab library. Searches match both prefab names and tags.
• Tag filtering: Use the Tag dropdown to filter the list to prefabs with a specific tag.

Visual Debug Overlay

When hovering over a node that belongs to a prefab instance in the 3D viewport with the Select tool, a cyan wireframe bounding box appears around the entire instance.

What's Captured

• Brush geometry (shape, size, operation, material, transform relative to group centroid)
• Entity data (type, class, properties, I/O connections, transform relative to centroid). Each entity receives a stable unique ID on instantiation — entity membership is tracked by UID, not scene name, so renaming nodes or having duplicate names will not break prefab tracking.
• Brush IDs and group IDs are cleared on capture; new ones are assigned on instantiation.
• Tags (metadata for search/filtering)
• Variants (alternate brush/entity configurations stored alongside the base)

File Format

.hfprefab files are JSON with the same encoding as .hflevel (Vector3, Transform3D serialized via HFLevelIO). They support optional tags (string array) and variants (named alternate configurations) fields. They are portable and can be shared between projects.

These persist across editor restarts. Per-level settings (cordon, texture lock, materials) remain in .hflevel files.

Tool Availability (Poll System)

Some actions require specific conditions to run: - Hollow, Clip, Move to Floor/Ceiling require at least one brush selected. When nothing is selected, these buttons are grayed out with an inline hint ("Select a brush to use these tools") visible in the Selection Tools section. - Face-dependent controls (Assign to Selected Faces, UV editing) show "Enable Face Select Mode and click a face to edit" when no face is selected. - Extrude requires a LevelRoot in the scene. In extrude mode, a semi-transparent face highlight (green for up, red for down) previews which face you'll select before clicking. - External tools can define their own requirements via can_activate(). The registry asks before activating and reports get_poll_fail_reason() rather than making the tool active with nothing for it to do. - An active tool's own settings appear in a Tool Settings section on the Build tab, built from the tool's get_settings_schema(). The section is hidden while the active tool declares none. Each tool's settings are kept with your preferences under the tool's name, so the Polygon tool's Auto-close Dist and the height it last extruded to, every Path setting and the Decal's texture, size and fade come back as you left them.

HammerForge managed edits are scoped to the visible selection. With only native Godot nodes selected, a keyboard shortcut passes through to Godot. That includes the keys Godot's 3D editor binds as well, such as E (Rotate), Q, T, U and X/Y/Z, while no HammerForge drag is in progress and you are not in paint or vertex mode. With nothing selected they stay HammerForge's. A key HammerForge does handle is consumed, so Godot does not run its own shortcut on the same press. With only HammerForge brushes/entities selected, HammerForge owns it. If the selection mixes both domains, HammerForge stops managed operations such as duplicate, delete, group, hollow, nudge, clip, carve, merge, texture, prefab, and variant actions and shows “Edit HammerForge and Godot nodes separately”. The same rule is enforced by the context toolbar, viewport context menu, hotkey palette, and selection-dependent radial actions; their managed commands are hidden or disabled where possible and checked again when invoked. Deselect one domain before retrying. This prevents generic editor commands or stale UI state from bypassing HammerForge IDs, caches, or undo state.

Only one HammerForge editing tool owns mouse input at a time. Activating an external tool such as Polygon, Path, Measure, or Decal cancels an unfinished built-in gesture, exits conflicting vertex/paint state, and gives that tool exclusive HammerForge pointer handling until it is completed, cancelled, or another tool is chosen. A missed surface does not leak the same click into Draw, Select, Paint, or Vertex mode. Native viewport navigation still works whenever the active tool deliberately passes the event through.

The mode indicator banner always shows the current tool and gesture stage. The status bar shows selection count with a clear button.

Brush Creation (CAD style)

1) Base drag: click and drag to define the base. 2) Height stage: release mouse, move up/down, click to commit.

Modifier keys - Shift: square base. - Shift + Alt: cube. - Alt: height-only. - Ctrl (held): no grid snap for the corners and the height while Grid (G) is on, grid snap while it is off. - X/Y/Z: axis locks (shown in HUD as "[X Locked]" etc.). - Right-click: cancel.

Typed sizes - During the base drag, type a number for a square base, or width, depth and height with commas between them: 6,4 is 6 wide and 4 deep, and 6,4,3 is 3 high too. Tab moves on to the next value as a comma does. - Enter takes the base and goes on to the height stage. With a height typed as well, Enter places the brush with no height click. - Leave a value out and the mouse sets it: 6, holds the width at 6 while the depth follows the mouse. - A minus before a value turns that side the other way from the drag, so -6,4 goes 6 back along X. A minus before one number turns both sides. - A comma always moves on to the next value, so type a decimal with a point: 2.5. - The size beside the cursor shows W, D and H, with the value being typed in brackets: "W 6 D [4] H 2". - In the height stage and in an Extrude, a typed number is one value, and Enter or Tab applies it.

Before you click - With Draw idle, and with Polygon or Path before their first point, the face under the cursor is tinted by what a draw there starts on: blue for a face level with the grid, green for a flat face at another height, amber for a face that is not flat (the draw still starts flat, at the height you clicked), and violet for a face Draw on Face will build on. Over empty space no face is tinted. - A small cross marks the snapped point the draw starts from, on a face as on the grid, and the two grid lines through it brighten. The tint and the cross come from the same answer the click uses, so the draw starts where they show. - The preview goes when you change tool or start a drag. Turn it off with Draw hover preview in Test → Settings or the Console's Viewport group. It only looks again when the cursor or the view has moved.

Draw on Face (L, the On Face button beside the Snap row, or the command palette) - A draw that starts on a brush face lays its base on the face's plane, whichever way the face points, and the height stage pulls along the face's normal. A Solid grows out of the face and a Cutout into it, so a window is a Cutout dragged on the wall and pulled to the wall's depth. - On a face along the world axes the corners snap to the world grid and stay on the face. On a slanted face they snap in grid steps along the face's own axes, counted from where you clicked. - The brush is a box turned so its up is the face's normal, and undo and redo keep the turn. A draw on a wall or a slope leaves the drawing grid where it was; one on a floor moves it as an ordinary draw does. - Over empty space a draw is the ordinary flat one. The axis locks do not apply while drawing on a face.

General keyboard shortcuts - Delete: remove selected brushes and DraftEntities. - Ctrl+D: duplicate selected brushes and DraftEntities. A copy of a named entity takes the next free name (door_1 becomes door_2), because the authored name is the address I/O is aimed at and two entities cannot share one. The copy keeps its own outputs, so a duplicated button goes on firing at what the original fired at. Brush entities take a tie of their own as well, so a duplicated door is a second door rather than two more leaves of the first, and the same goes for each copy a Duplicate Array makes. - Arrow keys: nudge selected brushes and DraftEntities one grid step, along the world axis nearest the arrow's direction in the view you press it in (#1716). In Top view that is Up for -Z and Right for +X, as it always was. In Front view Up is +Y. In a perspective view Up and Down follow the camera's heading on the ground, snapped to the nearest axis, so facing +X makes Up +X. The shortcut row says where it went, as +Y 0.25 m. Arrows follow the view in the Console's Controls turns this off and brings back the fixed mapping. An unturned brush with a face on a grid line stays on it however many times it is nudged. - PageUp/PageDown: nudge selected brushes and DraftEntities (Y axis), in every view. - Shift+Arrow: duplicate the selection and move the copy one step that way, as one undo step. The copy is the selection after, so pressing it again makes the next copy from that one, and a row of columns is a key a column. Shift used to make no difference to an arrow. - Alt+Arrow, and Alt+Shift+PageUp/PageDown: nudge by a tenth of the grid step, for fitting the grid cannot reach. A tenth step is not put back on the grid. Alt+Shift+Arrow duplicates and moves a tenth. Alt+PageUp/PageDown alone moves the drawing plane (Grid Up / Grid Down). - Escape: clear selection. - Ctrl+Scroll: one more or one fewer Sides a notch, for a pyramid or a round shape, with Draw idle or partway through a draw. The brush being drawn takes the new count. On any other shape, and outside Draw, the wheel is Godot's (#1891). - [ / ]: halve / double grid snap size.

Extrude shortcuts - U: Extrude Up tool. - J: Extrude Down tool.

Group shortcuts - Ctrl+G: Group selected brushes/entities. - Ctrl+U: Ungroup selected brushes/entities.

Paint tool shortcuts (active when Paint Mode is enabled) - B: Brush tool. - E: Erase tool. - R: Rectangle tool. - L: Line tool. - K: Bucket fill tool.

Vertex Editing

Vertex mode lets you select and move individual brush vertices for precision geometry editing.

Entering Vertex Mode

Press V (keyboard shortcut or the V toggle button in the toolbar) to enter vertex mode. Selected brushes show their vertices as crosses and edges as wireframe lines.

Vertex Sub-Mode

• Vertex mode (default): click vertices to select them, drag to move.
• Edge mode (press E to toggle): click edges to select them. Selected edges highlight orange; hovered edges highlight yellow.

Dragging Vertices and Edges

An unlocked drag follows a view-facing plane through the vertex or edge midpoint you grabbed. This makes the point track the cursor predictably in perspective and in front, side, and top orthographic views instead of forcing every drag onto world Y. Grid snap is applied to the resulting world-space movement while Grid (G) is on; hold Ctrl to turn it the other way for the drag. With Vertex (V) on, or Alt held, a vertex drag lands on another brush's vertex near the cursor instead (see Snap Modes). An edge drag holds a midpoint, so it takes the grid only.

Use X, Y, or Z to constrain the drag to that world axis. HammerForge chooses a camera-facing projection plane that contains the locked axis. If the camera is looking exactly along that axis and the cursor cannot express a stable movement, the update is ignored rather than making the geometry jump. Losing LMB during a focus change cancels the unfinished drag and restores its captured geometry.

Edge Operations

• Split edge (Ctrl+E): select exactly one edge, then press Ctrl+E to insert a midpoint vertex. The two faces sharing the edge each gain the new vertex. Convexity is mathematically guaranteed.
• Merge vertices (Ctrl+W): select 2+ vertices, then press Ctrl+W to merge them to their centroid. Merging is rejected if it would break convexity. Every brush with two or more selected vertices merges, as one undo step; a brush that refuses says why and the rest still merge.
• Merge, Split and Clip to Convex are each one undo step whether you use the key, the vertex toolbar or the command palette.

Many Corners at Once

(#1713) - Shared corners move together. With several brushes selected, clicking a corner picks every selected brush's corner at that spot, within a millimetre, so the corner where four floor brushes meet moves as one and leaves no crack. Alt+Click picks just the one brush's corner, and Ctrl+Click takes a corner and its partners off the selection. - Box select. Drag from empty space, not over a brush, and every corner of the selected brushes inside the box is selected; in edge mode, every edge with both ends inside. Shift adds to the selection and Ctrl takes away. A press over a brush that is not on a corner still goes to Godot, which picks that brush to edit. - Delete removes the selected corners, or in edge mode the ends of the selected edges, and rebuilds each brush as the hull of what is left. A brush that would be left flat is refused with the reason, and nothing changes. - Add a corner. Alt+Click on a face of a selected brush adds a corner one grid step out from that face, so a click on a box's top gives it a pyramid top; with one brush selected, Alt+Click on the grid adds one there. A point inside the brush is refused. - Nudge. With corners selected, the arrow keys and Page Up and Down move them by the grid step, Alt for a tenth, along the axis nearest the view as brushes move. With none selected they move the brushes, as before. - Turn and scale. With corners selected, R and Shift+R turn them by the rotate step, about the picked pivot when there is one and about their middle otherwise, round the locked axis or Y. Scale Vertices... in the command palette asks for X, Y and Z factors and scales them the same way. Each is judged as a drag is: bent faces are cut flat and a dent is refused. - Each of these is one undo step, and the faces that survive keep their materials and UVs, as Clip to Convex keeps them.

Snap Vertices to Grid

Press Ctrl+B, or Snap in the vertex toolbar, to move each selected vertex to the grid point nearest it in world space. The result is checked as a drag is when you let go: a bent face is cut into flat pieces that fold outward, and a snap that would leave the brush non-convex, or put two of its vertices on one grid point, is refused with the reason and nothing moves. One press is one undo step, and vertices already on the grid add none. Outside vertex mode the same key snaps whole brushes (see Selection Tools).

Convexity Enforcement

All vertex operations validate that the brush remains convex. If a move or merge would create a concave shape, the operation is rejected and the brush reverts to its previous state. A merge is also rejected if it would leave the brush without a closed solid, which is what merging every vertex of a box would do. A move by an offset that is not a number is refused before any face is touched.

A vertex edit on a box or another primitive makes it Custom. Undo gives it back its shape, its size and its resize handles, as well as its faces.

Clip to Convex

If a brush has been deformed into a non-convex shape (e.g., by external editing or import), use the Convex button in the vertex edit context toolbar to recompute its convex hull. This: 1. Computes the convex hull of all brush vertices. 2. Rebuilds faces from the hull planes. 3. Inherits UV settings (projection, scale, offset, rotation, material) from the closest original face for each new hull face.

This is a fallback repair tool, not a modeling operation — it discards any concave geometry.

Shortcuts

Key	Action
V	Enter vertex mode
E	Toggle vertex/edge sub-mode
Ctrl+E	Split selected edge
Ctrl+W	Merge selected vertices
Ctrl+B	Snap selected vertices to the grid

Hull Tool

The Hull tool makes one brush around points you click, for a shape that is easier to click than to draw: a rock, an odd corner fill. Start it with Hull Tool in the command palette, or give it a key in the Shortcuts dialog.

• Click to drop a point on the face under the cursor, or on the grid where there is none. Points snap as a Draw start does.
• Double click a face to add all its corners.
• Hold Shift and drag a face to copy its corners out along its normal, held to the grid, so a face becomes a solid in one gesture.
• A green wireframe shows the hull of the points as they go.
• Enter makes the brush, as one undo step, with the Active Material. Backspace or a right click takes back the last click's points, and Escape lets them all go.
• Fewer than four points, or points all in one plane, hold no solid. Enter says so and keeps the points, so you can add another.

Polygon Tool

The polygon tool lets you draw any outline that does not cross itself and extrude it into brushes.

Workflow

1. Press P to activate the Polygon tool.
2. Click in the viewport to place the first vertex on the nearest exact visible surface. If no geometry is hit, placement uses the plane the grid is drawn on. The point passes through the shared Grid, Vertex, Center, Edge, Perpendicular, and reference-line snap pipeline. Until you click, the draw hover preview tints the face under the cursor and marks where the vertex will land.
3. Place more vertices. Each cursor ray starts on the horizontal plane established by the first point, then passes through the shared snap pipeline. Hold Shift to lock the edge from the last vertex to X or Z, whichever is nearer its direction; the vertex still snaps along that axis.
4. A vertex is taken wherever it lands, concave or not. A click that lands on a vertex already placed is rejected, because two vertices in one spot make a side face with no area.
5. Close the polygon by clicking near the first vertex (within the auto-close threshold) or pressing Enter (requires 3+ vertices). A polygon whose points are all on one line encloses nothing, so it is refused with a warning rather than extruded into a brush with no volume. An outline that crosses itself is refused with a toast and keeps its vertices, so you can take one back with Escape or right-click and close it again.
6. Move the mouse up/down to set the extrusion height, then click to confirm.
7. A convex outline makes one brush. A concave one (an L shaped room, a T junction, a notch for stairs) is split into convex brushes, all the same height and grouped so one click selects them all. Each cut runs between two inner corners, or carries on the line of a wall from an inner corner, so an outline drawn along the grid comes apart into rectangles. Either way it is one undo step.

Preview

During placement, a cyan outline shows the polygon shape. Each edge shows its length at its middle in the Measure tool's label style, with as many decimals as the grid step needs: placed edges in cyan, and the edge to the cursor and the closing edge back to the first vertex in yellow. When the outline is concave, orange lines show where it will be split. During height extrusion, green vertical edges and the top face outline appear, with the split lines across the top as well. The labels go when the brush is built or the polygon cancelled, and none is saved with the scene.

Settings

Setting	Default	Description
auto_close_threshold	1.5	Distance to first vertex that triggers auto-close

Shortcuts

Key	Action
P	Activate Polygon tool
Left-click	Place vertex / confirm height
Shift (held)	Lock the edge from the last vertex to X or Z
Enter	Close polygon (3+ verts) / confirm height
Escape / Right-click	Remove last vertex / cancel

Path Tool

The path tool creates corridors by placing waypoints and extruding a rectangular cross-section along the path.

Workflow

1. Press ; (semicolon) to activate the Path tool.
2. Click in the viewport to place the first waypoint on the nearest exact visible surface. If no geometry is hit, placement uses the plane the grid is drawn on. The point passes through the shared Grid, Vertex, Center, Edge, Perpendicular, and reference-line snap pipeline. Until you click, the draw hover preview tints the face under the cursor and marks where the waypoint will land.
3. Place more waypoints. Each cursor ray starts on the horizontal plane established by the first point, then passes through the shared snap pipeline. Hold Shift to lock the segment from the last waypoint to X or Z, whichever is nearer its direction; the waypoint still snaps along that axis.
4. Press Enter to finalize the path (requires 2+ waypoints), or, with 3+ placed, click the first waypoint again to close the loop and build it at once. A click closes it when it lands within snap distance of the first point: half a grid step, or the snap distance when that is larger.
5. Each segment becomes one brush. With Miter Joints on, its ends are cut on the plane that bisects the corner there, so the two brushes at a corner meet on one plane with no overlap and no extra brush; a closed loop gets this corner at its first point too. A corner sharper than about 29 degrees would send its outside tip out more than four widths, so the tip is cut flat there, square to the bisector. With Miter Joints off, every segment is a box with square ends.
6. All brushes are auto-grouped and created in a single undo action.

A segment too short for the mitres at its two ends, or a path that turns straight back on itself, is refused before anything is built: a toast names the segment (counted from the first point) or the point, and the waypoints stay so you can take one back with Escape or right-click, or narrow the path.

Side

Side in Tool Settings places the cross-section relative to the clicked line, looking the way the path runs: Centre straddles it, Left and Right stand wholly to that side, with one face on the line. To wall a room, trace the floor's edge and pick the side away from the room: clockwise seen from above that is Left, and every wall's inside face then lies on the line you clicked, so the room keeps the size it was drawn.

Curves

Set Curve to Smooth and the path runs through the clicked points as a curve instead of straight from one to the next: a centripetal Catmull-Rom curve, which never loops or doubles back between two points however unevenly they are spaced. An open path sets off from its first point straight at the second, and arrives at its last coming straight from the one before. Curve Segments (2 to 64, default 8) is how many straight pieces each span between two clicked points is cut into, so three points at 8 build 16 pieces.

Hold the left button down when you place a point and drag to pull out a tangent handle: the curve passes through that point heading along the handle, and a longer handle holds that heading further. The handle's end snaps as a point does, and Shift keeps it on the X or Z line through the point. A plain click, or a drag no further than the snap distance, keeps the Catmull-Rom tangent. A handle changes the curve's direction at its own point only; the curve still bends on the two spans that meet there, and nowhere else.

Each piece is one convex brush, cut at both ends on the plane that bisects the turn there, so neighbouring pieces meet face to face with no wedge and no overlap; Miter Joints does not apply, since a curve has no corner to leave square. A bend tighter than the path is wide can turn (tighter than half its width, for a path centred on the line) would turn a piece's inner edge inside out: the preview outlines every piece of that span in red, and Enter refuses the path with a toast naming the span ("the curve from point 1 to point 2"), building nothing. Stairs, Railings and Trim follow the curve, cut on the same planes.

Preview

During placement, a cyan polyline shows the clicked path, or on a smooth path the curve as it will be cut and every pulled-out handle, and the outline of each wall's footprint shows what will be built: to the chosen side, mitred at the corners, and on to the cursor. While the cursor would close the loop it settles on the first point, that point's marker turns green and the closed loop is outlined. When the path as it stands would be refused, what stops it is outlined in red: each segment too short for its mitres, or on a smooth path every piece of a span that bends too tightly. Each segment shows its length at its middle in the Measure tool's label style, with as many decimals as the grid step needs: placed segments in cyan, the segment to the cursor in yellow. The labels go when the path is built or cancelled, and none is saved with the scene.

Settings

Setting	Default	Description
path_width	4.0	Width of the corridor cross-section
path_height	4.0	Height of the corridor cross-section
path_side	Centre	Where the cross-section stands: Centre on the clicked line, or Left or Right of it
miter_joints	true	Cut each segment's ends on its corners' bisector planes; off, every segment is a box with square ends
path_curve	Off	Off runs straight from point to point; Smooth runs a curve through them
curve_segments	8	Pieces each span of a smooth path is cut into, 2 to 64
path_extra	None	Auto-generate extras: None, Stairs, Railing, or Trim
stair_step_height	0.25	Step height for auto-stairs (only when path_extra = Stairs)
railing_height	1.0	Railing height above path surface
railing_thickness	0.1	Thickness of railing rails and posts
railing_post_spacing	2.0	Distance between railing posts
trim_width	0.3	Width of edge trim strips
trim_height	0.15	Height of edge trim strips
trim_profile	Flat	Shape of the trim's section: Flat, Chamfer, Round, Cove, Ogee or Stepped
trim_segments	4	Pieces each curve of the profile is cut into, 1 to 16
trim_flip	false	Turn the profile upside down and hang it from the top of the path, for a cornice
trim_material_idx	0	Material index for trim faces

Every numeric setting is held to the range in the tool's schema wherever the value comes from, not only in the dock's spinbox: a width below the minimum or above the maximum is clamped to it, and a value that is not a number is refused and the previous one kept.

Auto-Generated Extras

When path_extra is set to a value other than None, additional geometry is auto-generated after the base path segments:

• Stairs: Step brushes along sloped path segments. Step count is derived from height difference / step height. Flat segments are skipped.
• Railings: Top rail + posts on both sides of the path. Posts are spaced evenly along each segment. Both rails and posts share the group ID with path segments.
• Trim: Edge strips run alongside both sides of the path. If trim_material_idx >= 0, all faces of trim brushes are assigned that material index.

Add Trim builds the trim as well as the Stairs or the Railings, from one path, each with its own settings: a corridor with a skirting and a stair, or a balcony with a rail and a cornice (#1629). With None it builds the trim alone, as Trim does. The treads run across the path and the trim along the outside of its edges; beside railings the trim stands out past the posts, which reach half their thickness over each edge, so nothing overlaps. The HUD says Auto: Stairs and Trim.

All three follow Side and run round a closed loop's last segment. Trim is cut on the walls' own corner planes, so it turns each corner with them; a trim strip too short for its mitres refuses the path the same way a wall does. On a straight path, stairs and railings are still square-ended boxes per segment, not mitred. On a smooth path they follow the curve: each rail is swept along it on the walls' planes, posts are spaced evenly along its whole length, and each span that climbs is cut into steps of one rise at equal lengths along the curve, a tread crossing several pieces being one brush on each, cut where it starts and stops.

Trim Profile shapes the trim's section, Trim Width out from the path's side by Trim Height up:

• Flat: the plain rectangle.
• Chamfer: the top outer edge cut off at 45 degrees, by half the smaller of width and height.
• Round: a bullnose, the top outer edge rounded as far as the strip allows.
• Cove: a quarter ellipse hollowed out of the outer corner, all the way out at the foot and in to the path's side at the top.
• Ogee: an S, hollow in the lower half and rounded in the upper.
• Stepped: three steps, each in from the one below by a third of the width.

A brush has to be convex, so a profile that is not is cut into horizontal bands, each bounded by the path's side, two levels and one piece of the profile, and each band is its own strip. Flat, Chamfer and Round are one strip a side of each segment; Cove is one a piece of its curve; Ogee's rounded half is one, with a piece of its hollow; Stepped is one a step. Trim Segments is the most pieces a curve is cut into: a band never comes out thinner than 1 cm, up or out, so a small trim or a fine setting can give fewer. The HUD shows how many strips Enter will build. Trim Flip turns the profile upside down and hangs it from the path's top, its top flush with the path's, for a cornice.

Preview lines during placement: green ticks for stairs, yellow for railings, orange for trim.

Shortcuts

Key	Action
;	Activate Path tool
Left-click	Place waypoint
Left-click the first waypoint	Close the loop and build it (3+ waypoints)
Left-drag while placing (Curve Smooth)	Pull out the point's tangent handle
Shift (held)	Lock the segment from the last waypoint to X or Z
Enter	Finalize path (2+ waypoints)
Escape / Right-click	Remove last waypoint / cancel

Visgroups (Visibility Groups)

Visgroups let you organize your map into logical groups and toggle their visibility.

1. Open the Test tab in the dock.
2. Type a name in the Visgroup field and click New to create a visgroup. The name is stored trimmed, and a name that is only spaces is refused — a visgroup that renders as a blank row cannot be picked out or described.
3. Select brushes/entities in the viewport, then click Add Sel to add them to the visgroup.
4. Click the visgroup name in the list to toggle between [V] (visible) and [H] (hidden).

Notes: - A node can belong to multiple visgroups. If ANY visgroup it belongs to is hidden, the node is hidden. - Nodes not in any visgroup are always visible. - Use Rem Sel to remove selected nodes from the visgroup, or Delete to remove the visgroup entirely. - Cast Shadows under the list sets how the highlighted visgroup's brushes cast shadows: Off for a sky shell, say. Level Default leaves it to the level. A brush's own Cast Shadows beats its visgroups', and when two of a brush's visgroups disagree, the one higher in the list wins and Check Bake Issues names the brush. Hover a visgroup to see its setting. Saved in the .hflevel and undone like any other edit (#1444). - Current makes the highlighted visgroup the one new work joins: a brush you draw, stamp or drop, an entity you place, a structure, and a prefab you place or paste, from the dock or over the bridge. The row says (current), and the viewport's shortcut row names it while you draw, as Click + Drag: Draw Base (into Upper floor), so nobody fills the wrong one. Untick it for none. It is a setting of the level, saved in the .hflevel and the scene, and not an undo step, so undoing an edit never changes where the next brush goes (#1732). - Leave out of bake keeps the highlighted visgroup in the editor only: guide brushes, a scale figure, a reference copy of a room being rebuilt. Its members stay visible and editable, and every bake skips them, the preview, Bake Changed and a full bake alike. A .map export leaves them out too, and so do Export Playtest Build, Export Game Scene and Test Level, entities and all. Each export says how many it left out (#1980). The row says (not baked) in a muted colour. Saved in the .hflevel and the scene, and undone like any other edit. - Use Rename to change a visgroup's name. Every member moves with it, so you do not have to rebuild the group, and so does its place in each saved view and in Previous (#1979). A name that is already taken is refused rather than merging the two visgroups, because merging is a different operation and one you should have to ask for by name. - Visgroups persist in .hflevel saves and undo/redo state.

Isolate, hide and step back

The row of buttons under the visgroup settings changes what is shown without changing the level (#1697):

• Isolate shows only the highlighted visgroup, or with none highlighted the visgroups the selection is in, and hides the rest, including what is in no visgroup. Isolate Sel shows only the selection. End Isolate puts back exactly what was shown before, a hidden visgroup still hidden.
• Hide Sel (Alt+H) hides the selected brushes and entities without making a visgroup, and takes them out of the selection. Show Hidden (Shift+Alt+H) brings them back, and ends an isolate too. These hides are not saved with the level, and a line under the buttons says how many are hidden while any are, so nothing is lost to a hide you forgot. With Bake Visible Only on, the bake leaves them out as it leaves out a hidden visgroup.
• Previous steps back to the visibility before the last show, hide, isolate or end, up to 20 times. It is kept apart from the undo history, so it never undoes an edit, and Ctrl+Z never undoes a visibility change. An undo leaves each visgroup's eye and lock, and each hidden brush, as they are now (#1981).
• Save View keeps which visgroups are shown now under a name, such as "Upper floor only" or "Lighting pass". Views lists them; Show puts one back and Delete forgets it. Views are saved in the .hflevel and the scene, and saving or deleting one is an undo step.
• The palette has Isolate Selection, Isolate Visgroups, End Isolate and Previous Visibility as well.
• Locked, beside Current and Leave out of bake, protects the highlighted visgroup's finished work. Its brushes are still drawn, faded a little, so new work lines up with them, but nothing selects or changes them: a click, a marquee or the Scene dock leaves them out of the selection, Face Select and Paint skip them, Replace Material passes them by, a Pull leaves a prefab copy with a locked piece as it is, and so do Discard, Clear Kept and a variant switch, saying why (#1977), and an agent is refused with locked. The row says (locked). Godot's own lock, the padlock in the Scene dock, does the same for one brush or entity. Locking and unlocking are view changes, kept with the level and stepped back by Previous, not undo steps.

View Filters

What gets in the way is often a kind of thing rather than a group: the triggers over a doorway, the clip brushes along a ledge, a light's gizmo everywhere. The View Filters section of the Manage tab has a tick for each kind: world brushes, cut brushes, clip brushes, triggers, brush entities, point entities, structures, prefab copies, decals, I/O wires, cordons and Hidden faces. Below them is a row for each brush entity class and each point entity class in the level. Untick a row to hide every one of that kind in the editor.

• A filter is a rule, not a list: a trigger placed after Triggers is unticked is hidden as it arrives.
• Visgroups still decide on top of it. Something shows only when its visgroups and its kind both let it.
• What a filter hides cannot be clicked or box selected, as a hidden visgroup's brushes cannot.
• Filters are the editor's view, like the camera. They are not saved with the level, so a teammate never opens it half hidden, and the bake ignores them: Visible Only bakes what visgroups show, as before.
• While any filter is on, the dock's footer says Filtered: 3 kinds. Click it, or Show All in the section, to show everything again.
• Each kind's toggle is a command in the palette, Show or Hide Triggers and so on, with no key of its own. Give one a key in the Shortcuts dialog to toggle that kind with one press.

Show Face Direction, in the palette with no key of its own, draws the front of every brush face blue and the back red, with nothing culled (#1869). Seen from outside, a face pointing into its brush is a red patch instead of a hole, so a hole you can see is told apart from a hidden face or a face left out of the bake. Run it again to go back. Like the filters it is the editor's view: never saved, and the bake ignores it. The two colours are Face Direction: front and Face Direction: back under Test > Settings > Colours.

Grouping

Groups let you persistently link brushes/entities so they select and move together.

1. Select the brushes/entities you want to group.
2. Press Ctrl+G (or click Group Sel in the Test tab → Visgroups & Groups section). It asks for a name, with one ready from what is selected, such as "Group of 6 brushes"; Enter takes it.
3. Click any member of the group -- all members are selected automatically.
4. Press Ctrl+U (or click Ungroup) to take the group apart.

Groups inside groups (#1723). Select a roof group and a wall group and press Ctrl+G, and the two go into the new group as groups: a click on any piece selects the whole house. Ungroup takes one level apart, so the roof and the walls are groups again.

Opening a group. Double click a group, or use Open Group in the palette or Open under the Groups list, to change its members one at a time without ungrouping it. Inside, a click selects one member, or one group inside it, and the rest of the level is drawn faded. Opening a group inside goes one level further in. Escape closes one level and selects the group it closed; a click on something outside closes it too.

The Groups list, under the group buttons, shows every group in the level, those inside another indented under it, each with how many it holds: "House (4)". A click on a row selects that group. Rename gives the highlighted group a new name (or use Rename Group in the palette), Open opens it, and Add Sel and Rem Sel put the selection in it or take it out without taking the rest apart. Add to Group and Remove from Group in the palette do the same for the highlighted group, or the open one.

Duplicates. Ctrl+D of a whole group makes a second group, "House copy", with copies of the groups inside it, so a click on the copy selects only the copies. Copying a member of an open group adds the copy to that group. Copy and Paste, Paste at Cursor and Mirror Copy follow the same rule, and a prefab keeps the groups it was saved with: a placed copy gets groups of its own, nested as they were, under their names or the next free one ("House 2") (#1897).

A selected group's name shows above it in the viewport.

Notes: - A brush or entity is in one group, which can be inside another. - Names and nesting persist in .hflevel saves, the scene and undo/redo state. A level saved before nesting opens with its groups as they were. - The open group is the editor's, not the level's: it is not saved, and opening or closing one is not an undo step.

Per-Face UV Controls

The Paint tab includes a UV Editor section for fine-tuning per-face UV settings:

Projection Mode

Select a UV projection mode from the dropdown: - Planar X/Y/Z: projects UVs along the specified axis, from where the face sits in the level. A wall built from several brushes textures as one surface, and Offset X/Y is measured from the world grid rather than from the brush. The axes are the ones Quake family editors use, so a texture stands the right way up on a wall. - Box UV: automatically picks the best axis per face (default for most workflows). - Cylindrical: wraps UVs around a cylinder (best for round shapes). This one is measured about the brush's own axis, so the texture does not turn when the brush moves. - Face: lays the texture in the face's own plane, U level along the face and V down its slope, so a ramp, a roof or a chamfer repeats over the same length a wall does. Box UV takes a slope as the wall or floor it leans towards and stretches the texture along it. A floor or a ceiling reads as Planar Y. It is taken from where the face sits in the level, so coplanar faces on separate brushes line up. A Valve 220 export writes the face's own axes and reads them back as Face; Classic Quake has no axes and writes the world ones.

Click Re-project UVs to recompute UVs using the selected projection mode (resets scale/offset/rotation).

A level made before textures stood the right way up keeps the look of every face you had aligned, painted or edited by hand, upside down on a wall as it was then. Faces you never touched turn the right way up. Re-project UVs puts an old face on the new axes.

UV Transform

When a face is selected, adjust its UV parameters with the spinboxes: - Scale X/Y: texture repeat scale (default 1.0). - Offset X/Y: texture offset in UV space. - Rotation: texture rotation in degrees.

Changes are live-previewed and fully undoable. Rapid spinbox changes merge into a single undo step.

A box typed in goes to every face in the face selection, and only that box: typing a scale for twenty faces sets it on all twenty and leaves each one's offset and rotation as they were. With no face selected it goes to the face on show. A box the selected faces disagree on shows mixed instead of one face's number; typing in it sets all of them.

Slide and turn with the keys. In Face Select, with faces selected, the arrow keys move their texture instead of nudging objects: - An arrow slides each selected face's texture one grid step the way the arrow points on screen, worked out from that face's own U and V, so a wall seen from the side and a floor seen from above both follow the arrow. Alt makes it a tenth of the step. - Shift with Left or Right turns the texture 15 degrees about the middle of each face, Shift+Alt 1 degree, and Shift with Up or Down a quarter turn. - A face seen edge on, or on the Cylindrical projection, is left as it was, and the HUD says how many. - The HUD lists the keys with their steps, and a quick run of presses is one undo step.

These buttons edit every face in the face selection too, as one undo step: - x2 and /2 beside Scale double or halve U and V. Each axis keeps its sign, so a mirrored face stays mirrored, and the offset stays where it is, so faces that lined up still line up. /2 stops at 0.01 and x2 at 100, the range of the boxes. - Link between the two Scale boxes: while it is on, typing one box sets the other to the same size, each keeping its sign. It is kept in user://hammerforge_prefs.json. - Flip U, Flip V and Rotate 90 under Rotate mirror the texture or turn it a quarter about the middle of the face, so it does not jump. Two flips, or four quarter turns, put the face back. - Fit U and Fit V in the Justify grid fit one repeat across the face's width or height and scale the other axis by the same amount, so the texture keeps its aspect: Fit V on a wall four times as long as it is high gives one repeat top to bottom and four along. - Align to Face and Align to World, under the Justify grid, put every selected face on the Face projection or on Box UV, keeping its scale, offset and rotation. - Align to Edge turns each face's texture so U runs along one of the face's edges, with the top of the texture toward the middle of the face and a repeat starting at the edge: brick courses parallel to a roof slope or a clipped diagonal wall, at whatever angle the edge runs. Press it again to step to the next edge round the face. From the face's right-click menu (UV Operations > Align to Edge) it takes the edge nearest the cursor. - Repeats with Fit shows exactly that many whole repeats across (the first box) and down (the second), ending at both edges of each face, so a pattern ends cleanly at a wall's corners. A count of 0 keeps the texture's aspect from the other axis. Step the count with the box's arrows and press Fit again. - Strip k of N with Fit divides the texture into N equal strips across V, as a trim sheet holds them, and fits strip k to each face, stretched once along U. The strips count down from the top of the texture.

Wrap

Wrap carries a texture over an edge. Select the face whose texture is placed, press Wrap, then click a face that shares an edge with it, on the same brush or a touching one. The clicked face takes the material and the scale, and its offset, rotation and the sign of its scale are worked out so the texture runs on across the edge; it then becomes the face the next click carries from, so clicks walk round a pillar or along a corridor. Each click is one undo step. A face that shares no edge is refused with a toast. On a slope Box UV measures the edge short, so the scale along it is changed to meet the edge and the toast says so. Esc or a right click ends it. It has no key; the command palette lists it as Wrap Texture.

Linked Surfaces

Link, beside Treat as One, makes the selected faces one surface: they share one mapping, the projection, scale, rotation and offset, and an edit to any of them is an edit to all. Moving, resizing, turning, clipping, hollowing or vertex editing a brush with a linked face keeps the surface's mapping on it instead of Texture Lock's shift, and a surface last justified with Fit, Fit U, Fit V or Tile is fitted again across all its faces. Justify on any linked face justifies the whole surface. Linking a face to a surface, or duplicating a brush with linked faces, extends the surface with no seam. Unlink takes the selected faces out, each showing what it showed, and Select Group selects every face linked with the selected one. Links are saved in .hflevel and scenes and kept by undo.

Smoothing Groups

Smoothing, under Rotate, puts every face in the face selection in a smoothing group, as one undo step. A face in group 0 shades flat, with its own normal. Faces in the same group above 0 that meet at a corner shade with the average of their normals there, across brushes and whatever they are painted with, so a ring of flat faces reads as round. Only the shading changes: the corners stay where they are, so collision, Validate and every tool see the same convex brush.

• A new cylinder or cone puts its sides in group 1 and its caps in 0. A new sphere, ellipsoid, capsule or torus is in group 1 all over. Arch and dome structures put the faces on their curve in group 1, so the segments bake as one curve. A brush made before smoothing groups keeps shading flat until its faces are given a group.
• A face keeps its group through a resize, a sides change, Clip, Carve, Merge and Flip. The face a Clip or a Carve makes is flat, so a cut through a round brush stays a sharp edge. Hollow gives each wall inside the group of the face it lies behind, so a cylinder hollows into a tube that is round inside and out.
• Two brushes in the same group shade into each other where they meet. Put one in another group to keep the edge between them: a cone roof on a round tower, say.
• The face bake, the CSG bake a cut switches to, and Bake Selected shade a brush the same way. A textured brush's preview shows its faces shaded as they bake, across a join with another brush in the same group too, so an arch's segments read as one curve before the bake (#1625). Move one away and both sides of the old join go back to a plain edge. An untextured round brush previews as Godot's own round shape.
• The group is saved with the scene and in .hflevel. A .map has nowhere to put it, so an exported face shades flat in another editor.
• A sculpted face (Displacement) shades with its own normals whatever its group, in the preview as in the bake.
• When a cut moves the bake onto the CSG path, every round brush goes into the cut as its own faces, the segments and the ring it shows, smoothed or not, so a cut does not change a sphere's or a cylinder's shape (#1596).

UV Editor canvas

The canvas shows the face's albedo texture under its UV outline, once per repeat and dimmed, and follows Scale, Offset and Rotate. A face with no texture, or with a shader material, keeps a blank canvas.

UV Snap, under the canvas, is on by default: a dragged corner lands on the nearest multiple of the step on each axis, chosen from 1/32, 1/16, 1/8, 1/4, 1/2 and 1 UV unit or typed. Hold Ctrl (Cmd on macOS) while dragging to place a corner freely. A corner drag is one undo step. A click, or a drag that ends where it began, records nothing, and a right click or Escape during the drag puts the corner back. While snapping is on, grid lines are drawn at the step, stronger at each whole repeat, and lines closer than 4 pixels apart are left out. The step and the checkbox are kept in user://hammerforge_prefs.json.

Material Browser Integration

Right-click a material thumbnail in the Material Browser and choose Apply + Re-project (Box UV) to assign the material and reset UV projection in one step.

Texture Lock

When Texture Lock is enabled, moving or resizing a brush automatically adjusts its face UVs so textures stay aligned.

1. Check Texture Lock in the Build tab (enabled by default).
2. Move or resize brushes normally -- UV alignment is preserved.
3. Uncheck to disable (UVs will shift with transforms as before).

Notes: - Works with PLANAR_X, PLANAR_Y, PLANAR_Z, BOX_UV and FACE projections. - A linked face keeps its surface's mapping instead. See Linked Surfaces. - CYLINDRICAL projection is not compensated (complex; future enhancement). - Applies to HammerForge move, nudge, floor/ceiling, resize and rotate actions. Godot's native Node3D transform widget leaves the brush's face UV resources unchanged so native undo/redo remains truthful, which means a brush moved with that widget behaves as though Texture Lock were off. - On a rotation, a face is compensated when the turn keeps its projection plane where it is. A face that turns out from under its own projection is left alone, so its texture travels with the brush rather than tipping. - Persists in .hflevel settings.

Cordon (Partial Bake)

The cordon restricts bake output to one or more boxes, useful for iterating on part of a large map. The bake takes every brush that touches any cordon, so two rooms at opposite ends of a level bake without the space between them.

1. Open the Test tab in the dock.
2. Check Enable Cordon to activate.
3. Set the min/max coordinates with the spinboxes, or select brushes and click Set from Selection.
4. To cordon another area as well, select its brushes and click Add from Selection. The new cordon joins the list and the others stay where they are.
5. Pick a cordon from the list to edit it. The spinboxes and Set from Selection work on the cordon you picked. Remove takes it out. The last cordon cannot be removed: turn the cordon off instead.
6. Type a name for the picked cordon so the list says which room it is. Uncheck Bake to keep a cordon for later without baking it; the list marks it "(off)".
7. A yellow wireframe shows every cordon in the viewport. A cordon that is off is drawn dimmer.
8. Bake. Only brushes that touch a cordon that is on are included, with the cutters that cut them. A brush whose face lies on a cordon's face touches it.

Notes: - Enable Cordon switches every cordon at once. Disable it to bake the entire map. With every cordon's Bake unchecked, the entire map bakes too. - Set from Selection and Add from Selection turn the cordon they fit on. - Every cordon edit in the dock can be undone with Ctrl+Z, Remove included. Dragging a spinbox is one step. - An agent on the Agent Bridge lists and sets cordons too (hf_get_cordons, hf_set_cordon, hf_remove_cordon). Each of its edits is one MCP: ... step, and the list follows it. Its hf_bake with cordons: true bakes only what the cordons switched on take, as Bake does. - Every cordon, with its name and its Bake switch, is saved in the scene and in .hflevel saves. A build from before multiple cordons reads the first cordon only, and drops the others the next time it saves.

Extrude (Up / Down)

The Extrude tools let you extend an existing brush by clicking one of its faces and dragging to create a new brush.

1. Press U (Extrude Up) or J (Extrude Down), or click the toolbar buttons.
2. Move the mouse over brush faces -- a semi-transparent hover highlight shows which face you'll select (green for up, red for down).
3. Click on a brush face -- a semi-transparent preview appears.
4. Drag the mouse vertically to set the extrude height (grid-snapped), or type a depth and press Enter or Tab to place the brush exactly that deep, off the grid if you like. The mode indicator shows "Extruding..." with the number you type, and the preview holds that depth until you Backspace it away. A depth of 0 or past 256 is refused with a toast and the extrude carries on.
5. Release the mouse to commit the new brush.

Notes - Extrude Up shows a green preview; Extrude Down shows a red preview. - The new brush inherits the source brush's material. - A rectangular face makes a standard DraftBrush (box), as wide and as long as the face, even when the face is narrower than the grid (#1122). It works with Bake, materials, and undo/redo. - On a slope or a round side the box is turned to lie on the face, as wide and as long as the face and the height you drag off it (#1107). - Any other face, such as a round cap or a triangle, makes a prism of its own outline, the way Hammer and TrenchBroom extrude (#1123). - Right-click cancels the extrude in progress.

Move a face instead. Hold Shift as you press on a face and the drag moves that face along its own normal rather than making a brush off it (#1712). It works on any brush: a box grows or shrinks along that axis and stays a box with its resize handles, and a clipped, carved, vertex edited, merged, Polygon or Path brush is rebuilt with its neighbouring faces lengthened or shortened to meet the moved one, so it stays one convex solid. A sloped face moves along its slope. Dragging up moves the face out and down moves it in, with Extrude Down the other way round. The distance snaps to the grid along the normal, or to where a corner of the face lands on a grid plane, which is what puts a sloped face down cleanly; a typed depth moves it exactly that far. When other brushes are selected along with the one you press on, and a face of theirs lies in the same plane, they move together, so a wall of three brushes gets thicker as one. A drag that would turn a brush inside out, flatten it or squeeze one of its faces out stops at the last distance that holds, and the mode indicator says why. Each face keeps its material and how its texture lies. One undo step puts it all back, and Right-click or Escape cancels.

Floor Paint

1. Press Shift+P to enable Paint mode.
2. Press R and LMB-drag a rectangle in the viewport for a first walkable room. No dock interaction is required.
3. Continue with B Brush, E Erase, L Line, K Bucket, or N Blend. Open the Paint tab only when you need shape, radius, layer, heightmap, or terrain settings.
4. After a Brush or Rect stroke, press Y, move vertically, and click to set wall height for that footprint. Press H to stamp another room using the last Rect dimensions.

Notes - Alt+LMB temporarily erases without changing the selected tool. - Shift+LMB-drag locks the stroke to its first dominant grid axis. - Ctrl/Cmd+LMB samples the cell material for Blend without creating an undo entry. - Esc restores a cancelled stroke. Plain RMB remains Godot camera navigation. - X/Z toggle grid-origin mirror axes. They are off by default; mirrored copies and the source are one undo entry. - The Y height gesture is a clearly chained second undo after the paint stroke. Esc restores its prior heights. - Painting next to a different-Y layer shows a connector ghost. Enter commits it in one undo; Esc dismisses it. Confirmed connectors persist and bake even with automatic detection off. - Inference cleanup is off by default. When enabled, it only removes isolated one-cell noise, fills one-cell cardinal holes/gaps, and widens inferred one-cell corridors inside the stroke-local dirty scope. Erase strokes are untouched, and a stroke of a single cell is left alone - one click is a deliberate cell, not noise. - The viewport banner shows the hovered cell and footprint, then live unique-cell count and metres while a stroke is active. - Footprint, raise, and connector ghosts are transient and disappear on completion or Esc without rebuilding an entire layer. - Each changed stroke is one Paint Floor undo entry; a no-op or material pick is not. - Brush Shape: Square fills a full box of cells; Circle clips corners using Euclidean distance. - Live preview updates while dragging. - Bucket fills a contiguous region (click filled to erase). - Generated geometry appears under LevelRoot/Generated. - Generated flat floors/walls are DraftBrush nodes and are included in Bake.

Region Streaming (Large Worlds)

Region streaming keeps large paint grids responsive by loading only nearby regions. 1. Enable Streaming in the Paint tab → Regions section. 2. Set Region Size (cells, 64 to 4096) and Stream Radius (regions, 0 to 8). Region Size is the divisor that turns a cell index into a region coordinate, so a region as large as the world defeats streaming: the neighbourhood the streamer keeps resident is then a handful of enormous regions, and the memory budget cannot be met because there is nothing smaller than one region to evict. The memory budget is held between 32 MB and 8192 MB for the same reason. 3. Toggle Show Region Grid to visualize loaded regions. 4. Paint normally; regions auto-load around the cursor.

Notes - Streaming a region out writes it to disk first, so a level that has never been saved has nowhere to put one and nothing can be reclaimed. The eviction pass says so rather than leaving the budget quietly ignored. - Region data is saved to .hfr files in <level>.hfregions/. A save under a new name, or an autosave to a path of its own, copies the files of the regions streamed out at the time into the new folder, so the level it writes opens with all its paint (#1665). - Removing a paint layer leaves its paint in the region files that held it, so undoing the removal, or reading a region streamed out at the time, still finds it. Its id is never given to a new layer, so that paint never turns up on another one. Region files therefore keep growing across layer removals (#1664). - The .hflevel stores a region index and layer settings.

Heightmap Terrain

Heightmaps add vertical displacement to painted floors: 1. Paint cells on a layer using Brush/Rect/Line/Bucket. 2. Click Import to load a PNG/EXR heightmap, or Generate for procedural noise. 3. Adjust Height Scale to control displacement amplitude. It has a small floor, because a scale of zero multiplies every height by nothing and reads as the terrain having gone. 4. Adjust Layer Y to set the base height of the layer. Below the grid origin is fine; both fields take a number and nothing else.

When a layer has a heightmap, its floors are generated as displaced MeshInstance3D nodes (not DraftBrush). These live under Generated/HeightmapFloors and are baked directly (bypassing CSG) with trimesh collision shapes.

Material Blending

The Blend tool paints per-cell material blend weights on filled cells: 1. Fill cells first (Brush/Rect/etc.). 2. Switch to the Blend tool. 3. Choose a Blend Slot (B/C/D). 4. Adjust Blend Strength (0.0-1.0) in the dock. 5. Paint over filled cells to set blend weights.

Blend weights drive a four-slot shader (hf_blend.gdshader). Slot A is the implicit base, while slots B/C/D are controlled by the blend map (RGB) sampled on the UV2 channel.

Terrain slots: - Use Slot A-D texture pickers to assign textures for the terrain blend shader. - Slot Scale controls per-slot UV tiling.

Face Materials and UVs

1. Open the Paint tab → Materials section.
2. Open Material Library and click Refresh Prototypes to load all 150 built-in textures, or click Add to load a custom material resource (example: materials/test_mat.tres).
3. Browse the visual thumbnail grid — use search, pattern dropdown, or color swatches to filter.
4. Click a thumbnail to select a material. Hover to preview it on selected faces.
5. Enable Face Select Mode.
6. Use the Select tool and click faces in the viewport. Each picked face is tinted orange and outlined.
7. Click Assign to Selected Faces, or right-click the thumbnail → "Apply to Selected Faces".
8. Press T to use the Texture Picker: click any face to sample its material and its look, then Shift+T gives the selection the material and Alt+T the whole look.

UV editing: - Open the Paint tab → Face Tools → UV Editor section after selecting a face. - Drag UV points to edit. - Use Reset Projected UVs to regenerate UVs from projection.

Notes: - Face data is stored per DraftBrush face. - Materials and UVs persist in .hflevel saves.

Hidden faces

Most faces of a block out are never seen: the underside of a floor, the outside of a sealed room, the back of a wall built against another. They still cost triangles, draw calls and lightmap. Mark them Hidden and the bake leaves them out of the mesh, the lightmap and the occluders, while they still bound their brush, so a floor stays solid and a wall stays a wall.

• The Hidden swatch is the striped square at the end of the Material Browser's colour row, so it is there whatever the view. Click it to make the selected faces Hidden, or drag it onto a face. A Hidden face wears dark and amber stripes in the editor, so it never reads as a material.
• The face keeps its material under the stripes. Apply a material to show the face again, or run Make Faces Normal from the palette to show it in the material it had. Make Faces Hidden is in the palette too.
• T on a Hidden face picks Hidden, and Alt+T then makes the selected faces Hidden. A resize, a clip, a duplicate and Wrap carry it with the texture. A cut's new face is never Hidden, since it is surface the cut opened.
• Hide Faces Against Solids in the palette finds every face of the selected brushes, or of the selected faces, that lies flat against another solid brush and is wholly covered by it. It picks them to show which, asks, and makes them Hidden as one undo step. A face only partly covered, or one against a cut, a trigger or a door, is left alone.
• Validate adds an Info row for a brush with a Hidden face that has open space right in front of it: a hint that it may be seen, not a fault in the count.
• After a bake the Console says how many Hidden faces it left out and their area, such as Bake left out 12 Hidden faces, 48.0 square metres of mesh and lightmap.
• Hidden faces in View Filters hides the stripes. The faces are still there to click, as faces.
• Hidden faces are saved in the .hflevel and the scene, and a .map export names them skip.

Surface Paint (3D)

1. Enable Paint Mode.
2. Open the Paint tab → Surface Paint section and set Paint Target = Surface (if needed).
3. Pick a layer and assign a texture.
4. Paint in the viewport.

Notes: - Hold Alt as you press to erase: the stroke takes paint off at the strength it would put it on. Right-click stays Godot's camera look. - Each stroke, press to release, is one undo step, so Ctrl+Z takes back exactly the stroke you just made. - Radius is in UV space (0.0 to 1.0). - Surface paint updates the DraftBrush preview immediately. - Surface paint is separate from floor paint layers. - If paint affects the floor, set Paint Target = Surface in the Surface Paint section.

Displacement Surfaces

Displacement surfaces turn a flat quad face into a subdivided terrain grid that you can sculpt interactively, similar to Source Engine displacements.

Creating a Displacement

1. On the Paint tab, turn on Face Select Mode.
2. Click a quad face (exactly 4 vertices).
3. On the same tab, open Face Tools → Displacement.
4. Set Power (2 = 5x5, 3 = 9x9, 4 = 17x17 vertices).
5. Click Create. The face becomes a subdivided grid.

Painting (Sculpting)

1. On the Paint tab, open Face Tools → Displacement.
2. Turn Paint mode on in the toolbar. This closes Face Select; sculpting needs no picked face.
3. Choose a Paint Mode: Raise, Lower, Smooth or Noise. There is no Alpha mode yet: a displaced face cannot blend two materials. Alpha values in a level saved before 25 October 2026 are kept.
4. Set Radius and Strength.
5. Click and drag on a displaced face in the viewport to sculpt. The stroke sculpts the face it starts on.

With Displacement or Face Tools closed, a drag in Paint mode paints the floor or surface instead. Paint uses a circular brush with quadratic falloff. Strokes are continuous — the entire stroke commits as a single undo action when you release the mouse button.

Settings

• Elevation: global height scale multiplier for the displacement grid.
• Power: subdivision level. Set the spin and click Apply to change an existing displacement; the old grid is resampled into the new one by bilinear interpolation, so the sculpt survives. Create reads the same spin for a new displacement.
• Sew Group: integer group ID. Click Sew to snap shared boundary vertices between adjacent displacements in the same sew group.

Sew moves each vertex along its face normal. Where adjacent faces meet at an angle, the seam returns to its unsculpted position so both faces meet exactly. This also applies to shallow creases, where it can remove a sculpt along the seam.

Destroying a Displacement

Click Destroy to revert a displaced face back to a flat quad.

Notes: - Displacement requires a quad face (4 vertices). Triangles and N-gons are not supported. - A sculpt is saved with the scene (Ctrl+S) and in .hflevel saves. A scene saved before October 2026 lost its sculpts. Load .hflevel brings them back from a .hflevel saved after the sculpt was made. - The baker generates per-vertex normals for displaced faces (smooth shading). - Flip mirrors the sculpt with its brush. See Flip under Rotating and Mirroring. - Resizing a box or another primitive stretches the sculpt with its face and keeps it on the corners it was made against. That includes a box flipped by an older build, whose faces can start at a different corner. - Clip, Carve and Hollow keep a sculpt on every four-cornered piece of its face, on the same surface. See Cutting: Clip and Carve.

Bevel and Face Inset

Edge Bevel (Chamfer)

Replace a sharp edge with a rounded profile: 1. Enter Vertex mode (V key) and switch to Edge sub-mode (E key). 2. Select one or more edges. 3. Open the Build tab → More build settings → Bevel section. 4. Set Segments (1-16) and Radius (distance the bevel cuts into the brush). The radius has to be greater than zero; 0 or below is refused rather than treated as a very small bevel. 5. Click Bevel Edge.

The selected edges are replaced with bevel strip faces. Higher segment counts produce smoother curves.

Face Inset

Shrink a face inward and create connecting side faces: 1. On the Paint tab, select a face in Face Select Mode. 2. On the same tab, open Face Tools → Face Inset. 3. Set Inset (distance to shrink inward) and optional Height (extrude along normal). A positive height raises the face into a boss; a negative one pushes it in to make a recessed panel. 4. Click Inset Face.

Notes: - Inset distance has to be greater than zero and cannot exceed the face's corner-to-centroid distance (the operation is rejected with a toast if too large). - Both bevel and inset operations are fully undoable. - An inset's walls take the face's look: its material and how its texture is laid, offset and turn included. A ring at no height shades with the face; a raised or sunk wall, and a bevel's end cap, shade flat (#1934). - A sculpted face keeps its sculpt where it was. A bevel trims the sculpt on each face that loses a corner, and a flat inset trims it onto the inset and onto each face of the ring around it. A raised or sunk inset takes the sculpt with it, and its ring of new wall is flat (#870).

Entities (early)

• Place nodes under LevelRoot/Entities or set meta is_entity = true.
• Entities are selectable and excluded from bake.
• Entity palette supports drag-and-drop placement.

Entity definitions live in res://addons/hammerforge/entities.json, overlaid by res://hammerforge_entities.json when present.

Example (billboard preview):

{
  "light_point": {
    "class": "OmniLight3D",
    "preview": {
      "type": "billboard",
      "path": "res://addons/hammerforge/icon.png",
      "color": "#ffff00"
    },
    "outputs": [],
    "inputs": ["TurnOn", "TurnOff", "Toggle"],
    "properties": [
      {"name": "range", "type": "float", "default": 10.0, "maps_to": "omni_range"},
      {"name": "energy", "type": "float", "default": 1.0, "maps_to": "light_energy"},
      {"name": "color", "type": "color", "default": "#ffffff", "maps_to": "light_color"}
    ]
  }
}

class is the Godot node class the entity stands for. Test Level and both exports build that node in place of the editor's marker, so a light_point placed in the level is a real OmniLight3D at runtime, and a level that lights itself does not get the fallback PlaytestSun. A definition naming a plain Node3D still exports the marker, because there is nothing better to build.

scene takes precedence over class and names a PackedScene to instantiate instead — a working door, a trigger volume with a script, a pickup. Its root can be any node, as a class can, and a Node3D root takes the marker's place in the level. A scene that is missing or does not build warns and exports the marker, so a wrong definition never costs you the level. The viewport only previews a scene whose root is a Node3D, and shows the marker for any other.

maps_to is optional and names the property on the built node to receive the value, for the cases where the name a level stores and the name the engine uses differ. An OmniLight3D's Range is omni_range. Without maps_to the declared name is used as it stands. A property the level stores no value for, such as one a class gained after the level was saved, gets its default, which is also what the inspector shows. The entity's authored name, its wiring, and every other piece of metadata move onto the built node, so I/O keeps working. outputs and inputs are the names an entity class fires and the names it answers to. The quick-wire form offers them in a dropdown beside each free-text box: the source entity's outputs in Out, and the inputs of whatever is chosen in To in In. The boxes stay free text, because a mapper may wire to a name no definition declares. What changes is that the vocabulary the built-in presets use is discoverable from the entity rather than only from the presets.

presets names sets of property values, such as a light's Warm Ceiling. The Entity panel and the palette both offer them, and a value for a property the class does not declare is left out with a warning. A property may also carry a tooltip, shown on its label and control in the Entity panel.

Point and spot lights have Shadows and Projector. A projector is a texture that shapes the light, like a grate or a window frame; three plain ones ship in addons/hammerforge/projectors/. A projector only shows through a light that casts shadows, so the export turns shadows on for a light that has one. It works in the Forward+ and Mobile renderers, and the Compatibility renderer ignores it.

Preview type is one of billboard (with path to a texture), mesh (with path to a mesh), capsule (radius, height) or box (size as [x, y, z]). All of them take color, and the shaped ones take alpha. box is the proxy that needs no asset.

Custom Tools (Plugin API)

A project's own editor tools go in res://hammerforge_tools/, outside the addon. That is deliberate: the upgrade instructions say to replace addons/hammerforge with the new version, so anything kept under it is deleted by a documented upgrade. The folder ships with a README.md and a complete example under examples/.

A tool is a .gd file that extends HFEditorTool and returns a tool_id() of 100 or above — IDs below 100 are the built-ins (0 = Draw, 1 = Select, 2 = Extrude Up, 3 = Extrude Down), and a tool claiming one is refused with a warning and freed. Tools are scanned once, at editor launch, so restart the editor after adding one. The scan is not recursive, which is why the shipped example sits in examples/ and does not appear in your toolbar until you copy it up a level.

res://addons/hammerforge/tools/ is still scanned, but only so an existing install does not lose anything. Do not put new work there.

Override only what you use: can_activate() / get_poll_fail_reason() to refuse and say why, activate() / deactivate() to take and give back whatever the tool holds, handle_input() / handle_keyboard() returning EditorPlugin.AFTER_GUI_INPUT_STOP to consume an event, and get_shortcut_hud_lines() for the viewport HUD. snap_point(pos) lands a point where a draw would, through the level's snap settings. A tool that changes the level has to go through the undo_redo the registry hands it, or the change is not undoable.

Bake Output

Bake creates BakedGeometry: - If chunked baking is enabled, it adds BakedChunk_x_y_z nodes. - Collision shape type depends on Collision Mode (Inspector property on LevelRoot): - Mode 0 (default): Each chunk has a MeshInstance3D and StaticBody3D with one ConcavePolygonShape3D (trimesh) per material surface, and the surface names in its hf_surface_names metadata. - Mode 1: Each chunk has a StaticBody3D containing one ConvexPolygonShape3D per brush (convex hulls), or per piece of a brush a cut goes through. Better for physics broadphase and navmesh generation. - Mode 2: Each visgroup gets its own StaticBody3D with convex hulls for all its member brushes. Ungrouped brushes share a default body. Best for room-based physics partitioning and bot navigation. - Stairs and Spiral Stairs with Collision set to Ramp bake their slope instead of their steps' collision: a RampCollision StaticBody3D with one ConvexPolygonShape3D per flight, landing or tread and no mesh, or in Mode 2 the shapes in their visgroup's body (#1416).

Brushes whose Cast Shadows or Lightmap Scale differ bake into meshes of their own, BakedMesh_0, BakedMesh_1 and on, with one collision body between them as before. On the CSG path each set of brushes is a CSG pass of its own with every cut in it, so a cut carves every one of them; where a brush of one set meets a brush of another, both keep their faces, as on the per-face path (#1444, #1438).

Generated flat floor paint brushes are included in the CSG bake. Heightmap floor meshes are duplicated directly into the baked output with trimesh collision shapes (they bypass CSG since they are already ArrayMesh). Heightmap collision is appended after visgroup partitioning (mode 2), so heightmap shapes are always preserved.

Use Face Materials (optional): - Bakes each face with its own material, with no CSG pass, when the level has no effective structural cuts. Which path is faster depends on the level: on separate boxes the CSG path measured faster (593 ms against 848 ms at 3,000 brushes), and on boxes that touch their neighbours the face material path did (648 ms against 899 ms). It hands the editor a frame every 8 brushes, and CSG two frames in all. Performance has the tables. - Pending, applied, or frozen cut brushes automatically use the CSG-safe path instead, preserving the cut in both rendered geometry and collision. - Bakes cooperatively (yields every 8 brushes) so the editor stays responsive on large levels.

Save/Load (.hflevel)

• Save .hflevel stores brushes, entities, settings, materials palette, face data, and paint layers.
• Paint layer data includes per-chunk material_ids, blend_weights (+ _2/_3), optional heightmap_b64, height_scale, and terrain slot settings.
• Load .hflevel restores them. Missing heightmap/material fields default to zero (backward-compatible).
• A file whose shape cannot be read leaves the open level exactly as it was and reports why, rather than clearing it first. A single brush or entity in an otherwise good file that cannot be read is skipped, the rest loads, and the count of what was skipped is reported.
• Autosave can write to a configurable path.
• The timed autosave waits for a pause in editing. When its timer comes round during a drag, a resize, an extrude, a vertex or gizmo drag, a marquee, a paint stroke, or a Polygon, Path or other tool with points placed, it waits until that ends and nothing has changed for 2 seconds. It never waits longer than twice the interval, so a session that never pauses is still saved. A level that has not changed since the last autosave is not saved again (#1736).
• The .hflevel records the scene it was saved from, a .tscn or a .scn. Switch a big level to .scn with Scene > Save Scene As...: with autosave on, the level autosaves at once so the file names the new scene. With autosave off, press Save Level once after (Data Portability).

When the editor crashes

A crash of the Godot editor takes HammerForge with it, and a plugin cannot stop that. What HammerForge does is keep enough to see what happened. The autosave is what keeps your work.

• A journal for each session. While the editor runs, HammerForge writes how far start up got, one line for each undo step (its name, the brush count and the level's autosave file) and one for each agent bridge call (the tool, and its error code when it failed) to user://hammerforge/journal/<process id>.jsonl. Each line is written to disk as it happens. It keeps the last 200 lines. A clean close deletes the file.
• The next start notices. A journal whose editor is no longer running was left by a session that died. HammerForge turns it into a folder under user://hammerforge/crashes/, named for the date and time, and the Console's Status tab shows Did not close cleanly first, with the last step it saw. The Log tab says where the folder is.
• What the folder holds. report.json: the HammerForge and Godot versions, the system, the graphics adapter and renderer, where start up got to, and the last step and bridge call. journal.jsonl: the journal. levels/: a copy of the newest autosave of each level the journal names. A level copy over 20 MB is left out, and report.json names it.
• Godot's own output. The editor keeps no log file; Godot's file logging covers a running game. What the engine prints as it goes down reaches only the terminal the editor was started from. To keep it, start the editor from one with its output sent to a file, such as godot --editor --path . > editor.log 2>&1.
• The buttons. Open Folder shows the folder. Copy Report puts report.json and the journal's last 20 lines on the clipboard, ready to paste into an issue. Dismiss hides the row and leaves the folder.
• Repeats. A crash whose last five journal lines match an earlier report adds one to that report's count instead of making a new folder.
• Limits. 10 reports, 50 MB in all, none older than 90 days. The oldest go first.
• Nothing leaves your machine. Sending a report is up to you.

In the editor, user:// is the project's own data folder: on Windows %APPDATA%\Godot\app_userdata\<project name>. Two editors open on two projects each keep their own journals, and a journal whose editor is still running is never taken.

To try it, start the editor with the environment variable HAMMERFORGE_CRASH_TEST set. The Status tab gains a Crash test row whose End Editor button stops the editor at once, as a crash would. Start the editor again and the report is there.

Troubleshooting

Find what you see in the Symptom column, then the row whose cause fits. One symptom can have more than one row. The Status board in the HammerForge Console checks several of these causes for you.

Setup

Symptom	Cause	Fix
No HammerForge dock, and no HammerForge in the main-screen switcher	The plugin is not enabled.	Enable HammerForge in Project → Project Settings → Plugins. See Install HammerForge.
The plugin turns itself off as you enable it, with script errors from addons/hammerforge in the Output panel	The editor is older than Godot 4.7, which HammerForge needs.	Open the project in Godot 4.7 or newer. See Requirements.
The same errors, or no dock, just after you copied the plugin in or upgraded it	Godot's editor cache in .godot/editor still describes the old files.	Close Godot, delete .godot/editor, reopen the project and enable the plugin again. See Cache Reset.
HammerForge is in the switcher, but its dock is not on screen	The dock is a tab in the upper-left dock, beside Scene, and another tab is in front of it. A saved editor layout can also have moved it.	Click the HammerForge tab. If there is none, the Cache Reset deletes the saved layout too, and the dock comes back in its own place.
A Draw click selects instead of drawing, and a toast says the scene has no HammerForge level	The scene has nodes in it and no LevelRoot. A Draw click makes one only in a new, empty 3D scene.	Click Create Starter or Create Empty in the dock's banner. See LevelRoot.

Building

Symptom	Cause	Fix
A brush outline follows the mouse, but no brush is made	Draw takes two clicks. The drag sets the base, then the brush waits for its height.	Move the mouse to set the height and click again. Right-click cancels. See Brush Creation.
A click on a face selects the whole brush	Face Select Mode is off.	Tick Face Select Mode in Paint → Materials. See Face Materials and UVs.
Face Select turns itself off, and the picked faces are gone	Leaving the Paint tab, choosing another tool, entering Vertex mode or selecting a node in the Scene tree closes Face Select. Closing it clears the picked faces.	Go back to Paint and tick Face Select Mode again. See Viewport Mouse Controls.
Bevel Edge asks for vertex/edge mode, or for an edge	The brush is not in Vertex mode, or no edge is picked.	Select the brush, press V, then E for edges, and click an edge. See Edge Bevel.
Bevel Edge says the bevel failed	The edge is not shared by exactly two faces of the brush.	Pick an edge where two faces meet.
The bevel is narrower than the Radius you set	A radius wider than half the shorter of the two faces is capped to that, with a warning in the Output panel. Any wider and the bevel would eat through those faces.	Nothing is wrong. For a wider bevel, make the brush larger first.
Inset Face says "Select a face first", or Create under Displacement says "Select a quad face first"	No face is picked. Face Select is off, or something closed it, which clears the picked faces.	On the Paint tab, tick Face Select Mode, click the face, then use Face Tools on the same tab. See Face Inset and Creating a Displacement.
Inset Face says the inset failed	The Inset distance reaches the middle of the face from one of its corners.	Use a smaller Inset. See Face Inset.
Create under Displacement says it needs a quad face with no displacement on it	The face does not have exactly four corners. Triangles and faces with more corners cannot take a displacement.	Pick a four-cornered face. See Creating a Displacement.
Create under Displacement says it needs a quad face with no displacement on it	The face has a displacement already. Create refuses rather than wipe the sculpt on it.	Use Destroy first to start over. Destroy can be undone.
Dragging on a displaced face does not sculpt	Paint mode is off. Face Select turns it off.	Turn Paint mode on in the toolbar. That closes Face Select, and the stroke sculpts the displaced face it starts on, with no pick needed.
Dragging on a displaced face does not sculpt	The Displacement section, or Face Tools around it on the Paint tab, is collapsed.	Expand both. See Painting (Sculpting).
Dragging on a face does not sculpt	The face has no displacement.	Pick it in Face Select and click Create under Displacement first.

Paint and materials

Symptom	Cause	Fix
Painted cells stay flat, with no heightmap floor	The active layer has no heightmap.	With that layer active, click Import... or Generate Noise in Paint → Heightmap. See Heightmap Terrain.
A heightmap is imported or generated, but no floor appears	No cells are painted on the layer. A heightmap shapes painted cells only.	Paint the cells with Brush, Rect, Line or Bucket.
Blend strokes change nothing on the floor	The layer has no heightmap. Blend weights are drawn by a heightmap floor's blend shader, and a layer without a heightmap is built from plain brushes.	Give the layer a heightmap, as above. See Material Blending.
A heightmap floor shows only Slot A	No blend weights are painted, so its blend map is all zero. The Blend tool skips cells that are not painted.	Paint the cells first, then go over them with the Blend tool (N) at a Strength above 0.
The floor shows plain colours, not textures	No texture is set for the slots, so each slot shows its own colour.	Click Texture... beside Slot A to Slot D in Paint → Blend & Terrain.
Faces bake grey after Load Library, and the status line says some materials are missing	The library names a material file the project no longer has. Its palette slot loads empty.	Put the file back at the path the library names and load again, or give those faces another material. See Material Library.

Bake and test

Symptom	Cause	Fix
A cut brush cuts nothing in the viewport	The viewport draws each brush as you drew it. Only a bake makes the cut, and a bake from the dock leaves the brushes on screen over it.	Tick Cut Preview in Test → Settings to see the cut as you build. Test Level bakes and plays with the cut in place. See Cut Preview.
A cut brush cuts nothing in Test Level	It does not overlap a solid brush.	Move it into the brush it should cut. Check Bake Issues in Test → Advanced Bake lists it as a floating subtract, and Select on its row picks it. See Bake Issue Detection.
A cut brush leaves a heightmap floor whole	The bake adds heightmap floors after the brushes are cut, so no brush cuts them.	Erase the cells under the cut, or shape the floor with the Sculpt buttons in Paint → Heightmap. See Bake Output.
